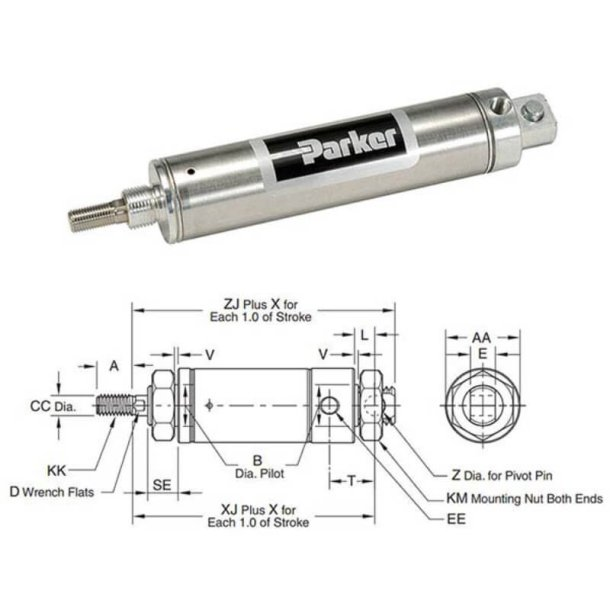

PARKER 1.75PSR04.63 Pneumatic Cylinder
4.63"
Get it by Tuesday, Sep 1
€165.04 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylinder |
| Ambient Air Temp. | -10°F to +165°F |
| Ambient Air Temp. For Operation | -10°F to +165°F |
| Application Type | General Industry Assembly Conveyors Packaging |
| Bore Size | 1 3/4" |
| Chemical Resistance | Corrosion Resistance |
| Connection Type | 1/4" NPT Threaded Pneumatic Port 1/2"-20 UNF Male Threaded Rod End , 1/4" NPT Threaded Pneumatic Port 1/2"-20 UNF Male Threaded Rod-End |
| Design | "Lipseal" Piston Aluminium Head And Cap Non-Repairable |
| Dia. | 1/2" |
| Function | Single-Acting (Spring-Return) Stainless Steel Pneumatic Cylinder |
| Main Function | Pneumatic Cylinder |
| Material | 304 Stainless Steel Cylinder Body Aluminium Piston Oil Impregnated Bronze Rod Bushing Steel Rod |
| Max. Air Service Pressure | 250 psig |
| Mounting | Pivot Mounting |
| Mounting Mode | Pivot Mounting |
| Pressure | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) |
| Shape | Cylindrical |
| Stroke Length | 4.63" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Stroke Length | Mounting | Mounting Type | Mounting Style | Stroke | Single Acting/double Acting | Cylinder Action | Spring Retraction Force | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 1.75DSR01.00 | 1" | - | Nose | Nose | 1" | Double Acting | Double Acting | Not Applicable | €105.50 | |
| 1.75DSR02.00 | 2" | - | Nose | Nose | 2" | Double Acting | Double Acting | Not Applicable | €106.46 | |
| 1.75DSR03.00 | 3" | - | Nose | Nose | 3" | Double Acting | Double Acting | Not Applicable | €116.52 | |
| 1.75DSR04.00 | 4" | - | Nose | Nose | 4" | Double Acting | Double Acting | Not Applicable | €120.16 | |
| 1.75DSR05.00 | 5" | - | Nose | Nose | 5" | Double Acting | Double Acting | Not Applicable | €120.62 | |
| 1.75DSR06.00 | 6" | - | Nose | Nose | 6" | Double Acting | Double Acting | Not Applicable | €129.96 | |
| 1.75DXPSR01.00 | 1" | - | Nose, Pivot | Nose, Pivot | 1" | Double Acting | Double Acting | Not Applicable | €124.61 |
