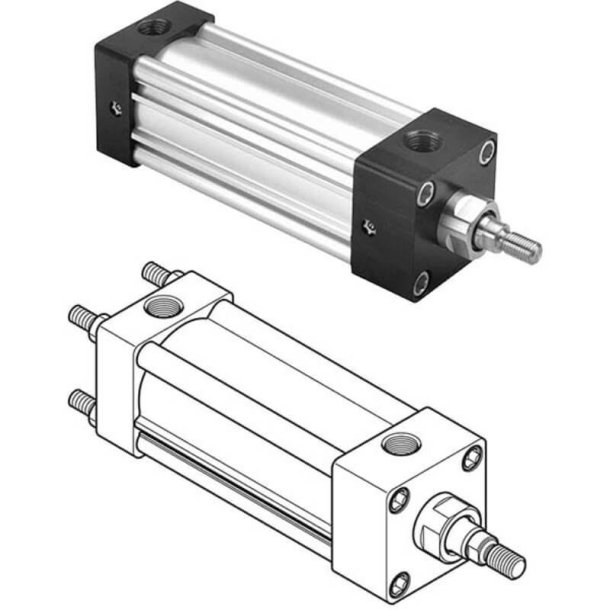

PARKER 1.50TC4MA1U14A22.00 Pneumatic Cylinder
22"
Get it by Tuesday, Aug 25
€435.99 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylinder |
| Ambient Air Temp. | -10°F to +165°F |
| Ambient Air Temp. For Operation | -10°F to +165°F |
| Application Type | General Industry Conveyors Assembly Packaging |
| Bore Size | 1 1/2" |
| Chemical Resistance | Corrosion Resistance |
| Connection Type | 2 X 3/8" NPT Threaded Pneumatic Ports 7/16"-20 UNF Male Small Threaded Rod-End |
| Design | "Lipseal" Piston Small Male Rod-End Thread NFPA Interchangeable Model Repairable |
| Dia. | 5/8" |
| Function | Double Acting Non Lube NFPA Tie Rod Pneumatic Cylinder |
| Main Function | Pneumatic Cylinder |
| Material | Anodized Aluminium Cylinder Body Aluminium Piston With Nylon Wear Band Composite Piston Bearing Bronze Gland Bronze Rod Bearing Hard Chrome-Plated Carbon Steel Piston Rod |
| Max. Air Service Pressure | 250 psig |
| Mounting | Tie-Rods Extended Cap End Mounting (NFPA MX2) |
| Mounting Mode | Tie Rods Extended Cap End Mounting (NFPA MX2) |
| Pressure | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) |
| Shape | Rectangular |
| Stroke Length | 22" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Stroke Length | Mounting | Dia. | Rod End Thread | Rod End Style | Piston No. | Max. Air Service Pressure | Bore Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1.50CBE4MA1U14AC08.00 | - | - | - | - | - | - | - | - | - | RFQ
|
 |
1.50F4MA1U18A20.00 | 20" | Side Tap Mounting (NFPA MS4) | 5/8" | - | - | - | 250 psig | 1 1/2" | €411.15 | |
 |
1.50CTEF4MA2U16AC14.00 | 14" | Sleeve Nut With Side Tap Mounting (NFPA MX5, MS4) | 5/8" | - | - | - | 250 psig | 1 1/2" | €447.57 | |
 |
1.50CJ4MA1U14AC05.00 | 5" | Head Rectangular Flange Mounting (NFPA MF1) | 5/8" | - | - | - | 250 psig | 1 1/2" | €396.09 | |
 |
1.50F4MA1U14AC06.00 | 6" | Side Tap Mounting (NFPA MS4) | 5/8" | - | - | - | 250 psig | 1 1/2" | €335.48 | |
 |
1.50H4MA2U19A01.25 | 1 1/4" | Cap Rectangular Flange Mounting (NFPA MF2) | 5/8" | - | - | - | 250 psig | 1 1/2" | €282.87 | |
 |
1.50BB4MA2UV14A04.00 | 4" | Cap Fixed Clevis Mounting (NFPA MP1) | 5/8" | - | - | - | 250 psig | 1 1/2" | €391.98 |
