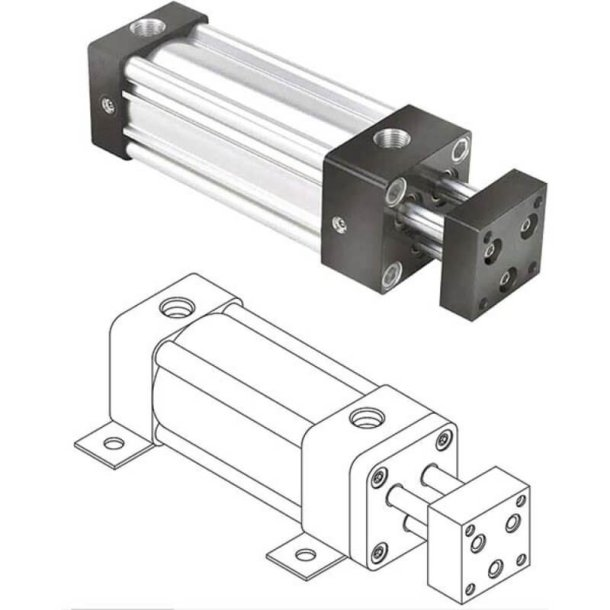

PARKER 1.50NB2MNR3UT9A03.00 Pneumatic Cylinder
Get it by Thursday, Aug 20
€1,338.47 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylinder |
| Ambient Air Temp. | -10°F to +165°F |
| Ambient Air Temp. For Operation | -10°F to +165°F |
| Application Type | General Industry Conveyors Packaging Assembly |
| Bore Size | 1 1/2" |
| Connection Type | 2 X 1/4" NPT Threaded Pneumatic Ports Rod-End Equipped With Standard Tooling Plate |
| Design | Piston Magnet Rod-End Tooling Plate NFPA Interchangeable Model Repairable |
| Dia. | 8 mm |
| Function | Double-Acting Non-Rotating NFPA Triple-piston Tie-Rod Pneumatic Cylinder |
| Main Function | Pneumatic Cylinder |
| Material | Anodized Aluminium Cylinder Body Aluminium Piston With Nylon Wear Band Cold-Rolled Carbon Steel Tooling Plate Lubricated Sintered-Bronze Rod Bearing Hard Chrome-Plated And Polished Carbon Steel Rod |
| Max. Air Service Pressure | 250 psig |
| Mounting | Base Bar Mounting (Non-Nfpa Style) |
| Mounting Mode | Base Bar Mounting Non NFPA Style |
| Pressure | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) |
| Shape | Rectangular |
| Stroke Length | 3" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Stroke Length | Mounting | Max. Air Service Pressure | Dia. | Bore Size | Pressure | Shape | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
1.50CH2MNR3UT9AC01.75 | 1 3/4" | Cap Rectangular Flange Mounting (NFPA MF2) | 250 psig | 8 mm | 1 1/2" | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Rectangular | €1,663.21 | |
 |
1.50H2MNR3UT9A05.00 | 5" | Cap Rectangular Flange Mounting (NFPA MF2) | 250 psig | 8 mm | 1 1/2" | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Rectangular | €1,515.00 | |
 |
1.50T2MNRUT9A05.00 | 5" | No Mount (NFPA MX0) | 250 psig | 8 mm | 1 1/2" | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Rectangular | €1,397.26 | |
 |
1.50CJ2MNR3UT9AC03.00 | 3" | Head Rectangular Flange Mounting (NFPA MF1) | 250 psig | 8 mm | 1 1/2" | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Rectangular | €1,699.14 | |
 |
1.50F2MNRUT9A07.00 | 7" | Side Tap Mounting (NFPA MS4) | 250 psig | 8 mm | 1 1/2" | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Rectangular | €1,527.08 | |
 |
1.50CF2MNRRT9AC06.00 | - | - | - | - | - | - | - | - | RFQ
|
 |
1.50CNB2MNR3UT9AC09.00 | 9" | Base Bar Mounting (Non-Nfpa Style) | 250 psig | 8 mm | 1 1/2" | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Rectangular | - | RFQ
|
