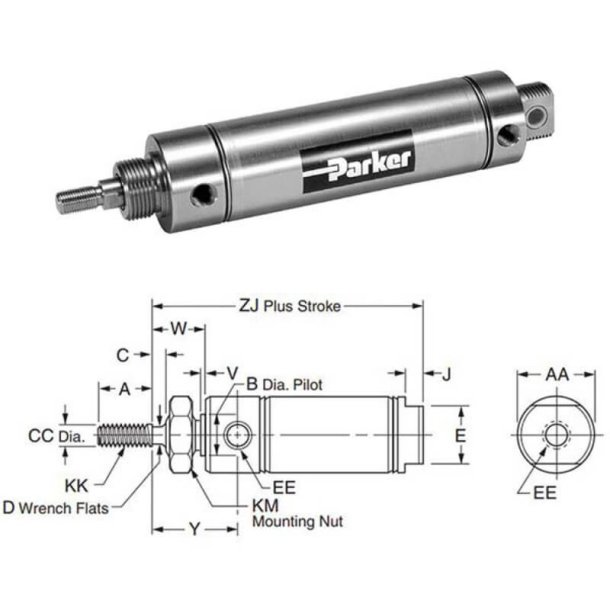

PARKER 1.50DSRGBY04.00 Pneumatic Cylinder
Get it by Thursday, Aug 20
€252.85 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylinder |
| Ambient Air Temp. | -10°F to +165°F |
| Ambient Air Temp. For Operation | -10°F to +165°F |
| Application Type | General Industry Assembly Conveyors Packaging |
| Bore Size | 1 1/2" |
| Chemical Resistance | Corrosion Resistance |
| Connection Type | 2 X 1/8" NPT Threaded Pneumatic Ports 7/16"-20 UNF Male Threaded Rod-End |
| Design | "LipSeal" Piston 303 Stainless Steel Head And Cap Piston Bumpers Both Ends Non-Repairable |
| Dia. | 7/16" |
| Function | Double-Acting Stainless Steel Pneumatic Cylinder |
| Main Function | Pneumatic Cylinder |
| Material | Stainless Steel Cylinder Body Aluminium Piston Oil-Impregnated Bronze Rod Bushing Stainless Steel Piston Rod |
| Max. Air Service Pressure | 250 psig |
| Mounting | Nose Mounting |
| Mounting Mode | Nose Mounting |
| Pressure | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) |
| Shape | Cylindrical |
| Stroke Length | 4" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Stroke Length | Mounting | Max. Air Service Pressure | Dia. | Bore Size | Pressure | Shape | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
1.50DXPSRGBY12.00 | 12" | Pivot, Nose Mounting | 250 psig | 7/16" | 1 1/2" | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Cylindrical | €336.50 | |
 |
1.50DXPSRGY08.00 | 8" | Pivot, Nose Mounting | 250 psig | 7/16" | 1 1/2" | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Cylindrical | €300.86 | |
 |
1.50DSRGY12.00 | 12" | Nose Mounting | 250 psig | 7/16" | 1 1/2" | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Cylindrical | €292.22 | |
 |
1.50DXPSRGVY01.00 | 1" | Pivot, Nose Mounting | 250 psig | 7/16" | 1 1/2" | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Cylindrical | €288.08 | |
 |
1.50DSRGVY06.00 | 6" | Nose Mounting | 250 psig | 7/16" | 1 1/2" | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Cylindrical | €285.64 | |
 |
1.50DSRGVY03.00 | 3" | Nose Mounting | 250 psig | 7/16" | 1 1/2" | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Cylindrical | €267.17 | |
 |
1.50DXPSRGBY02.00 | 2" | Pivot, Nose Mounting | 250 psig | 7/16" | 1 1/2" | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Cylindrical | €274.85 |
