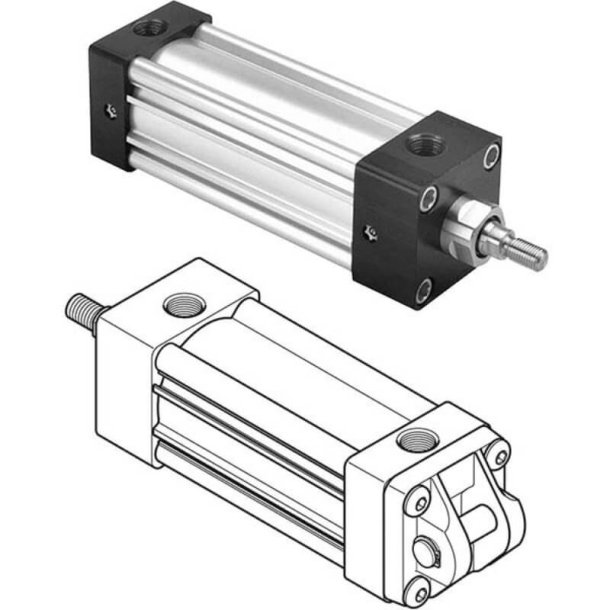

PARKER 1.50CBB4MA3U14A06.00 Pneumatic Cylinder
6"
Get it by Tuesday, Aug 25
€367.59 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylinder |
| Ambient Air Temp. | -10°F to +165°F |
| Ambient Air Temp. For Operation | -10°F to +165°F |
| Application Type | General Industry Conveyors Assembly Packaging |
| Bore Size | 1 1/2" |
| Chemical Resistance | Corrosion Resistance |
| Connection Type | 2 X 3/8" NPT Threaded Pneumatic Ports 7/16"-20 UNF Male Small Threaded Rod-End |
| Design | Piston Magnet "Lipseal" Piston Small Male Rod-End Thread Cushion At Head End Only Nfpa Interchangeable Model Repairable, Piston Magnet LipSeal Piston Small Male Rod End Thread Cushion At Head End Only NFPA Interchangeable Model Repairable |
| Dia. | 5/8" |
| Function | Double Acting Non Lube NFPA Tie Rod Pneumatic Cylinder |
| Main Function | Pneumatic Cylinder |
| Material | Anodized Aluminium Cylinder Body Aluminium Piston With Nylon Wear Band Composite Piston Bearing Bronze Gland Bronze Rod Bearing Hard Chrome-Plated Carbon Steel Piston Rod |
| Max. Air Service Pressure | 250 psig |
| Mounting | Cap Fixed Clevis Mounting (NFPA MP1) |
| Mounting Mode | Cap Fixed Clevis Mounting NFPA MP1 |
| Pressure | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) |
| Shape | Rectangular |
| Stroke Length | 6" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Stroke Length | Mounting | Dia. | Rod Dia. | Rod End Thread | Rod End Style | Piston No. | Max. Air Service Pressure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1.50BCZ4MA3U14A10.00 | 10" | Cap Detachable Clevis Mounting (NFPA MP2) | 5/8" | - | - | - | - | 250 psig | €359.67 | |
 |
1.50BB4MA3U14A24.00 | 24" | Cap Fixed Clevis Mounting (NFPA MP1) | 5/8" | - | - | - | - | 250 psig | €479.32 | |
 |
1.50BE4MA3U14A05.00 | 5" | Cap Detachable Eye Mounting (NFPA MP4) | 5/8" | - | - | - | - | 250 psig | €316.96 | |
 |
1.50CBE4MA3U14AC36.50 | 36 1/2" | Cap Detachable Eye Mounting (NFPA MP4) | 5/8" | - | - | - | - | 250 psig | €677.94 | |
 |
1.50CCB4MA3UV14AC14.00 | - | - | - | - | - | - | - | - | - | RFQ
|
 |
1.50CBE4MA3U14AC03.25 | 3 1/4" | Cap Detachable Eye Mounting (NFPA MP4) | 5/8" | - | - | - | - | 250 psig | €396.09 | |
 |
1.50BC4MA3U14A21.00 | 21" | Cap Detachable Clevis Mounting (NFPA MP2) | 5/8" | - | - | - | - | 250 psig | €453.58 |
