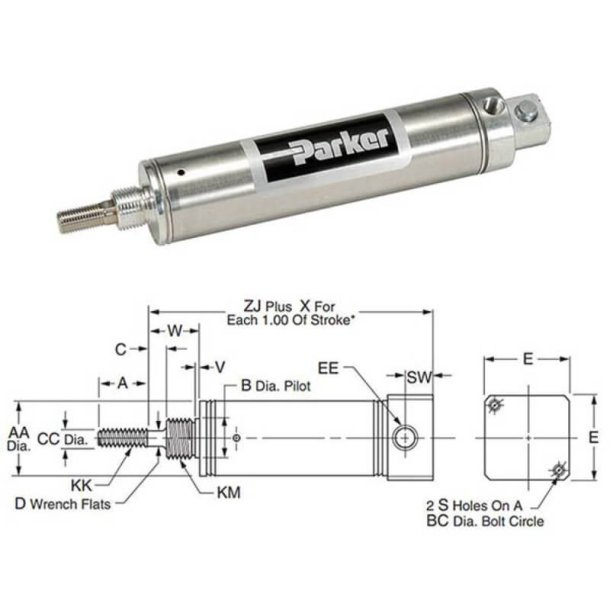

PARKER 1.50BRNSRM05.00 Pneumatic Cylinder
5"
Get it by Tuesday, Aug 25
€165.89 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylinder |
| Ambient Air Temp. | 14°F to 140°F |
| Ambient Air Temp. For Operation | 14°F to 140°F |
| Application Type | General Industry Assembly Conveyors Packaging |
| Bore Size | 1 1/2" |
| Chemical Resistance | Corrosion Resistance |
| Connection Type | 1/8" NPT Threaded Pneumatic Port 7/16"-20 UNF Male Threaded Rod End , 1/8" NPT Threaded Pneumatic Port 7/16"-20 UNF Male Threaded Rod-End |
| Design | Piston Magnet "Lipseal" Piston Aluminium Head And Cap Non-Repairable |
| Dia. | 7/16" |
| Function | Single-Acting (Spring-Return) Stainless Steel Pneumatic Cylinder |
| Main Function | Pneumatic Cylinder |
| Material | Stainless Steel Cylinder Body Aluminium Piston Oil-Impregnated Bronze Rod Bushing Stainless Steel Piston Rod |
| Max. Air Service Pressure | 250 psig |
| Mounting | Rear Block Mounting |
| Mounting Mode | Rear Block Mounting |
| Pressure | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) |
| Shape | Cylindrical |
| Stroke Length | 5" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Stroke Length | Mounting | Rod Dia. | Rod Thread Length | Mounting Type | Stroke | Single Acting/double Acting | Cylinder Action | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1.50BFDSRM01.00 | 1" | - | 0.437" | 1 1/4" | Front Block | 1" | Double Acting | Double Acting | €195.42 | |
 |
1.50BFDSRM02.00 | 2" | - | 0.437" | 1 1/4" | Front Block | 2" | Double Acting | Double Acting | €203.55 | |
|
1.50BFDSRM03.00 | 3" | - | 0.437" | 1 1/4" | Front Block | 3" | Double Acting | Double Acting | €204.34 | |
|
1.50BFDSRM04.00 | 4" | - | 0.437" | 1 1/4" | Front Block | 4" | Double Acting | Double Acting | €219.78 | |
|
1.50BFDSRM05.00 | 5" | - | 0.437" | 1 1/4" | Front Block | 5" | Double Acting | Double Acting | €219.97 | |
|
1.50BFDSRM06.00 | 6" | - | 0.437" | 1 1/4" | Front Block | 6" | Double Acting | Double Acting | €227.87 | |
 |
1.50BRDSRM01.00 | 1" | - | 0.437" | 1 1/4" | Rear Block | 1" | Double Acting | Double Acting | €170.28 |
