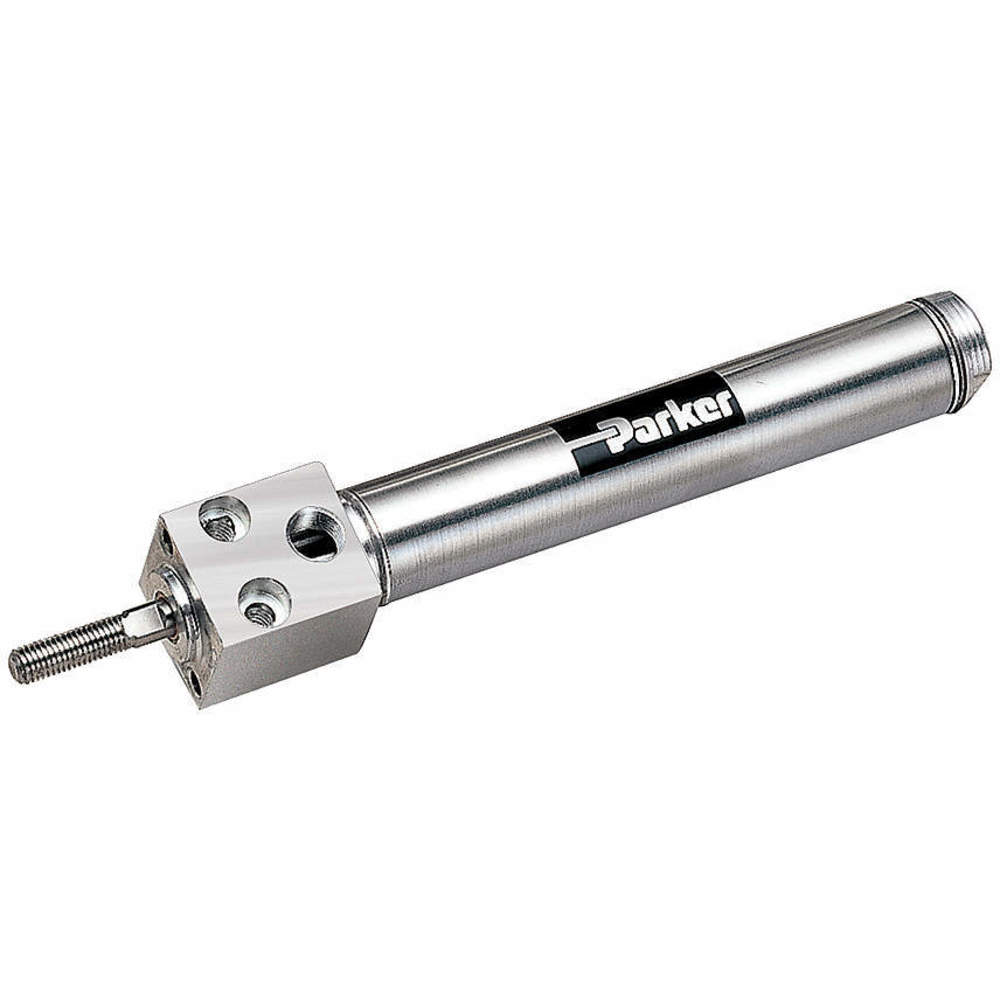

PARKER 1.50BRDSRM02.00 Round Air Cylinder 1-1/2 Inch Bore 2 Inch Stroke
Item: AG9MVJModel: 1.50BRDSRM02.00Cross Ref: 20XT23
7 In Stock
2"
Ships within 2 days via
10.00% off
€143.32 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Air Cylinder |
| Air Cylinder Type | Round Body |
| Air Inlet Size | 1/4" |
| Air Inlet Type | NPT |
| Body Material | Stainless Steel |
| Body Material Grade | Grade 304 |
| Bore Dia. | 1 1/2" |
| Color | Silver |
| Cushion Type | None |
| Cylinder Action | Double Acting |
| Cylinder Type | Round Body |
| End Cap Material | Aluminum |
| Features | Switch Ready |
| Finish | Silver |
| For Fluid Type | Air |
| Inlet Gender | Female |
| Magnetic Piston | Magnetic Piston |
| Max. Pressure | 250 psi |
| Maximum Operating Pressure | 250 psi |
| Maximum Operating Temperature | 140°F |
| Minimum Operating Temperature | 14°F |
| Mounting Style | Block |
| Mounting Type | Rear Block |
| Nose Mount Thread Size | 3/4"-16 |
| Number Of Rods | 1 |
| Overall Height | 1 3/4" |
| Overall Length | 7 22/25" |
| Piston Material | Aluminum |
| Piston Rod Material | Stainless Steel |
| Repairable Cylinder | Non Repairable |
| Rod Dia. | 0.437" |
| Rod Diameter | 7/16" |
| Rod Rotation | Rotating Rod |
| Rod Thread Length | 1 1/4" |
| Rod Thread Size | 7/16"-20 |
| Rod Thread Type | Fine |
| Series | SRM Series |
| Single Acting/double Acting | Double Acting |
| Spring Retraction Force | Not Applicable |
| Stroke | 2" |
| Stroke Length | 2" |
| System Of Measurement | Inch |
| Tube Material | Stainless Steel |
| Type | Round Body |
Shipping Info:
| Ship weight (kg) | 0.47 |
| Ship height (cm) | 4.45 |
| Ship length (cm) | 20.02 |
| Ship width (cm) | 4.45 |
| Country of Origin | US |
Product Variants
| Product | Model | Stroke | Mounting Type | Single Acting/double Acting | Rod Thread Length | Spring Retraction Force | Overall Length | Pivot Hole Dia. | Bore Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1.50BFDSRM01.00 | 1" | Front Block | Double Acting | 1 1/4" | Not Applicable | 6.69" | - | 1 1/2" | €168.64 | |
 |
1.50BFDSRM02.00 | 2" | Front Block | Double Acting | 1 1/4" | Not Applicable | 7.69" | - | 1 1/2" | €175.67 | |
|
1.50BFDSRM03.00 | 3" | Front Block | Double Acting | 1 1/4" | Not Applicable | 8.69" | - | 1 1/2" | €182.71 | |
|
1.50BFDSRM04.00 | 4" | Front Block | Double Acting | 1 1/4" | Not Applicable | 9.69" | - | 1 1/2" | €189.67 | |
|
1.50BFDSRM05.00 | 5" | Front Block | Double Acting | 1 1/4" | Not Applicable | 10.69" | - | 1 1/2" | €196.68 | |
|
1.50BFDSRM06.00 | 6" | Front Block | Double Acting | 1 1/4" | Not Applicable | 11.69" | - | 1 1/2" | €203.74 | |
|
1.50BRDSRM01.00 | 1" | Rear Block | Double Acting | 1 1/4" | Not Applicable | 6 22/25" | - | 1 1/2" | €152.25 |
