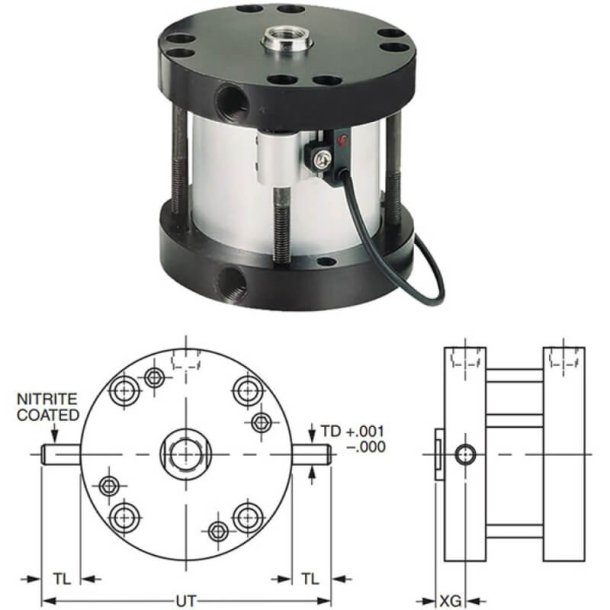

PARKER 1.502FLP93.40 Pneumatic Cylinder
Get it by Friday, Aug 21
€312.65 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylinder |
| Ambient Air Temp. | -10°F to +200°F |
| Ambient Air Temp. For Operation | -10°F to +200°F |
| Application Type | General Industry Conveyors Packaging Assembly |
| Bore Size | 1 1/2" |
| Chemical Resistance | Corrosion Resistance |
| Connection Type | 2 X 1/8" NPT Threaded Pneumatic Ports 3/8"-24 UNF Female Threaded Rod-End |
| Design | Buna-N Piston Quad Seal Anodized Aluminium Head & Cap Permanent Lubrication Repairable |
| Dia. | 5/8" |
| Function | Double-Acting Compact Aluminium Pneumatic Cylinder |
| Main Function | Pneumatic Cylinder |
| Material | Hard-Coated Aluminium Body High Density Iron Rod Bearing Anodized Aluminium Alloy Heads And Caps Hard Chrome-Plated High-Strength Steel Rod |
| Max. Air Pressure | 145 psig |
| Max. Air Service Pressure | 145 psig |
| Mounting | Head Trunnion Mounting |
| Mounting Mode | Head Trunnion Mounting |
| Shape | Cylindrical |
| Stroke Length | 3 2/5" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Stroke Length | Mounting | Max. Air Service Pressure | Max. Air Pressure | Dia. | Bore Size | Shape | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
1.502RLP92.00 | 2" | Cap Trunnion Mounting | 145 psig | 145 psig | 5/8" | 1 1/2" | Cylindrical | €286.80 | |
 |
1.504FLPL90.25 | 1/4" | Head Bolt Mounting | 145 psig | 145 psig | 5/8" | 1 1/2" | Cylindrical | €260.58 | |
 |
1.502RLPL90.10 | - | - | - | - | - | - | - | - | RFQ
|
 |
1.501LPL92.00 | 2" | Cap Pivot Eye Mounting | 145 psig | 145 psig | 5/8" | 1 1/2" | Cylindrical | €339.50 | |
 |
1.501LP42.50 | 2 1/2" | Cap Pivot Eye Mounting | 145 psig | 145 psig | 5/8" | 1 1/2" | Cylindrical | €341.58 | |
 |
1.504FLP90.38 | 0.38" | Head Bolt Mounting | 145 psig | 145 psig | 5/8" | 1 1/2" | Cylindrical | €240.41 | |
 |
1.50NLPLV91.50 | 1 1/2" | Basic Mounting (Standard) | 145 psig | 145 psig | 5/8" | 1 1/2" | Cylindrical | €318.55 |
