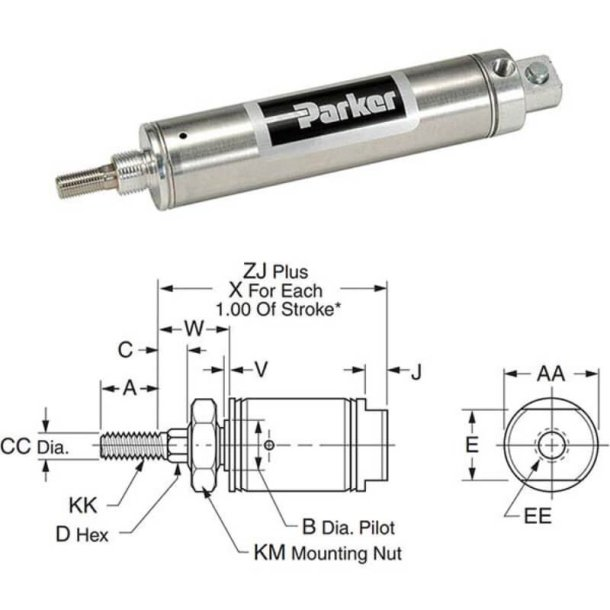

PARKER 1.25NRSR03.63 Pneumatic Cylinder
3.63"
Get it by Tuesday, Aug 18
€91.51 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylinder |
| Ambient Air Temp. | -10°F to +165°F |
| Ambient Air Temp. For Operation | -10°F to +165°F |
| Application Type | General Industry Assembly Conveyors Packaging |
| Bore Size | 1 1/4" |
| Chemical Resistance | Corrosion Resistance |
| Connection Type | 1/8" NPT Threaded Pneumatic Port 7/16"-20 UNF Male Threaded Rod End , 1/8" NPT Threaded Pneumatic Port 7/16"-20 UNF Male Threaded Rod-End |
| Design | "Lipseal" Piston Aluminium Head And Cap Non-Repairable |
| Dia. | 7/16" |
| Function | Single Acting (Spring Return) Non Rotating Single End Hex Rod Stainless Steel Pneumatic Cylinder |
| Main Function | Pneumatic Cylinder |
| Material | Stainless Steel Cylinder Body Aluminium Piston Oil-Impregnated Bronze Rod Bushing Stainless Steel Piston Rod |
| Max. Air Service Pressure | 250 psig |
| Mounting | Nose Mounting |
| Mounting Mode | Nose Mounting |
| Pressure | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) |
| Shape | Cylindrical |
| Stroke Length | 3.63" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Stroke Length | Shape | Mounting | Rod Dia. | Mounting Type | Stroke | Single Acting/double Acting | Magnetic Piston | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 1.25DSR01.00 | 1" | - | - | 0.437" | Nose | 1" | Double Acting | Non-Magnetic Piston | €71.24 | |
| 1.25DSR02.00 | 2" | - | - | 0.437" | Nose | 2" | Double Acting | Non-Magnetic Piston | €71.25 | |
| 1.25DSR03.00 | 3" | Round | - | 0.437" | Nose | 3" | Double Acting | Non-Magnetic Piston | €77.94 | |
| 1.25DSR04.00 | 4" | Round | - | 0.437" | Nose | 4" | Double Acting | Non-Magnetic Piston | €82.47 | |
| 1.25DSR06.00 | 6" | Round | - | 0.437" | Nose | 6" | Double Acting | Non-Magnetic Piston | €91.55 | |
| 1.25DXPSR01.00 | 1" | Round | - | 0.437" | Nose, Pivot | 1" | Double Acting | Non-Magnetic Piston | €82.41 | |
| 1.25DXPSR02.00 | 2" | Round | - | 0.437" | Nose, Pivot | 2" | Double Acting | Non-Magnetic Piston | €85.03 |
