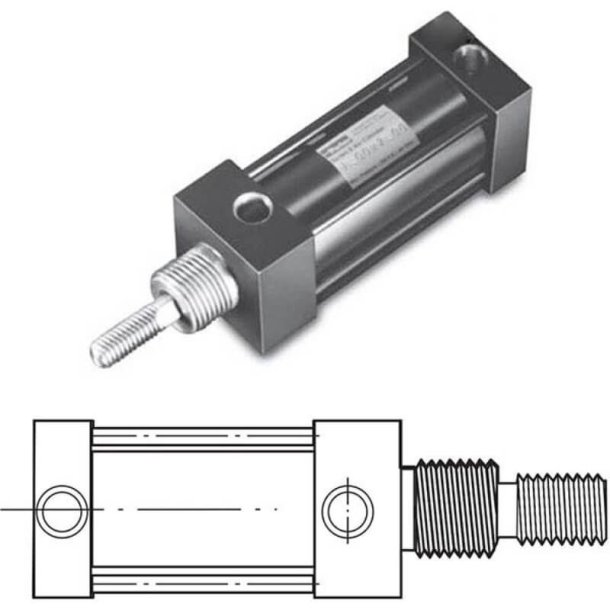

PARKER 1.12NSU1601.25 Pneumatic Cylinder
Get it by Friday, Aug 21
€430.75 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylinder |
| Ambient Air Temp. | -10°F to +165°F |
| Ambient Air Temp. For Operation | -10°F to +165°F |
| Bore Size | 1 1/8" |
| Connection Type | 2 X 1/8" NPT Threaded Pneumatic Ports 3/8"-24 UNF Male Threaded Rod-End |
| Design | Repairable |
| Dia. | 3/8" , 3/8" No.1 |
| Function | Double-Acting Universal Midget Pneumatic Cylinder |
| Main Function | Pneumatic Cylinder |
| Material | Steel Piston Bronze Rod Bearing Stainless Steel Piston Rod |
| Max. Air Service Pressure | 200 psig |
| Mounting | Nose Mounting |
| Mounting Mode | Nose Mounting |
| Shape | Rectangular |
| Stroke Length | 1 1/4" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Stroke Length | Dia. | Bore Size | Rod Dia. | Max. Air Service Pressure | Mounting | Shape | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
1.25NSUR1601.00 | 1" | 3/8" , 3/8" No.1 | 1 1/4" | - | 200 psig | Nose Mounting | Rectangular | €501.63 | |
 |
1.12NSUE1602.00 | 2" | 3/8" , 3/8" No.1 | 1 1/8" | - | 200 psig | Nose Mounting | Rectangular | €503.47 | |
 |
1.12NSLU3604.00 | 4" | 1/2" | 1 1/8" | 1/2" | 200 psig | Nose Mounting | Rectangular | €683.00 | |
 |
1.12NSU1600.75 | 3/4" | 3/8" , 3/8" No.1 | 1 1/8" | - | 200 psig | Nose Mounting | Rectangular | €407.16 | |
 |
1.12NSUE1601.00 | 1" | 3/8" , 3/8" No.1 | 1 1/8" | - | 200 psig | Nose Mounting | Rectangular | €458.92 | |
 |
1.00NSU3602.00 | 2" | 3/8" , 3/8" No.3 | 1" | - | 200 psig | Nose Mounting | Rectangular | €498.95 | |
 |
1.12NSU1603.50 | 3 1/2" | 3/8" , 3/8" No.1 | 1 1/8" | - | 200 psig | Nose Mounting | Rectangular | €473.11 |
