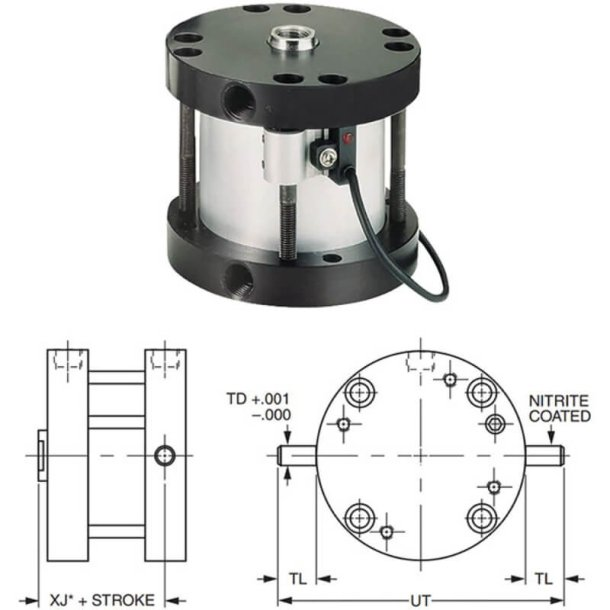

PARKER 1.122RLP90.38 Pneumatic Cylinder
Get it by Thursday, Aug 20
€232.99 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylinder |
| Ambient Air Temp. | -10°F to +200°F |
| Ambient Air Temp. For Operation | -10°F to +200°F |
| Application Type | General Industry Conveyors Packaging Assembly |
| Bore Size | 1 1/8" |
| Chemical Resistance | Corrosion Resistance |
| Connection Type | 2 X 1/8" NPT Threaded Pneumatic Ports 5/16"-24 UNF Female Threaded Rod End , 2 X 1/8" NPT Threaded Pneumatic Ports 5/16"-24 UNF Female Threaded Rod-End |
| Design | Buna-N Piston Quad Seal Anodized Aluminium Head & Cap Permanent Lubrication Repairable |
| Dia. | 1/2" |
| Function | Double-Acting Compact Aluminium Pneumatic Cylinder |
| Main Function | Pneumatic Cylinder |
| Material | Hard-Coated Aluminium Body High Density Iron Rod Bearing Anodized Aluminium Alloy Heads And Caps Hard Chrome-Plated High-Strength Steel Rod |
| Max. Air Pressure | 145 psig |
| Max. Air Service Pressure | 145 psig |
| Mounting | Cap Trunnion Mounting |
| Mounting Mode | Cap Trunnion Mounting |
| Shape | Cylindrical |
| Stroke Length | 0.38" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Stroke Length | Mounting | Max. Air Service Pressure | Max. Air Pressure | Dia. | Bore Size | Shape | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
1.12NLPR91.50 | 1 1/2" | Basic Mounting (Standard) | 145 psig | 145 psig | 1/2" | 1 1/8" | Cylindrical | €246.35 | |
 |
1.124FLPVE90.38 | 0.38" | Head Bolt Mounting | 145 psig | 145 psig | 1/2" | 1 1/8" | Cylindrical | €273.60 | |
 |
1.124FLPLE91.00 | - | - | - | - | - | - | - | - | RFQ
|
 |
1.121LPR91.00 | 1" | Cap Pivot Eye Mounting | 145 psig | 145 psig | 1/2" | 1 1/8" | Cylindrical | €268.06 | |
 |
1.124RLP90.13 | 0.13" | Cap Bolt Mounting | 145 psig | 145 psig | 1/2" | 1 1/8" | Cylindrical | €203.93 | |
 |
1.124FLP92.25 | 2 1/4" | Head Bolt Mounting | 145 psig | 145 psig | 1/2" | 1 1/8" | Cylindrical | €233.91 | |
 |
1.12NLPVB90.35 | 0.35" | Basic Mounting (Standard) | 145 psig | 145 psig | 1/2" | 1 1/8" | Cylindrical | €271.69 |
