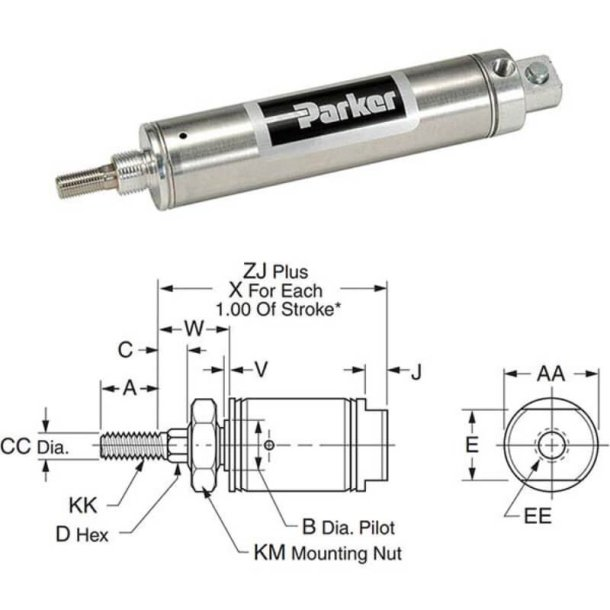

PARKER 1.06NRSRM03.00 Pneumatic Cylinder
Get it by Friday, Jul 17
€75.67 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylinder |
| Ambient Air Temp. | 14°F to 140°F |
| Ambient Air Temp. For Operation | 14°F to 140°F |
| Application Type | General Industry Assembly Conveyors Packaging |
| Bore Size | 1 1/16" |
| Chemical Resistance | Corrosion Resistance |
| Connection Type | 1/8" NPT Threaded Pneumatic Port 5/16"-24 UNF Male Threaded Rod-End |
| Design | Piston Magnet "Lipseal" Piston Aluminium Head And Cap Non-Repairable |
| Dia. | 3/8" |
| Function | Single Acting (Spring Return) Non Rotating Single End Hex Rod Stainless Steel Pneumatic Cylinder |
| Main Function | Pneumatic Cylinder |
| Material | Stainless Steel Cylinder Body Aluminium Piston Oil-Impregnated Bronze Rod Bushing Stainless Steel Piston Rod |
| Max. Air Service Pressure | 250 psig |
| Mounting | Nose Mounting |
| Mounting Mode | Nose Mounting |
| Pressure | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) |
| Shape | Cylindrical |
| Stroke Length | 3" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Bore Dia. | Stroke | Mounting Type | Single Acting/double Acting | Rod Dia. | Spring Retraction Force | Overall Length | Rod Thread Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 1.06BFDSRM01.00 | 1.062" | 1" | Front Block | Double Acting | 0.312" | Not Applicable | 5.66" | 3/4" | €122.63 | |
| 1.06BFDSRM02.00 | 1.062" | 2" | Front Block | Double Acting | 0.312" | Not Applicable | 6.66" | 3/4" | €123.69 | |
| 1.06BFDSRM03.00 | 1.062" | 3" | Front Block | Double Acting | 0.312" | Not Applicable | 7.66" | 3/4" | €129.10 | |
| 1.06BFDSRM04.00 | 1.062" | 4" | Front Block | Double Acting | 0.312" | Not Applicable | 8.66" | 3/4" | €139.38 | |
| 1.06BFDSRM05.00 | 1.062" | 5" | Front Block | Double Acting | 0.312" | Not Applicable | 9.66" | 3/4" | €141.41 | |
| 1.06BFDSRM06.00 | 1.062" | 6" | Front Block | Double Acting | 0.312" | Not Applicable | - | 3/4" | €141.41 | |
| 1.06BRDSRM01.00 | 1.062" | 1" | Rear Block | Double Acting | 0.312" | Not Applicable | 5.91" | 3/4" | €116.33 |
