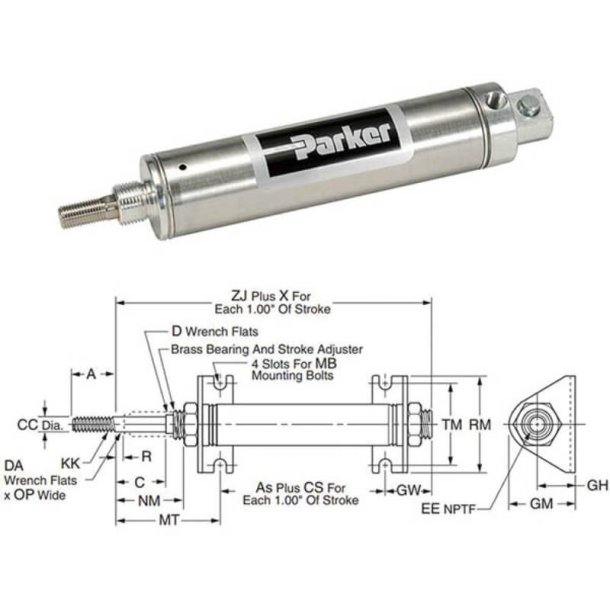

PARKER 1.06ASR02.75 Pneumatic Cylinder
2 3/4"
Get it by Friday, Aug 28
€86.34 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylinder |
| Ambient Air Temp. | -10°F to +165°F |
| Ambient Air Temp. For Operation | -10°F to +165°F |
| Application Type | General Industry Assembly Conveyors Packaging |
| Bore Size | 1 1/16" |
| Chemical Resistance | Corrosion Resistance |
| Connection Type | 1/8" NPT Threaded Pneumatic Port 5/16"-24 UNF Male Threaded Rod-End |
| Design | Head Adjustable Stroke Lipseal Piston Aluminium Head And Cap Non-Repairable |
| Dia. | 5/16" |
| Function | Single-Acting (Spring-Return) Stainless Steel Pneumatic Cylinder |
| Main Function | Pneumatic Cylinder |
| Material | Stainless Steel Cylinder Body Aluminium Piston Oil-Impregnated Bronze Rod Bushing Stainless Steel Piston Rod |
| Max. Air Service Pressure | 250 psig |
| Mounting | Nose Mounting |
| Mounting Mode | Nose Mounting |
| Pressure | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) |
| Rod Dia. | 5/16" |
| Shape | Cylindrical |
| Stroke Length | 2 3/4" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Stroke Length | Rod Dia. | Dia. | Mounting | Mounting Type | Bore Dia. | Stroke | Single Acting/double Acting | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 1.06BFDSR01.00 | 1" | 0.312" | - | - | Front Block | 1.062" | 1" | Double Acting | €95.01 | |
| 1.06BFDSR02.00 | - | 0.312" | - | - | Front Block | 1.062" | 2" | Double Acting | €100.08 | |
| 1.06BFDSR03.00 | - | 0.312" | - | - | Front Block | 1.062" | 3" | Double Acting | €108.96 | |
| 1.06BFDSR04.00 | 4" | 0.312" | - | - | Front Block | 1.062" | 4" | Double Acting | €114.24 | |
| 1.06BFDSR05.00 | 5" | 0.312" | - | - | Front Block | 1.062" | 5" | Double Acting | €119.48 | |
| 1.06BFDSR06.00 | 6" | 0.312" | - | - | Front Block | 1.062" | 6" | Double Acting | €120.47 | |
| 1.06BRDSR01.00 | 1" | 0.312" | - | - | Rear Block | 1.062" | 1" | Double Acting | €96.34 |
