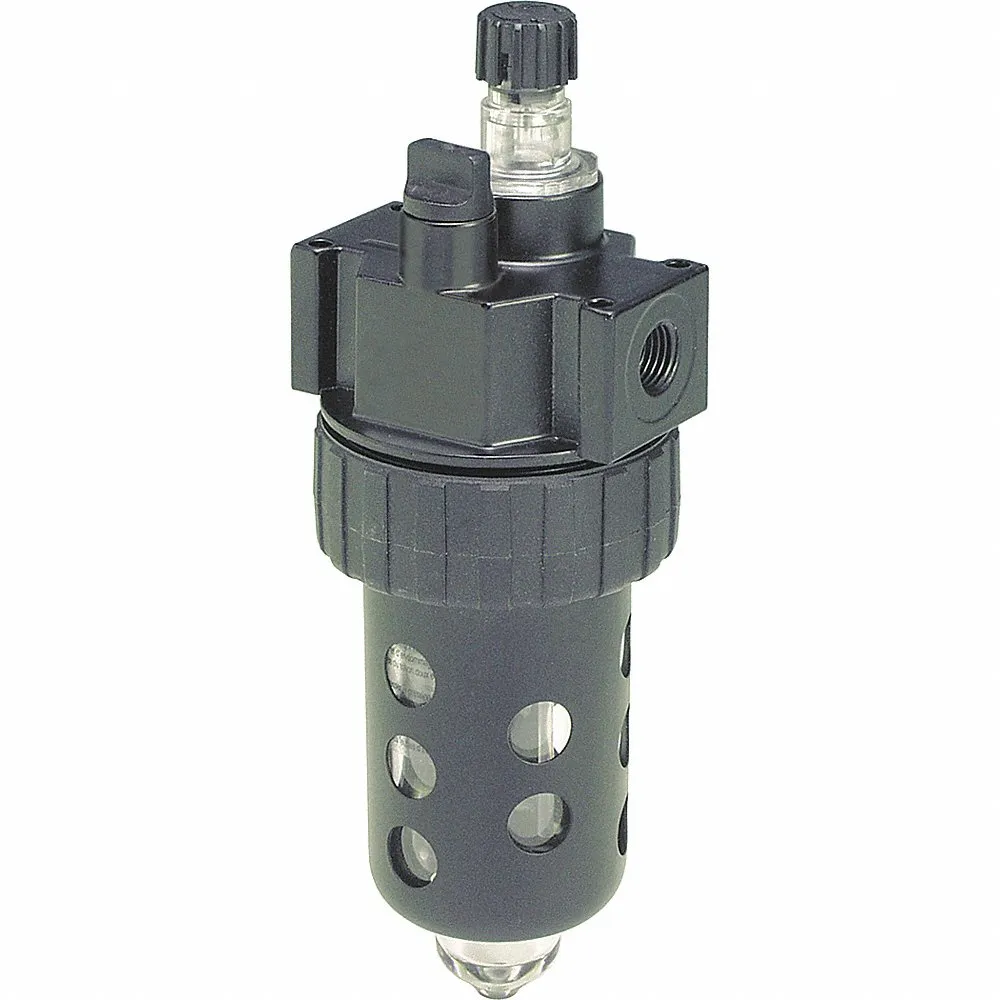

PARKER 07L42BE Compressed Air Lubricator, Mist, 3/4 Inch NPT, 90 cfm, 150 psi Max Op Pressure
Item: BM6TWNModel: 07L42BECross Ref: 409X64
7 In Stock
Ships within 2 days via
5.00% off
€318.05 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Adjustment Mechanism | Locking Knob, Nonrising |
| Adjustment Type | Locking Knob, Nonrising |
| Air Inlet Size | 3/4" |
| Air Inlet Type | NPT |
| Air Outlet Size | 3/4" |
| Air Outlet Type | NPT |
| Air Preparation Product Type | Lubricator |
| Air Preparation Series | General Industrial Series |
| Body Material | Zinc |
| Bowl Material | Plastic |
| Bowl Type | Poly With Bowl Guard |
| Connection Style | Air Line |
| Dome Material | Polycarbonate |
| Drain Included | No |
| Duty Rating | Standard Duty |
| Flow | 75-99 SCFM |
| For Fluid Type | Compressed Air |
| For Max. Pipe Run | 20 ft. |
| For Substance Type | Air |
| Included | Bowl, Fill Plug, Guard, Sight Dome |
| Inlet Size | 3/4 |
| Inlet Type | NPT |
| Lubricator Bowl Capacity | 6 oz. |
| Lubricator Bowl Guard Included | Yes |
| Lubricator Bowl Guard Material | Steel |
| Lubricator Bowl Material | Polycarbonate |
| Lubricator Type | Mist |
| Max. Flow @ 100 Psi | 90 CFM |
| Max. Flow Rate | 90 CFM |
| Max. Operating Pressure | 150 psi |
| Max. Operating Temp. | 125°F |
| Min. Flow Rate | 60 CFM |
| Min. Operating Pressure | 0 psig |
| Min. Operating Temp. | 32°F |
| Modular Connection | Modular Connection |
| No. Of Air Inlets | 1 |
| No. Of Air Outlets | 1 |
| Oil Capacity | 6 oz. |
| Oil Feed Type | Mist |
| Operating Temp. | 0°C to 52°C |
| Overall Depth | 3 1/4" |
| Overall Height | 9 1/16" |
| Overall Width | 3 1/4" |
| Port Inch/bsp | NPT |
| Port Size | 3/4" |
| Port Type | NPT |
| Pressure Drop | 5 Psi |
| Recommended Lubricant | F442 Oil |
| Seal Material | Nitrile Rubber |
| Series | 07L STANDARD Series |
| Sight Dome Included | Yes |
| Sight Gauge Included | Yes |
| Supply Pressure | 0 psig to 150 psig |
| System Location | Air Line |
Shipping Info:
| Ship weight (kg) | 1.22 |
| Ship height (cm) | 23.02 |
| Ship length (cm) | 8.26 |
| Ship width (cm) | 8.26 |
| Country of Origin | US |
