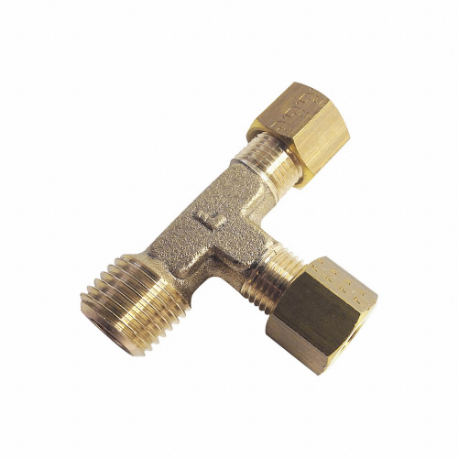

PARKER 0103 06 13 Brass Metric Compression Fitting, Brass, BSPT x Compression x Compression
Item: CT7DUEModel: 0103 06 13Cross Ref: 791PJ4
7 In Stock
Ships within 2 days via
10.00% off
€27.93 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Compression Fitting |
| Application | Air Lines, Automotive Process, Cooling Lines, Fluid Transfer, Lubrication Lines, Water Lines |
| Compatible Tube Material | Brass, Copper, Polyamide, Steel |
| Fitting Material | Brass |
| Fitting Side A Connection Type | BSPT |
| Fitting Side A Pipe Size | 1/4" |
| Fitting Side B Connection Type | Compression |
| Fitting Side B Tube Outer Diameter | 6 mm |
| Fitting Side C Connection Type | Compression |
| Fitting Side C Tube Outer Diameter | 6 mm |
| Length | 27 mm |
| Material | Brass |
| Max. Operating Pressure | 3335 psi |
| Max. Operating Temp. | 250°F |
| Min. Operating Temp. | -40°F |
| Overall Length | 27 mm |
| Product Datasheet | parker-0103-06-13.pdf |
| Specific Fitting Shape | TEE |
| System Of Measurement | Metric |
| Thread Size A | R1/4" |
Shipping Info:
| Ship weight (kg) | 0.06 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.7 |
| Ship width (cm) | 2.54 |
| Country of Origin | FR |
Documentation:
Product Variants
| Model | Fitting Side B Tube Outer Diameter | Thread Size A | Fitting Side C Tube Outer Diameter | Fitting Side A Pipe Size | Overall Length | Min. Operating Temp. | Max. Operating Pressure | Max. Operating Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 0103 08 13 | 8 mm | R1/4" | 8 mm | 1/4" | 28 mm | -40°F | 3335 psi | 250°F | €44.58 | |
| 0103 06 10 | 6 mm | R1/8" | 4 mm | 1/8" | 22 mm | -40°F | 3335 psi | 250°F | €41.68 | |
| 0103 12 13 | 12 mm | R1/4" | 12 mm | 1/4" | 30 mm | -40°F | 3335 psi | 250°F | €67.56 | |
| 0103 10 13 | 10 mm | R1/4" | 10 mm | 1/4" | 30 mm | -40°F | 3335 psi | 250°F | €55.07 | |
| 0103 04 10 | 4 mm | R1/8" | 4 mm | 1/8" | 19 mm | -40°F | 3335 psi | - | €36.67 |
