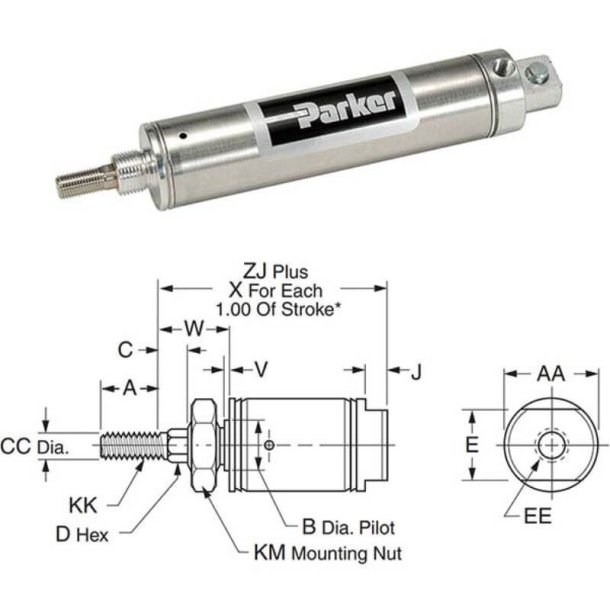

PARKER 0.88NRSR02.00 Pneumatic Cylinder
Get it by Tuesday, Aug 18
€46.63 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylinder |
| Ambient Air Temp. | -10°F to +165°F |
| Ambient Air Temp. For Operation | -10°F to +165°F |
| Application Type | General Industry Assembly Conveyors Packaging |
| Bore Size | 7/8" |
| Chemical Resistance | Corrosion Resistance |
| Connection Type | 1/8" NPT Threaded Pneumatic Port 1/4"-28 UNF Male Threaded Rod End , 1/8" NPT Threaded Pneumatic Port 1/4"-28 UNF Male Threaded Rod-End |
| Design | "Lipseal" Piston Aluminium Head And Cap Non-Repairable |
| Dia. | 1/4" |
| Function | Single Acting (Spring Return) Non Rotating Single End Hex Rod Stainless Steel Pneumatic Cylinder |
| Main Function | Pneumatic Cylinder |
| Material | Stainless Steel Cylinder Body Aluminium Piston Oil-Impregnated Bronze Rod Bushing Stainless Steel Piston Rod |
| Max. Air Service Pressure | 250 psig |
| Mounting | Nose Mounting |
| Mounting Mode | Nose Mounting |
| Pressure | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) |
| Shape | Cylindrical |
| Stroke Length | 2" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Stroke Length | Mounting | Mounting Type | Stroke | Single Acting/double Acting | Magnetic Piston | Cylinder Action | Spring Retraction Force | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.88DSR01.00 | 1" | - | Nose | 1" | Double Acting | Non-Magnetic Piston | Double Acting | Not Applicable | €55.13 | |
| 0.88DSR02.00 | 2" | - | Nose | 2" | Double Acting | Non-Magnetic Piston | Double Acting | Not Applicable | €62.27 | |
| 0.88DSR03.00 | 3" | - | Nose | 3" | Double Acting | Non-Magnetic Piston | Double Acting | Not Applicable | €71.25 | |
| 0.88DSR04.00 | - | - | Nose | 4" | Double Acting | No | Double Acting | Not Applicable | €71.24 | |
| 0.88DSR05.00 | - | - | Nose | 5" | Double Acting | No | Double Acting | Not Applicable | €71.24 | |
| 0.88DSR06.00 | 6" | - | Nose | 6" | Double Acting | Non-Magnetic Piston | Double Acting | Not Applicable | €84.08 | |
| 0.88DXPSR01.00 | 1" | - | Nose, Pivot | 1" | Double Acting | Non-Magnetic Piston | Double Acting | Not Applicable | €71.74 |
