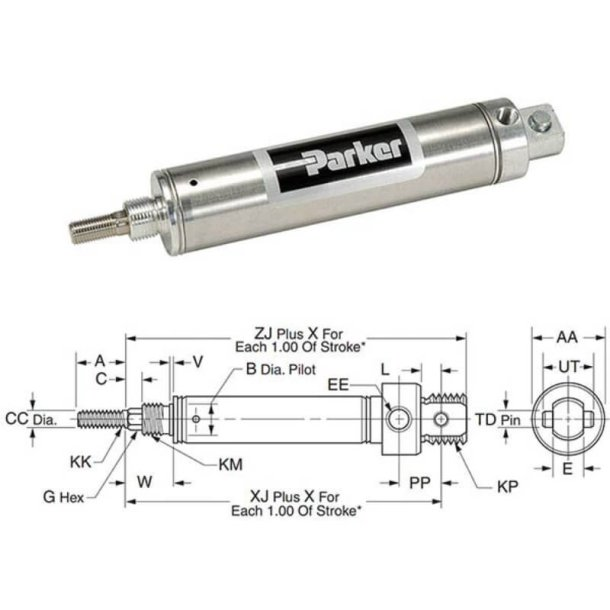

PARKER 0.75NRPSR05.00 Pneumatic Cylinder
Get it by Thursday, Aug 27
€71.64 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylinder |
| Ambient Air Temp. | -10°F to +165°F |
| Ambient Air Temp. For Operation | -10°F to +165°F |
| Application Type | General Industry Assembly Conveyors Packaging |
| Bore Size | 3/4" |
| Chemical Resistance | Corrosion Resistance |
| Connection Type | 1/8" NPT Threaded Pneumatic Port 1/4"-28 UNF Male Threaded Rod End , 1/8" NPT Threaded Pneumatic Port 1/4"-28 UNF Male Threaded Rod-End |
| Design | "Lipseal" Piston Aluminium Head And Cap Non-Repairable |
| Dia. | 1/4" |
| Function | Single Acting (Spring Return) Non Rotating Single End Hex Rod Stainless Steel Pneumatic Cylinder |
| Main Function | Pneumatic Cylinder |
| Material | Stainless Steel Cylinder Body Aluminium Piston Oil-Impregnated Bronze Rod Bushing Stainless Steel Piston Rod |
| Max. Air Service Pressure | 250 psig |
| Mounting | Pivot, Nose Mounting |
| Mounting Mode | Pivot And Nose Mounting |
| Pressure | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) |
| Shape | Cylindrical |
| Stroke Length | 5" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Stroke Length | Mounting | Rod Thread Length | Mounting Type | Stroke | Single Acting/double Acting | Magnetic Piston | Cylinder Action | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.75BFDSR01.00 | 1" | - | 3/4" | Front Block | 1" | Double Acting | Non-Magnetic Piston | Double Acting | €81.93 | |
| 0.75BFDSR02.00 | 2" | - | 3/4" | Front Block | 2" | Double Acting | Non-Magnetic Piston | Double Acting | €91.14 | |
| 0.75BFDSR03.00 | 3" | - | 3/4" | Front Block | 3" | Double Acting | Non-Magnetic Piston | Double Acting | €96.40 | |
| 0.75BFDSR04.00 | 4" | - | 3/4" | Front Block | 4" | Double Acting | Non-Magnetic Piston | Double Acting | €101.80 | |
| 0.75BFDSR05.00 | 5" | - | 3/4" | Front Block | 5" | Double Acting | Non-Magnetic Piston | Double Acting | €106.98 | |
| 0.75BFDSR06.00 | 6" | - | 3/4" | Front Block | 6" | Double Acting | Non-Magnetic Piston | Double Acting | €112.21 | |
| 0.75BRDSR01.00 | 1" | - | 3/4" | Rear Block | 1" | Double Acting | Non-Magnetic Piston | Double Acting | €82.99 |
