PARKER 0.75DXPSRD01.00 Pneumatic Cylinder
Get it by Friday, Aug 14
€80.55 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylinder |
| Ambient Air Temp. | 32°F to 160°F |
| Ambient Air Temp. For Operation | 32°F to 160°F |
| Application Type | General Industry Assembly Conveyors Packaging |
| Bore Size | 3/4" |
| Chemical Resistance | Corrosion Resistance |
| Connection Type | 2 X 1/8" NPT Threaded Pneumatic Ports 1/4"-28 UNF Male Threaded Rod-End |
| Design | LipSeal Piston Acetal Resin Head, Cap Non Repairable |
| Dia. | 1/4" |
| Function | Double-Acting Stainless Steel Pneumatic Cylinder |
| Main Function | Pneumatic Cylinder |
| Material | Stainless Steel Cylinder Body Aluminium Piston Oil-Impregnated Bronze Rod Bushing Stainless Steel Piston Rod |
| Max. Air Pressure | 100 psig |
| Max. Air Service Pressure | 100 psig |
| Mounting | Pivot, Nose Mounting |
| Mounting Mode | Pivot And Nose Mounting (Without Pivot Pin) |
| Shape | Cylindrical |
| Stroke Length | 1" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Stroke Length | Mounting | Max. Air Service Pressure | Max. Air Pressure | Dia. | Bore Size | Shape | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |

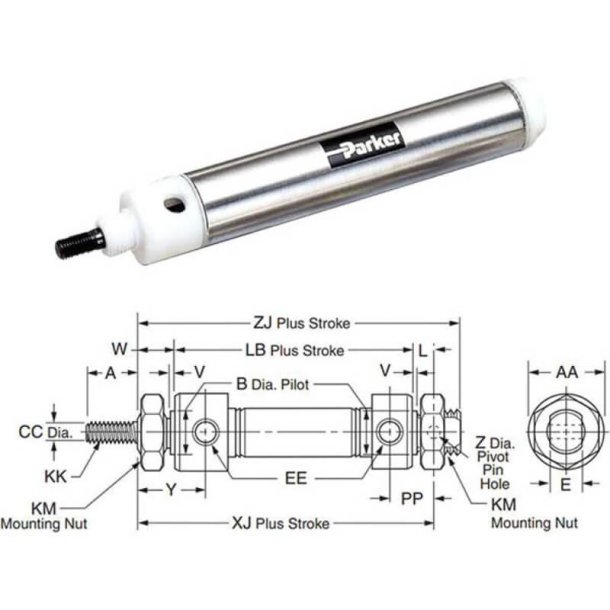

0.75DXPSRD26.00 | 26" | Pivot, Nose Mounting | 100 psig | 100 psig | 1/4" | 3/4" | Cylindrical | €183.29 | |
 |

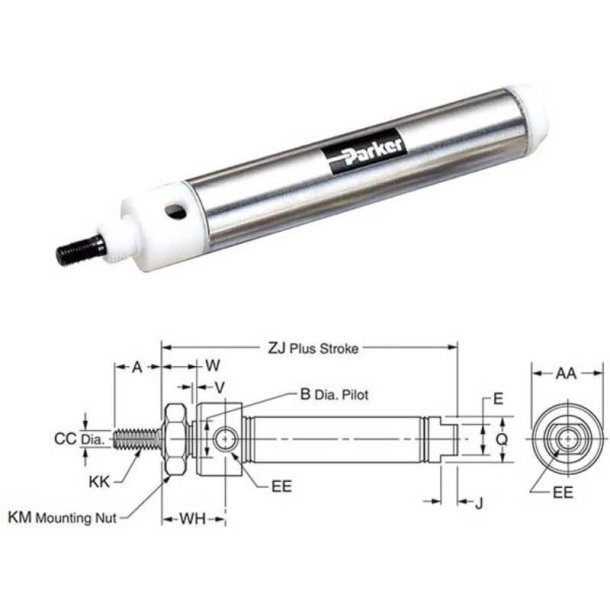

0.75DSRD01.50 | 1 1/2" | Nose Mounting | 100 psig | 100 psig | 1/4" | 3/4" | Cylindrical | €83.59 | |
 |
0.75DXPSRD02.50 | 2 1/2" | Pivot, Nose Mounting | 100 psig | 100 psig | 1/4" | 3/4" | Cylindrical | €92.63 | |
 |
0.75DXPSRDV01.00 | 1" | Pivot, Nose Mounting | 100 psig | 100 psig | 1/4" | 3/4" | Cylindrical | €108.28 | |
 |
0.75DXPSRDV03.00 | - | - | - | - | - | - | - | €110.45 | |
 |
0.75DXPSRD02.00 | 2" | Pivot, Nose Mounting | 100 psig | 100 psig | 1/4" | 3/4" | Cylindrical | €84.31 | |
 |
0.75DXPSRD00.50 | 1/2" | Pivot, Nose Mounting | 100 psig | 100 psig | 1/4" | 3/4" | Cylindrical | €80.55 |
