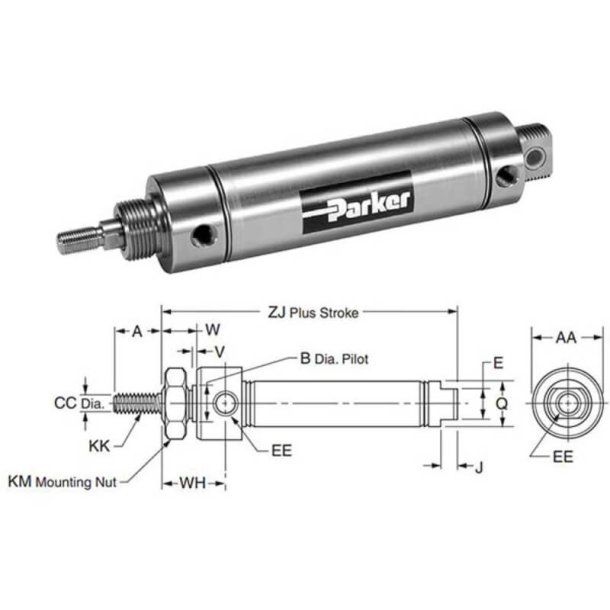

PARKER 0.75DSRGVY03.00 Pneumatic Cylinder
Get it by Thursday, Aug 20
€216.74 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylinder |
| Ambient Air Temp. | -10°F to +250°F |
| Ambient Air Temp. For Operation | -10°F to +250°F |
| Application Type | General Industry Assembly Conveyors Packaging |
| Bore Size | 3/4" |
| Chemical Resistance | Corrosion Resistance |
| Connection Type | 2 X 1/8" NPT Threaded Pneumatic Ports 1/4"-28 UNF Male Threaded Rod-End |
| Design | "LipSeal" Piston 303 Stainless Steel Head And Cap Fluorocarbon Seals Non-Repairable |
| Dia. | 1/4" |
| Function | Double-Acting Stainless Steel Pneumatic Cylinder |
| Main Function | Pneumatic Cylinder |
| Material | 304 Stainless Steel Cylinder Body Fluoro Carbon Seals Aluminium Piston Oil-Impregnated Bronze Rod Bushing Stainless Steel Piston Rod |
| Material | Stainless Steel Cylinder Body Fluoro Carbon Seals Aluminium Piston Oil-Impregnated Bronze Rod Bushing Stainless Steel Piston Rod |
| Max. Air Service Pressure | 250 psig |
| Mounting | Nose Mounting |
| Mounting Mode | Nose Mounting |
| Pressure | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) |
| Shape | Cylindrical |
| Stroke Length | 3" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Stroke Length | Mounting | Max. Air Service Pressure | Dia. | Bore Size | Pressure | Shape | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
0.75DXPSRGVY03.00 | 3" | Pivot, Nose Mounting | 250 psig | 1/4" | 3/4" | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Cylindrical | €259.01 | |
 |
0.75DXPSRGY00.50 | 1/2" | Pivot, Nose Mounting | 250 psig | 1/4" | 3/4" | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Cylindrical | €228.00 | |
 |
0.75DSRGY00.50 | 1/2" | Nose Mounting | 250 psig | 1/4" | 3/4" | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Cylindrical | €185.88 | |
 |
0.75DXPSRGY01.00 | 1" | Pivot, Nose Mounting | 250 psig | 1/4" | 3/4" | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Cylindrical | €226.87 | |
 |
0.75DSRGVY01.00 | 1" | Nose Mounting | 250 psig | 1/4" | 3/4" | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Cylindrical | €208.75 | |
 |
0.75DSRGVY04.00 | 4" | Nose Mounting | 250 psig | 1/4" | 3/4" | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Cylindrical | €220.66 | |
 |
0.75DSRGY03.19 | 3.19" | Nose Mounting | 250 psig | 1/4" | 3/4" | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Cylindrical | €197.79 |
