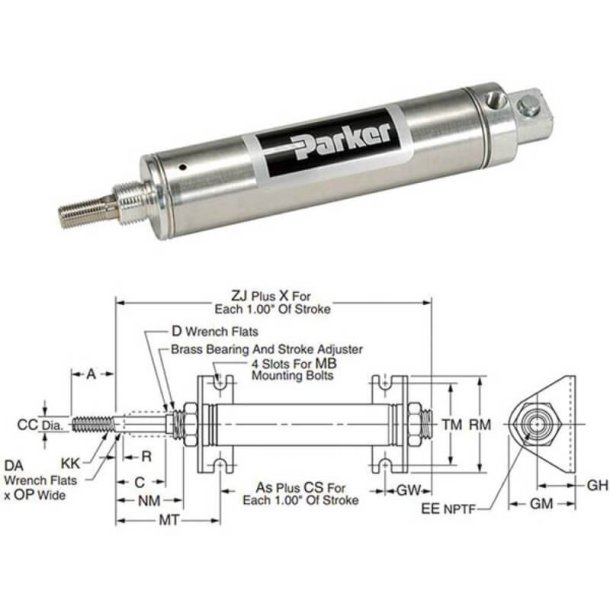

PARKER 0.75ASR02.50 Pneumatic Cylinder
2 1/2"
Get it by Tuesday, Jul 14
€72.08 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylinder |
| Ambient Air Temp. | -10°F to +165°F |
| Ambient Air Temp. For Operation | -10°F to +165°F |
| Application Type | General Industry Assembly Conveyors Packaging |
| Bore Size | 3/4" |
| Chemical Resistance | Corrosion Resistance |
| Connection Type | 1/8" NPT Threaded Pneumatic Port 1/4"-28 UNF Male Threaded Rod End , 1/8" NPT Threaded Pneumatic Port 1/4"-28 UNF Male Threaded Rod-End |
| Design | Head Adjustable Stroke Lipseal Piston Aluminium Head And Cap Non-Repairable |
| Dia. | 1/4" |
| Function | Single-Acting (Spring-Return) Stainless Steel Pneumatic Cylinder |
| Main Function | Pneumatic Cylinder |
| Material | Stainless Steel Cylinder Body Aluminium Piston Oil-Impregnated Bronze Rod Bushing Stainless Steel Piston Rod |
| Max. Air Service Pressure | 250 psig |
| Mounting | Nose Mounting |
| Mounting Mode | Nose Mounting |
| Pressure | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) |
| Shape | Cylindrical |
| Stroke Length | 2 1/2" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Magnetic Piston | Stroke | Mounting Type | Cylinder Type | Single Acting/double Acting | Overall Length | Rod Thread Length | Spring Retraction Force | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.75BFDSR01.00 | Non-Magnetic Piston | 1" | Front Block | Round Body | Double Acting | 4.97" | 3/4" | Not Applicable | €81.93 | |
| 0.75BFDSR02.00 | Non-Magnetic Piston | 2" | Front Block | Round Body | Double Acting | 5.97" | 3/4" | Not Applicable | €91.14 | |
| 0.75BFDSR03.00 | Non-Magnetic Piston | 3" | Front Block | Round Body | Double Acting | 6.97" | 3/4" | Not Applicable | €96.40 | |
| 0.75BFDSR04.00 | Non-Magnetic Piston | 4" | Front Block | Round Body | Double Acting | 7.97" | 3/4" | Not Applicable | €101.80 | |
| 0.75BFDSR05.00 | Non-Magnetic Piston | 5" | Front Block | Round Body | Double Acting | 8.97" | 3/4" | Not Applicable | €106.98 | |
| 0.75BFDSR06.00 | Non-Magnetic Piston | 6" | Front Block | Round Body | Double Acting | 9.97" | 3/4" | Not Applicable | €112.21 | |
| 0.75BRDSR01.00 | Non-Magnetic Piston | 1" | Rear Block | Round Body | Double Acting | 5.53" | 3/4" | Not Applicable | €82.99 |
