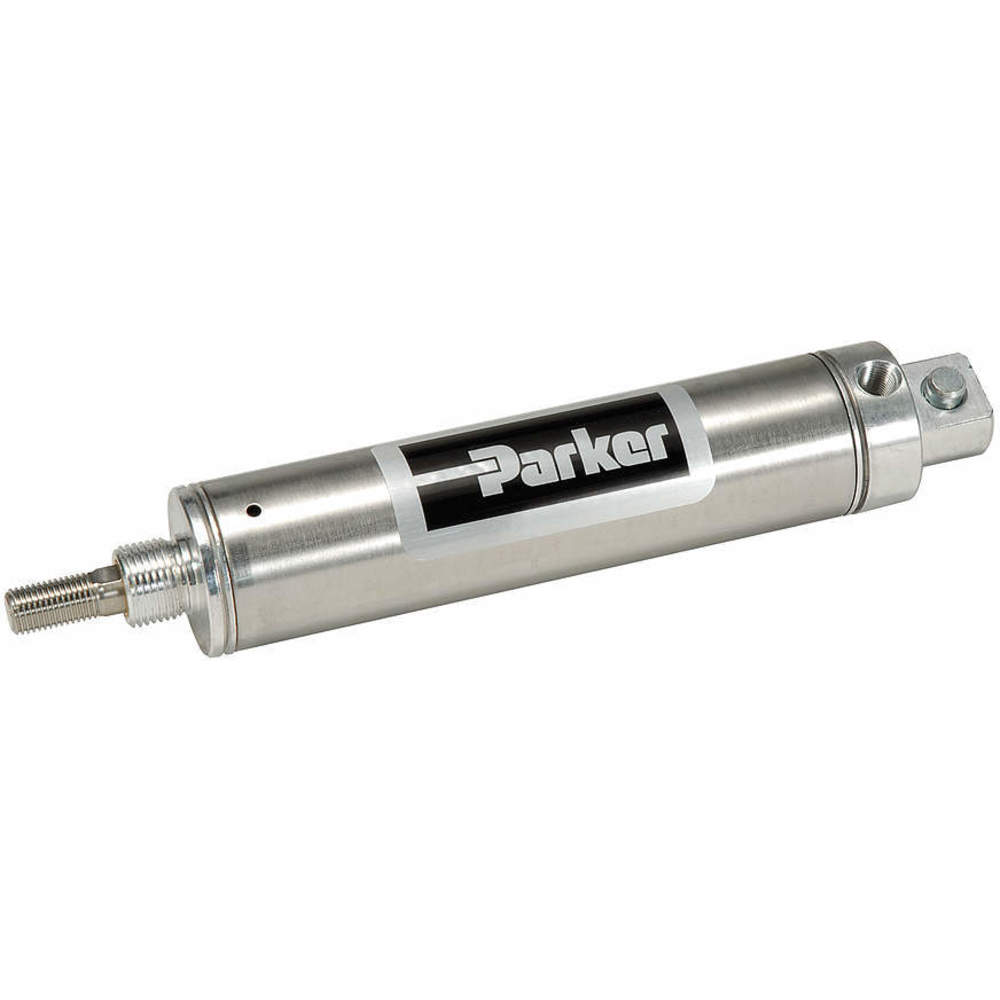

PARKER 0.56PSRM02.00 Round Air Cylinder 9/16 Inch Bore 2 Inch Stroke
Item: AJ2EBFModel: 0.56PSRM02.00Cross Ref: 49J632
7 In Stock
Ships within 2 days via
5.00% off
€75.14 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Air Cylinder |
| Actuation Type | Air Extend, Spring Retract |
| Air Cylinder Type | Round Body |
| Body Dia. | 5/8" |
| Body Material | Stainless Steel |
| Body Material Grade | Grade 304 |
| Bore Dia. | 0.562" , 9/16" |
| Color | Silver |
| Cushion Type | None |
| Cylinder Action | Single Acting |
| Cylinder Type | Round Body |
| End Cap Material | Aluminum |
| Features | Switch Ready |
| Finish | Silver |
| For Fluid Type | Air |
| Inlet Gender | Female |
| Magnetic Piston | Magnetic Piston |
| Max. Operating Pressure | 250 psi |
| Max. Operating Temp. | 140°F |
| Max. Pressure | 250 psi |
| Min. Operating Temp. | 14°F |
| Mounting Style | Pivot |
| Mounting Type | Pivot |
| No. Of Rods | 1 |
| Nose Mount Thread Size | 7/16"-20 |
| Overall Length | 5.99" |
| Piston Material | Aluminum |
| Piston Rod Material | Stainless Steel |
| Pivot Hole Dia. | 0.157" |
| Port Size | #10-32 |
| Repairable Cylinder | Non Repairable |
| Rod Dia. | 0.188" , 3/16" |
| Rod Rotation | Rotating Rod |
| Rod Thread Length | 1/2" |
| Rod Thread Size | #10-32 |
| Series | SRM Series |
| Single Acting/double Acting | Single Acting |
| Spring Extension Force | 2 lbs. |
| Spring Retraction Force | 4 lbs. |
| Spring Retraction Force | 2 lb. |
| Stroke | 2" |
| Stroke Length | 2" |
| System Of Measurement | Imperial |
| Tube Material | Stainless Steel |
| Type | Round Body |
Shipping Info:
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 1.59 |
| Ship length (cm) | 15.21 |
| Ship width (cm) | 1.78 |
| Country of Origin | US |
Product Variants
| Model | Bore Dia. | Stroke | Mounting Type | Single Acting/double Acting | Overall Length | Rod Dia. | Type | Spring Retraction Force | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.56DSRM0.500 | 9/16" | 1/2" | Nose | Double Acting | 3.53" | 0.188" | Round Non Repairable | - | €72.24 | |
| 0.56DSRM01.00 | 9/16" | 1" | Nose | Double Acting | 4" | 0.188" | Round Body | Not Applicable | €71.24 | |
| 0.56DSRM01.50 | 9/16" | 1 1/2" | Nose | Double Acting | 4.53" | 0.188" | Round Body | Not Applicable | €77.48 | |
| 0.56DSRM02.00 | 9/16" | 2" | Nose | Double Acting | 5" | 0.188" | Round Body | Not Applicable | €75.74 | |
| 0.56DSRM03.00 | 9/16" | 3" | Nose | Double Acting | 6" | 0.188" | Round Body | Not Applicable | €79.53 | |
| 0.56DSRM04.00 | 9/16" | 4" | Nose | Double Acting | 7" | 0.188" | Round Body | Not Applicable | €84.51 | |
| 0.56DSRM05.00 | 9/16" | 5" | Nose | Double Acting | 8" | 0.188" | Round Body | - | €92.75 |
