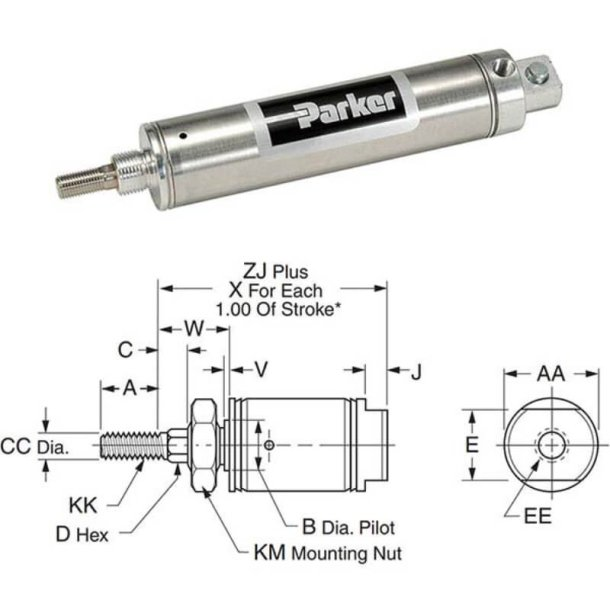

PARKER 0.56NRSRM03.25 Pneumatic Cylinder
3 1/4"
Get it by Tuesday, Aug 18
€70.94 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylinder |
| Ambient Air Temp. | 14°F to 140°F |
| Ambient Air Temp. For Operation | 14°F to 140°F |
| Application Type | General Industry Assembly Conveyors Packaging |
| Bore Size | 9/16" |
| Chemical Resistance | Corrosion Resistance |
| Connection Type | 10-32 UNF Threaded Pneumatic Port 10-32 UNF Male Threaded Rod-End |
| Design | Piston Magnet "Lipseal" Piston Aluminium Head And Cap Non-Repairable |
| Dia. | 3/16" |
| Function | Single Acting (Spring Return) Non Rotating Single End Hex Rod Stainless Steel Pneumatic Cylinder |
| Main Function | Pneumatic Cylinder |
| Material | Stainless Steel Cylinder Body Aluminium Piston Oil-Impregnated Bronze Rod Bushing Stainless Steel Piston Rod |
| Max. Air Service Pressure | 250 psig |
| Mounting | Nose Mounting |
| Mounting Mode | Nose Mounting |
| Pressure | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) |
| Shape | Cylindrical |
| Stroke Length | 3 1/4" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Stroke Length | Mounting | Type | Rod Dia. | Mounting Type | Bore Dia. | Stroke | Single Acting/double Acting | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.56DSRM0.500 | 1/2" | - | Round Non Repairable | 0.188" | Nose | 9/16" | 1/2" | Double Acting | €72.24 | |
| 0.56DSRM01.00 | 1" | - | Round Body | 0.188" | Nose | 9/16" | 1" | Double Acting | €71.24 | |
| 0.56DSRM01.50 | 1 1/2" | - | Round Body | 0.188" | Nose | 9/16" | 1 1/2" | Double Acting | €77.48 | |
| 0.56DSRM02.00 | 2" | - | Round Body | 0.188" | Nose | 9/16" | 2" | Double Acting | €75.74 | |
| 0.56DSRM03.00 | 3" | - | Round Body | 0.188" | Nose | 9/16" | 3" | Double Acting | €79.53 | |
| 0.56DSRM04.00 | 4" | - | Round Body | 0.188" | Nose | 9/16" | 4" | Double Acting | €84.51 | |
| 0.56DSRM05.00 | 5" | - | Round Body | 0.188" | Nose | 9/16" | 5" | Double Acting | €92.75 |
