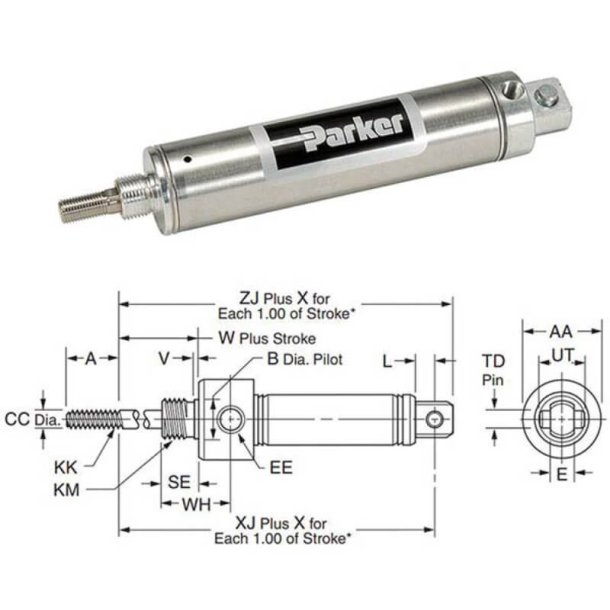

PARKER 0.44RPSR06.00 Pneumatic Cylinder
Get it by Tuesday, Aug 25
€82.67 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylinder |
| Ambient Air Temp. | -10°F to +165°F |
| Ambient Air Temp. For Operation | -10°F to +165°F |
| Application Type | General Industry Assembly Conveyors Packaging |
| Bore Size | 7/16" |
| Chemical Resistance | Corrosion Resistance |
| Connection Type | 10-32 UNF Threaded Pneumatic Port 10-32 UNF Male Threaded Rod-End |
| Design | "Lipseal" Piston Aluminium Head And Cap Non-Repairable |
| Dia. | 3/16" |
| Function | Single-Acting (Spring-Extend) Stainless Steel Pneumatic Cylinder |
| Main Function | Pneumatic Cylinder |
| Material | Stainless Steel Cylinder Body Aluminium Piston Oil-Impregnated Bronze Rod Bushing Stainless Steel Piston Rod |
| Max. Air Service Pressure | 250 psig |
| Mounting | Pivot, Nose Mounting |
| Mounting Mode | Pivot And Nose Mounting |
| Pressure | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) |
| Shape | Cylindrical |
| Stroke Length | 6" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Stroke Length | Mounting | Type | Rod Dia. | Mounting Type | Bore Dia. | Stroke | Single Acting/double Acting | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.44BFDSR01.00 | - | - | Round Body | 0.188" | Front Block | 0.438" | 1" | Double Acting | €79.19 | |
| 0.44BFDSR02.00 | 2" | - | Round Body | 0.188" | Front Block | 7/16" | 2" | Double Acting | €87.36 | |
| 0.44BFDSR03.00 | 3" | - | Round Body | 0.188" | Front Block | 7/16" | 3" | Double Acting | €92.56 | |
| 0.44BFDSR04.00 | 4" | - | Round Body | 0.188" | Front Block | 7/16" | 4" | Double Acting | €94.44 | |
| 0.44BFDSR05.00 | 5" | - | Round Body | 0.188" | Front Block | 7/16" | 5" | Double Acting | €99.49 | |
| 0.44BFDSR06.00 | 6" | - | Round Body | 0.188" | Front Block | 7/16" | 6" | Double Acting | €108.30 | |
| 0.44BRDSR01.00 | 1" | - | Round Body | 0.188" | Rear Block | 7/16" | 1" | Double Acting | €78.64 |
