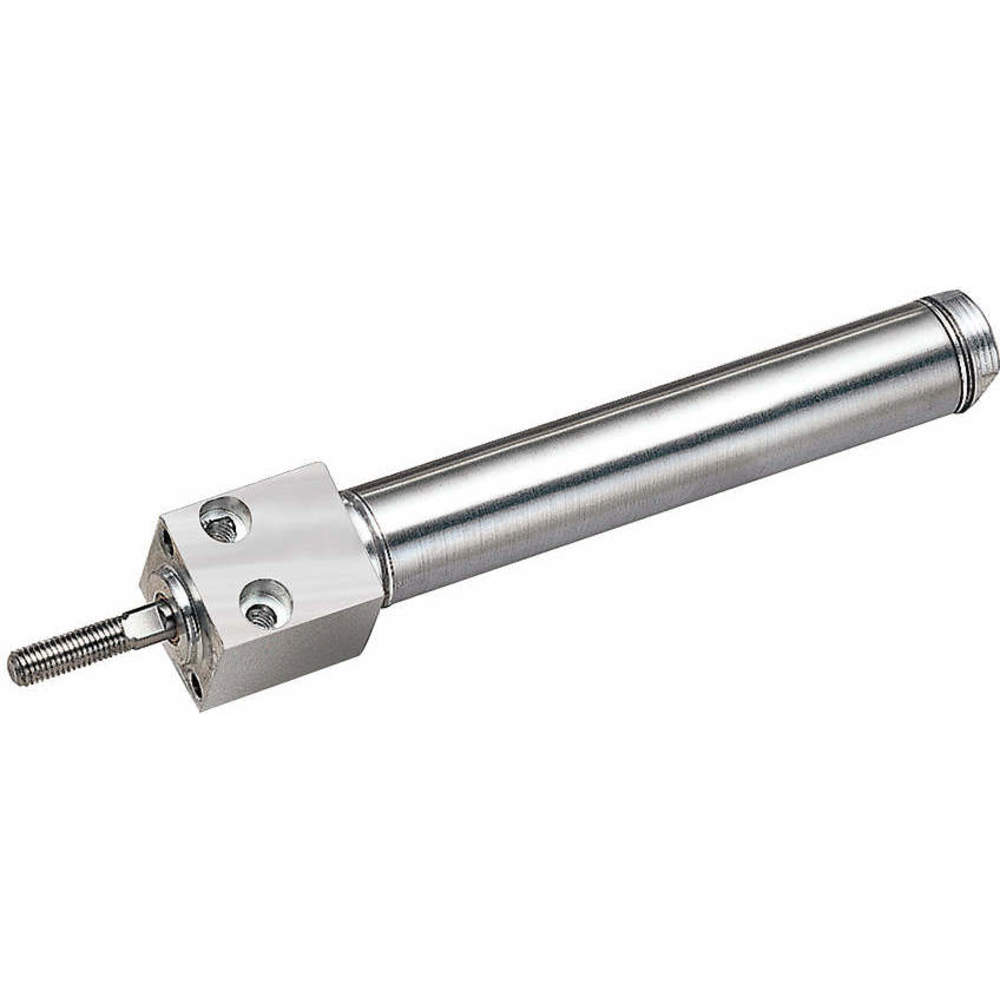

PARKER 0.44BFNSR02.00 Round Air Cylinder 7/16 Inch Bore 2 Inch Stroke
Item: AG9MVQModel: 0.44BFNSR02.00Cross Ref: 20XT29
7 In Stock
Ships within 2 days via
5.00% off
€74.15 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Air Cylinder |
| Actuation Type | Air Extend, Spring Retract |
| Air Cylinder Type | Round Body |
| Body Dia. | 1/2" |
| Body Material | Stainless Steel |
| Body Material Grade | Grade 304 |
| Bore Dia. | 0.438" , 7/16" |
| Color | Silver |
| Cushion Type | None |
| Cylinder Action | Single Acting |
| Cylinder Type | Round Body |
| End Cap Length | 3/16" |
| End Cap Material | Aluminum |
| Features | Non-Switch Ready |
| Finish | Silver |
| For Fluid Type | Air |
| Inlet Gender | Female |
| Magnetic Piston | Non-Magnetic Piston |
| Max. Operating Pressure | 250 psi |
| Max. Operating Temp. | 165°F |
| Max. Pressure | 250 psi |
| Min. Operating Temp. | -10°F |
| Mounting Style | Block |
| Mounting Type | Front Block |
| No. Of Rods | 1 |
| Overall Height | 3/4" |
| Overall Length | 6 1/5" |
| Overall Width | 3/4" |
| Piston Material | Aluminum |
| Piston Rod Material | Stainless Steel |
| Port Size | #10-32 |
| Repairable Cylinder | Non Repairable |
| Rod Dia. | 0.188" , 3/16" |
| Rod Rotation | Rotating Rod |
| Rod Thread Length | 1/2" |
| Rod Thread Size | #10-32 |
| Series | SR Series |
| Single Acting/double Acting | Single Acting |
| Spring Extension Force | 1 lbs. |
| Spring Retraction Force | 2 lbs. |
| Spring Retraction Force | .5 lb. |
| Stroke | 2" |
| Stroke Length | 2" |
| System Of Measurement | Imperial |
| Tube Material | Stainless Steel |
| Type | Round Body |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 1.91 |
| Ship length (cm) | 15.75 |
| Ship width (cm) | 1.91 |
| Country of Origin | US |
Product Variants
| Model | Stroke Length | Mounting | Type | Rod Dia. | Mounting Type | Bore Dia. | Stroke | Single Acting/double Acting | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.44BFDSR01.00 | - | - | Round Body | 0.188" | Front Block | 0.438" | 1" | Double Acting | €79.19 | |
| 0.44BFDSR02.00 | 2" | - | Round Body | 0.188" | Front Block | 7/16" | 2" | Double Acting | €87.36 | |
| 0.44BFDSR03.00 | 3" | - | Round Body | 0.188" | Front Block | 7/16" | 3" | Double Acting | €92.56 | |
| 0.44BFDSR04.00 | 4" | - | Round Body | 0.188" | Front Block | 7/16" | 4" | Double Acting | €94.44 | |
| 0.44BFDSR05.00 | 5" | - | Round Body | 0.188" | Front Block | 7/16" | 5" | Double Acting | €99.49 | |
| 0.44BFDSR06.00 | 6" | - | Round Body | 0.188" | Front Block | 7/16" | 6" | Double Acting | €108.30 | |
| 0.44BRDSR01.00 | 1" | - | Round Body | 0.188" | Rear Block | 7/16" | 1" | Double Acting | €78.64 |
