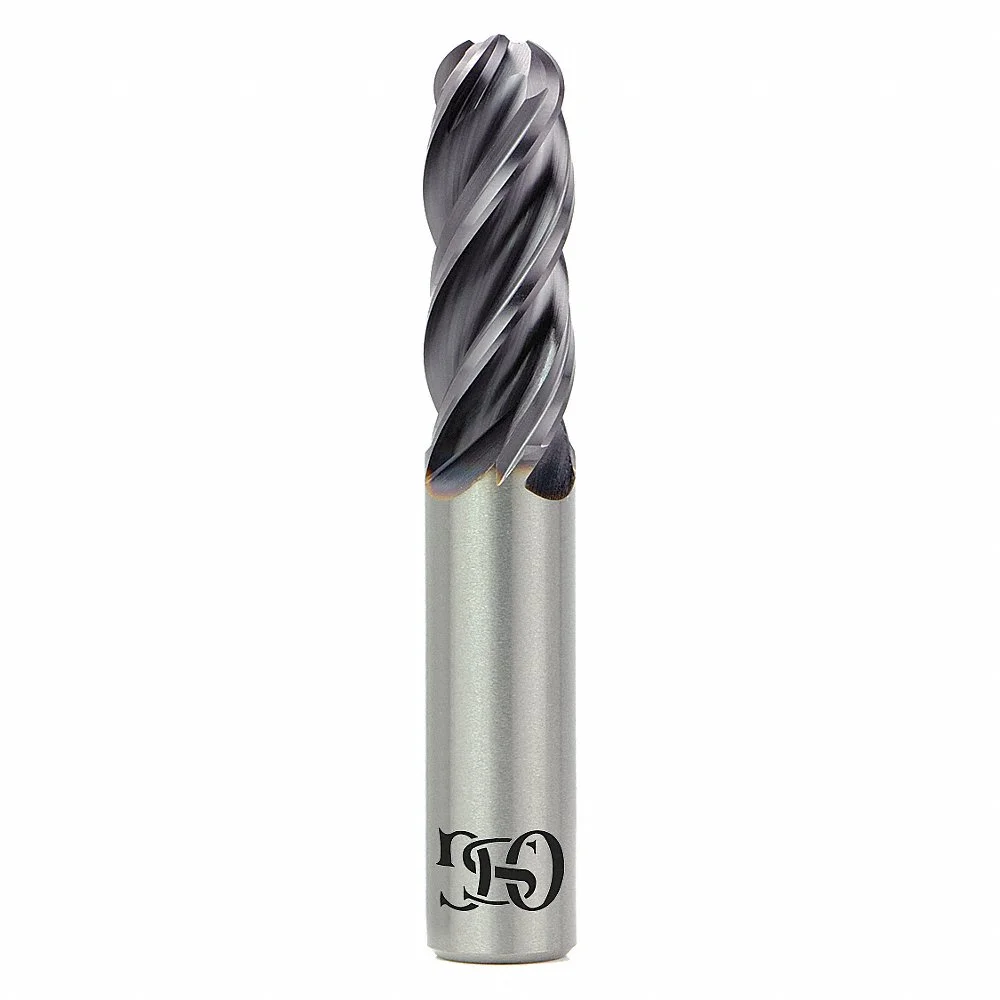

OSG VG441-1010-BN Ball End Mill, 4 Flutes, 1 1/4 Inch Milling Dia., 5 Inch Overall Lg
Item: CT4THXModel: VG441-1010-BNCross Ref: 35CH98
7 In Stock
1.25"
1.25"
Ships within 2 days via
€798.95 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ball End Mill |
| Cast Iron (k) Compatibility | Yes |
| Chip Breaker | No |
| Coolant Fed | Non Coolant Through |
| Cutting Direction | Right Hand |
| Cutting Length | 2 1/4" |
| Cutting Type | Center Cutting |
| Dimensions Type | Fractional Inch |
| Drilling Tool Configuration | Individual |
| End Mill Application | Roughing/Finishing |
| End Mill Cutting Type | Center Cutting |
| End Mill Style | Ball Nose |
| End Type | Single End |
| Finish | Titanium Aluminum Nitride Coating |
| Finish-machining | TiAlN |
| Grade | General Purpose |
| Hardened Compatibility | Yes |
| Helix Angle | 35° |
| List Number | VG441BN |
| Material | Carbide |
| Material Grade-machining | General Purpose |
| Material-machining | Carbide |
| Milling Dia. | 1 1/4" |
| Neck Length | Not Applicable |
| No. Of Flutes | 4 |
| Non Ferrous (n) Compatibility | No |
| Overall Length | 5" |
| Primary Material Application | Cast Iron, Nickel, Stainless Steel, Steel, Tool And Die Steel |
| Primary Material Application Iso Code | K, M, P, S |
| Shank Dia. | 1 1/4" |
| Shank Type | Straight , Weldon Flat |
| Shank Type-machining | Weldon Flat |
| Single End/double End | Single End |
| Stainless Compatibility | Yes |
| Steel (p) Compatibility | Yes |
| Super Alloy (s) Compatibility | No |
| System Of Measurement | Imperial |
Shipping Info:
| Ship weight (kg) | 0.5 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 12.7 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Primary Material Application Iso Code | Milling Dia. | Shank Dia. | Neck Length | Shank Type-machining | Finish-machining | Cutting Length | Neck Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
497-1000 | H, K, P | 1" | 1" | Not Applicable | Straight | Bright (Uncoated) | 1 1/2" | - | €883.44 | |
 |
HP416-5000 | K, M, P, S | 1/2" | 1/2" | Not Applicable | Straight | TiAlN | 1" | - | €160.64 | |
 |
36100911 | H, K, P | 1/2" | 1/2" | Not Applicable | Straight | WXL | 1/2" | - | €230.46 | |
 |
44101611 | H, K, P | 1/2" | 1/2" | 1" | Straight | WXS | 1/2" | 31/64" | €328.54 | |
|
497-5000 | H, K, P | 1/2" | 1/2" | Not Applicable | Straight | Bright (Uncoated) | 3/4" | - | €226.01 | |
 |
90110511 | H, K, P | 1/4" | 1/4" | Not Applicable | Straight | WXS | 3/8" | - | €258.19 | |
 |
36901711 | H, K, P | - | 1/4" | 1 1/4" | Straight | WXL | 1/4" | - | €145.94 |
