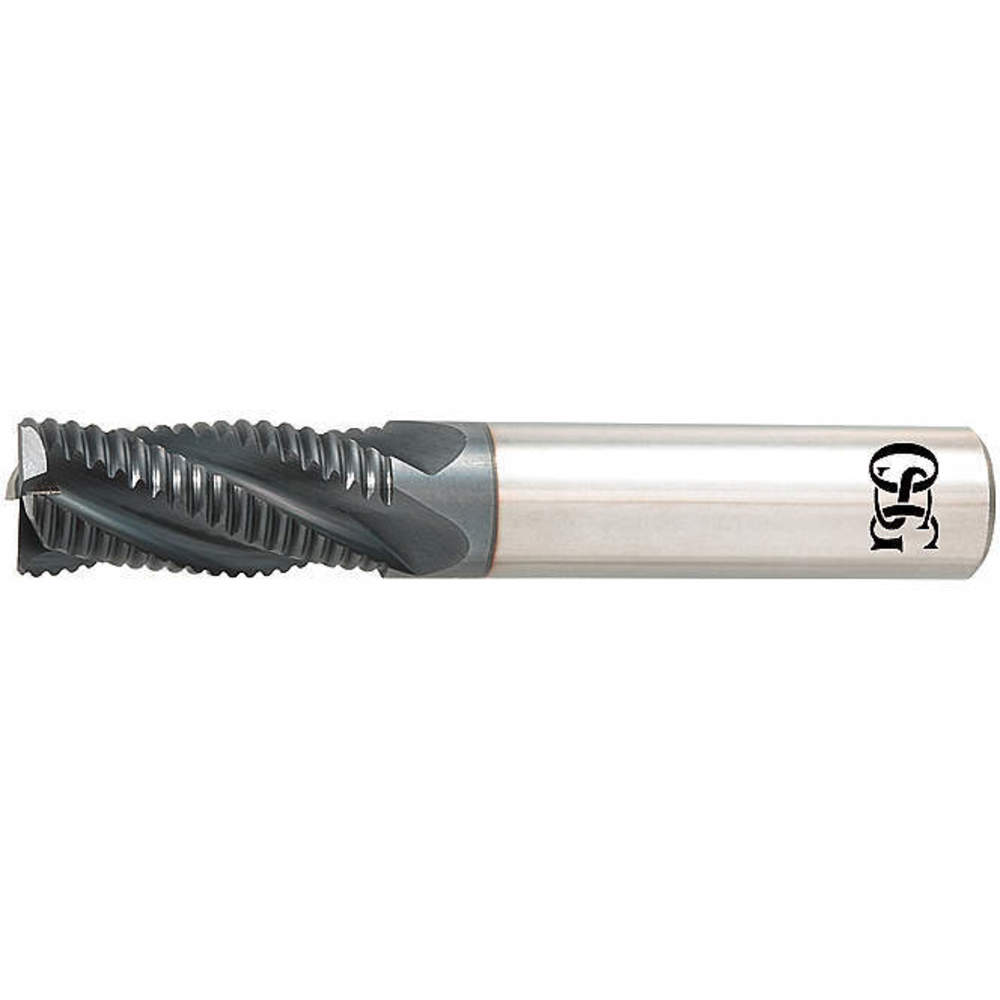

OSG HP400-3937 Square End Mill, Center Cutting, 4 Flutes, 10 mm Milling Dia., 25 mm Lg of Cut, Individual
Item: AC4URFModel: HP400-3937Cross Ref: 30L757
7 In Stock
0.393"
0.393"
Ships within 2 days via
€97.52 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Square End Mill |
| Cast Iron (k) Compatibility | Yes |
| Cutting Direction | Right Hand |
| Cutting Direction-machining | Right Hand |
| Cutting Length | 25 mm |
| Cutting Type | Center |
| Dia. | 10 mm |
| Dimensions Type | Metric |
| Drilling Tool Configuration | Individual |
| End | Center Cutting |
| End Mill Application | Finishing |
| End Mill Application | Roughing/Finishing |
| End Mill Cutting Type | Center Cutting |
| End Mill Style | Square |
| End Type | Single End |
| Finish | TiAlN |
| Grade | High Performance |
| Hardened Compatibility | Yes |
| Helix Angle | 30° |
| List Number | HP400 |
| Material | Carbide |
| Material Application | Steel, Carbon Steel, Cast Iron, Inconel, Nickel, Stainless Steel |
| Material Applications | Carbon Steel, Cast Iron, Inconel, Nickel, Stainless Steel, Steel |
| Material Grade | HIGH PERFORMANCE |
| Material Grade-machining | High Performance |
| Milling Dia. | 10 mm |
| Milling Dia. | 10.00mm |
| No. Of Flutes | 4 |
| Non Ferrous (n) Compatibility | No |
| Overall Length | 70 mm |
| Primary Material Application | Cast Iron, Nickel, Stainless Steel, Steel, Tool And Die Steel |
| Primary Material Application Iso Code | K, M, P, S |
| Shank Dia. | 10 mm |
| Shank Type | Straight |
| Single End/double End | Single End |
| Stainless Compatibility | Yes |
| Steel (p) Compatibility | Yes |
| Super Alloy (s) Compatibility | Yes |
| System Of Measurement | Metric |
| Type | Regular |
Shipping Info:
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 1.91 |
| Ship length (cm) | 1.91 |
| Ship width (cm) | 8.89 |
| HS code | 8207703030 |
| Country of Origin | US |
Product Variants
| Model | Milling Dia. | End Mill Style | Shank Dia. | End Type | Helix Angle | Overall Length | Grade | List Number | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| HP421-0469 | 0.047" | Square | 1/8" | Single End | 35° | 1 1/2" | High Performance | HP421 | €23.88 | |
| HP421-0625 | 0.062" | Square | 1/8" | Single End | 35° | 1 1/2" | High Performance | HP421 | €20.98 | |
| HP421-0781 | 0.078" | Square | 1/8" | Single End | 35° | 1 1/2" | High Performance | HP421 | €22.32 | |
| HP421-0938 | 0.094" | Square | 1/8" | Single End | 35° | 1 1/2" | High Performance | HP421 | €21.77 | |
| HP421-1000 | 1" | Square | 1" | Single End | 35° | 4" | High Performance | HP421 | €457.68 | |
| HP421-1094 | 0.109" | Square | 1/8" | Single End | 35° | 1 1/2" | High Performance | HP421 | €22.32 | |
| HP421-1250 | 1/8" | Square | 1/8" | Single End | 35° | 1 1/2" | High Performance | HP421 | €21.58 |
