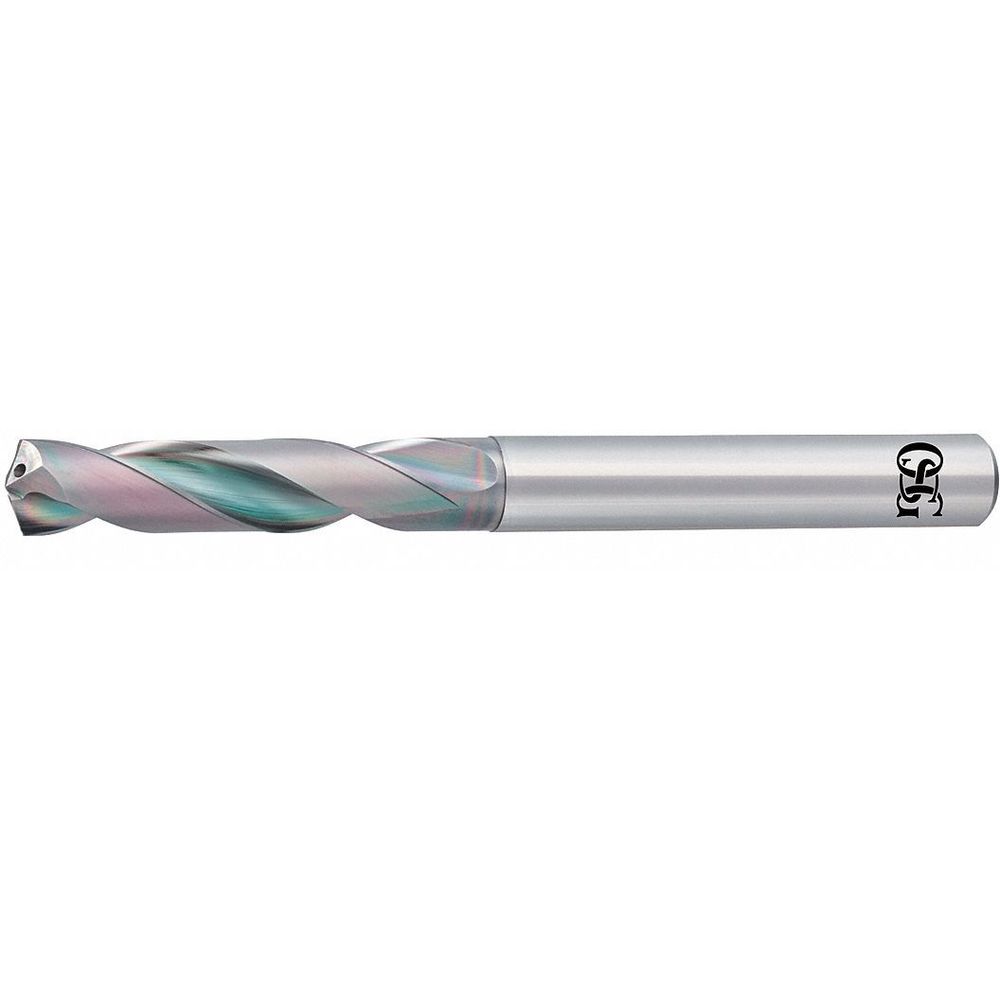

OSG 8691000 Carbide Drill, 10.00 mm, Solid Carbide
Item: CD2HWNModel: 8691000Cross Ref: 405M12
7 In Stock
Ships within 2 days via
10.00% off
€257.41 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Carbide Drill |
| Coolant Fed | Coolant Through |
| Coolant Through | Yes |
| Cutting Direction | Right |
| Decimal Equivalent | 0.3937 |
| Depthdia. Ratio | 3xd |
| Diameter | 0.3937" |
| Dimension Type | Metric |
| Drill Bit Dimension Type | Metric |
| Drill Bit Finish | Egias |
| Drill Bit Material | Solid Carbide |
| Drill Bit Point Angle | 140° |
| Drill Bit Point Type | X Thinning Point |
| Drill Bit Size | 10.00mm |
| Drill Bit Size | 10 mm |
| Drill Diameter Tolerance | -0.022 mm to 0 mm |
| Drill Length Class | Screw Machine Length |
| Finish | EgiAs |
| Finish - Machining | Egias |
| Flute Length | 50 mm |
| Flute Type | Spiral |
| Grade | High Performance |
| Helix Angle | 30° |
| List Number | 6500 |
| Material | Solid Carbide |
| Material - Machining | Carbide |
| Material Grade - Machining | HIGH PERFORMANCE |
| Number Of Coolant Holes | 3 |
| Number Of Flutes | 2 |
| Overall Length | 106 mm |
| Point Angle | 140° |
| Point Type | X Thinning |
| Primary Material Application | Hardened Steel, Steel, Titanium, Tool And Die Steel |
| Primary Material Application Iso Code | 4.3, H, P |
| Secondary Material Application | Aluminum, Inconel, Stainless Steel |
| Secondary Material Application Iso Code | M, N, S |
| Shank Dia. | 10 mm |
| Shank Length | 56 mm |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Sheeter Drill | No |
| Standards | Not Rated |
| System Of Measurement | Metric |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Drill Bit Size | Decimal Equivalent | Coolant Fed | Drill Bit Point Angle | Flute Type | Flute Length | Overall Length | Drill Bit Point Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
3318420 | 4.2 mm | 0.1654 | Non-Coolant Through | 120° | Slow Spiral | 1" | 68 mm | RW Thinning Point | €191.48 | |
 |
HP243-4063 | 13/32" | 0.4063 | Non-Coolant Through | 140° | Spiral | 55 mm | 102 mm | - | €164.75 | |
 |
HP245-1563 | 5/32" | 0.1563 | Non-Coolant Through | 140° | Spiral | 1 3/8" | 74 mm | R Thinning Point | €70.98 | |
|
HP245-4374 | 7/16" | 0.4375 | Non-Coolant Through | 140° | Spiral | 3" | 118 mm | R Thinning Point | €219.08 |
