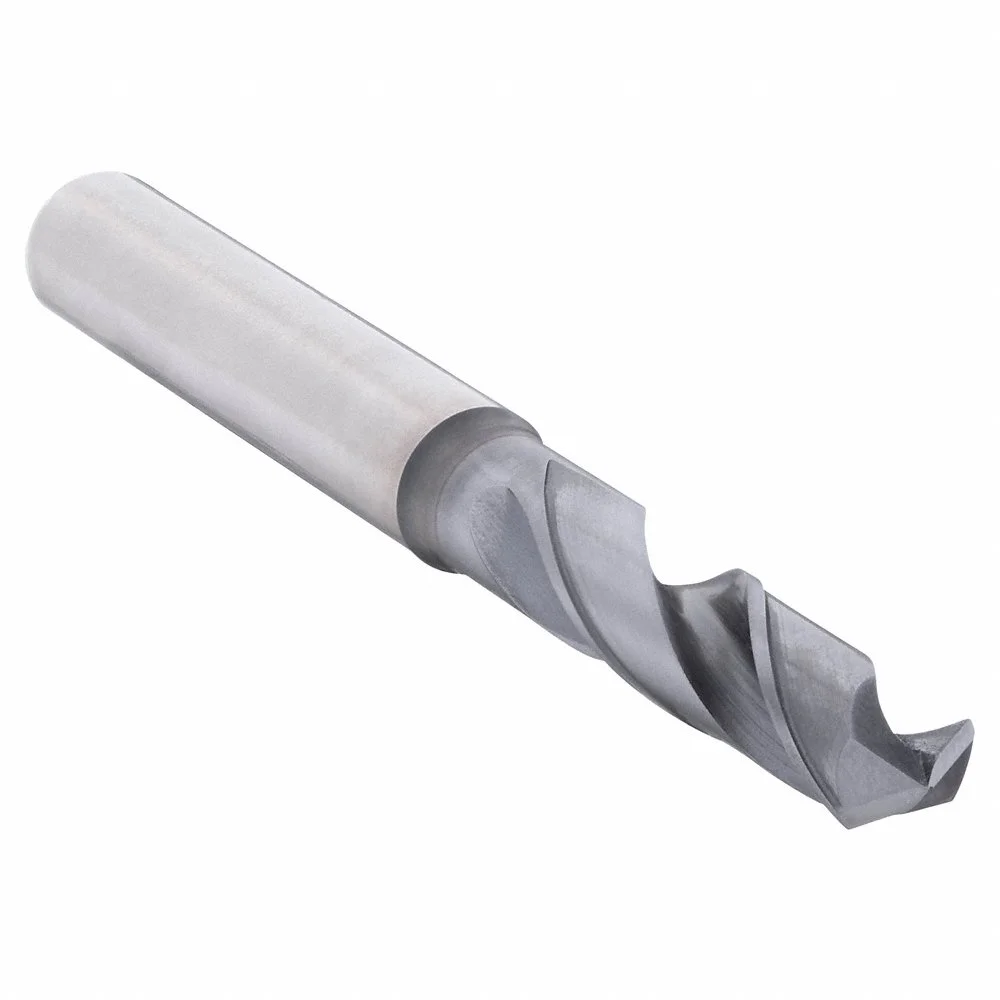

OSG 8609151 Screw Machine Drill Bit, 29/64 Inch Size, 47 mm Flute Length
Item: CT6JHTModel: 8609151Cross Ref: 34YP20
7 In Stock
0.453"
0.47"
Ships within 2 days via
10.00% off
€126.58 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Screw Machine Drill Bit |
| Coolant Fed | Non Coolant Through |
| Coolant Through | No |
| Cutting Direction | Right |
| Decimal Equivalent | 0.4531 |
| Depth X Dia. Ratio | 3xd |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Point Angle | 130° |
| Drill Bit Point Type | R Thinning Point |
| Drill Bit Size | 29/64" |
| Drill Diameter Tolerance | -0.027 mm to 0 mm |
| Drill Length Class | Screw Machine Length |
| Finish | V Coat |
| Finish - Machining | V |
| Flute Length | 47 mm |
| Flute Type | Spiral |
| Grade | General Purpose |
| Helix Angle | 30° |
| List Number | 1900 |
| Material | Powdered Metal |
| Material - Machining | Powdered Metal |
| Material Grade - Machining | General Purpose |
| Measurement System | Fractional Inch |
| Number Of Flutes | 2 |
| Overall Length | 104 mm |
| Point Angle | 130° |
| Primary Material Application | Cast Iron, Hardened Steel, Nickel, Steel, Tool And Die Steel |
| Primary Material Application Iso Code | H, K, P, S |
| Secondary Material Application | Aluminum, Hardened Steel, Low Carbon Steel, Stainless Steel, Titanium |
| Secondary Material Application Iso Code | H, M, N, P, S |
| Shank Dia. | 12 mm |
| Shank Length | 57 mm |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Sheeter Drill | No |
| Standards | Not Rated |
| System Of Measurement | Imperial |
| Web Thinning | R Thinned |
Shipping Info:
| Ship weight (kg) | 0.32 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
