OSG 8595066 Screw Machine Drill Bit, #71 Size, 4 mm Flute Length, 38 mm Overall Length
Item: CT6HGWModel: 8595066Cross Ref: 34ZC34
7 In Stock
0.0259"
Ships within 2 days via
10.00% off
€36.77 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Screw Machine Drill Bit |
| Coolant Through | No |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.026 |
| Depth X Dia. Ratio | 3xd |
| Drill Bit Dimension Type | Metric |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Point Angle | 150° |
| Drill Bit Point Type | 4 Facet Point |
| Drill Bit Size | #71 |
| Drill Diameter Tolerance | -0.014 mm to 0 mm |
| Drill Length Class | Screw Machine Length |
| Finish | Tin |
| Finish - Machining | Tin |
| Flute Length | 4 mm |
| Flute Type | Fast Spiral |
| Grade | General Purpose |
| List Number | 1100 |
| Material | High Speed Steel |
| Material - Machining | High Speed Steel |
| Material Grade - Machining | General Purpose |
| Measurement System | Wire |
| Number Of Flutes | 2 |
| Overall Length | 38 mm |
| Primary Material Application | Aluminum, Stainless Steel, Steel |
| Primary Material Application Iso Code | M, N, P |
| Secondary Material Application | Medium Carbon Steel, Stainless Steel |
| Secondary Material Application Iso Code | M, P |
| Shank Dia. | 3 mm |
| Shank Length | 34 mm |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Sheeter Drill | No |
| Sizes Included | #71 |
| Standards | Not Rated |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Overall Length | Shank Dia. | Drill Bit Size | Decimal Equivalent | Max. Drilling Depth | Price | |
|---|---|---|---|---|---|---|---|---|
 |

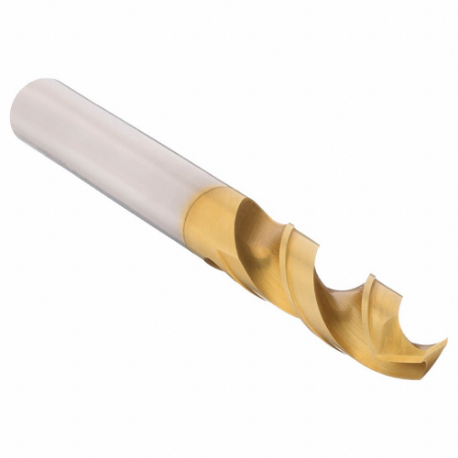

8595579 | 72 mm | 6 mm | #1 | 0.228 | - | €70.70 | |
 |

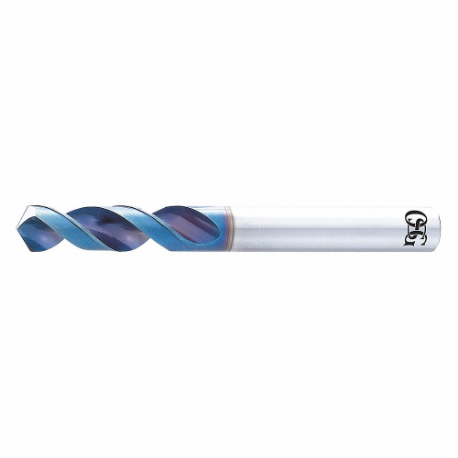

11553015 | 72 mm | 6 mm | #1 | - | - | €70.70 | |
|

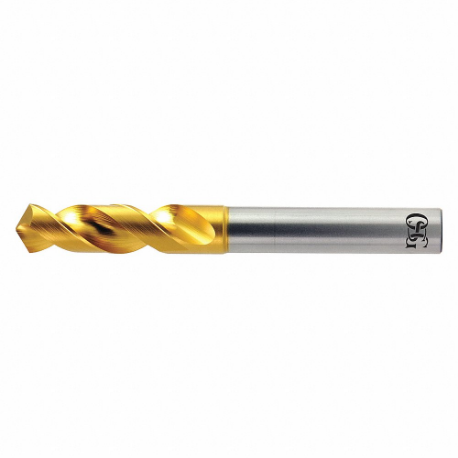

859557911 | 72 mm | 6 mm | #1 | 0.228 | - | €74.77 | |
|
8595486 | 70 mm | 6 mm | #11 | 0.191 | - | €53.10 | |
|
859548611 | 70 mm | 6 mm | #11 | 0.191 | - | €56.69 | |
|
6154811 | 70 mm | 6 mm | #12 | 0.189 | - | €53.35 | |
|
6154711 | 68 mm | 6 mm | #13 | 0.185 | - | €51.38 |
