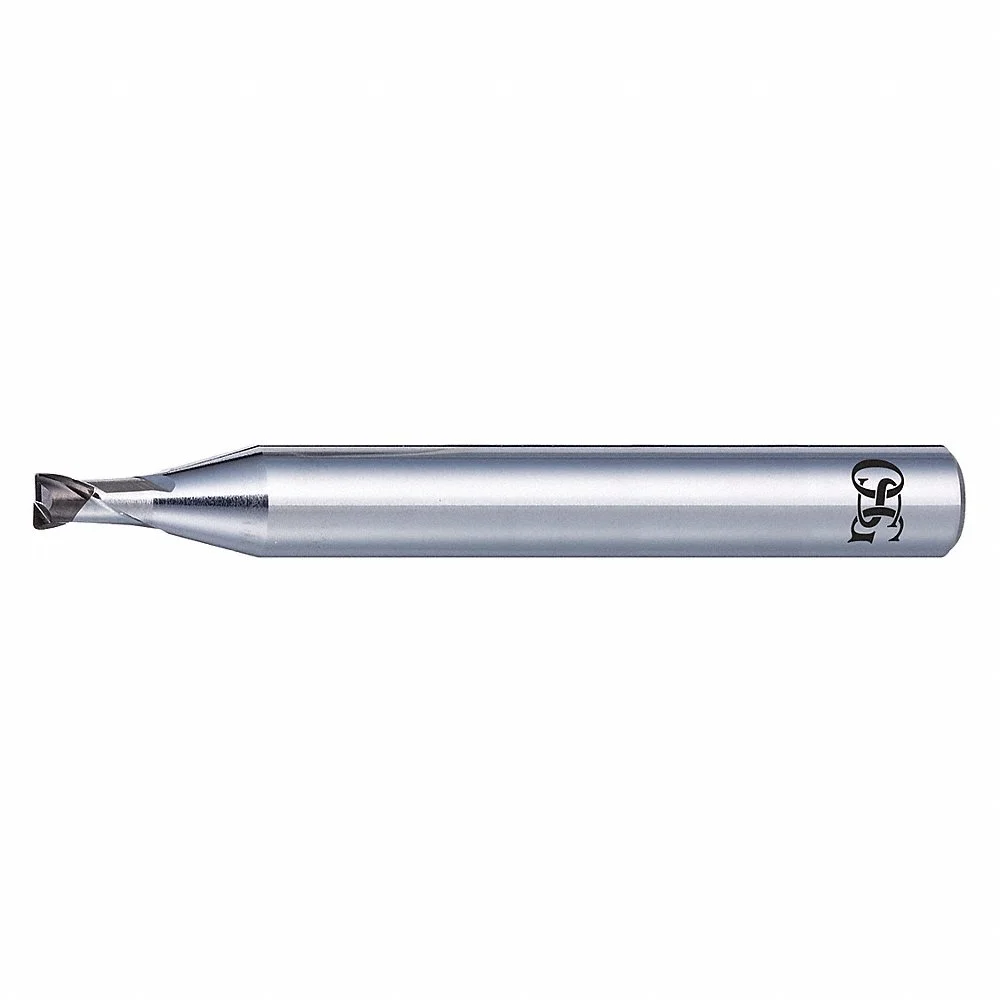

OSG 8526210 Corner Radius End Mill, Carbide Finish, 0.50 mm Milling Dia, 1.50 mm Neck Length
Item: CT4XCBModel: 8526210Cross Ref: 35CD18
7 In Stock
Ships within 2 days via
10.00% off
€628.55 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Corner Radius End Mill |
| Cast Iron (k) Compatibility | No |
| Corner Radius | 0.05 mm |
| Cutting Direction | Right Hand |
| Cutting Length | 0.3 mm |
| Cutting Type | Center Cutting |
| Dimension Type | Metric |
| Drilling Tool Configuration | Individual |
| End Mill Application | Roughing/Finishing |
| End Mill Cutting Type | Center Cutting |
| End Mill Style | Corner Radius |
| End Type | Single End |
| Finish | Bright, Uncoated |
| Finish - Machining | Bright (Uncoated) |
| Grade | General Purpose |
| Hardened Compatibility | Yes |
| Helix Angle | 30° |
| List Number | 9181 |
| Material | Carbide |
| Material - Machining | Carbide |
| Material Grade - Machining | General Purpose |
| Milling Dia. | 0.5 mm |
| Neck Length | 1.5 mm |
| Non Ferrous (n) Compatibility | No |
| Number Of Flutes | 2 |
| Overall Length | 45 mm |
| Primary Material Application | Hardened Steel |
| Primary Material Application Iso Code | H |
| Shank Dia. | 4 mm |
| Shank Type | End Mill , Straight |
| Shank Type - Machining | Straight |
| Single End/double End | Single End |
| Stainless (m) Compatibility | No |
| Steel (p) Compatibility | Yes |
| Super Alloy (s) Compatibility | No |
| System Of Measurement | Metric |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Milling Dia. | Shank Dia. | Helix Angle | Overall Length | Grade | Corner Radius | List Number | Number Of Flutes | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
36700111 | 1/16" | 1/8" | 30° | 1 1/2" | General Purpose | 0.01" | 3670 | 4 | €52.51 | |
|
36700311 | 3/32" | 1/8" | 30° | 1 1/2" | General Purpose | 0.01" | 3670 | 4 | €62.73 | |
|
8526211 | 0.5 mm | 4 mm | 30° | 45 mm | General Purpose | 0.1 mm | 9181 | 2 | €698.39 | |
 |
8526410 | 0.5 mm | 4 mm | 30° | 45 mm | General Purpose | 0.05 mm | 9182 | 2 | €712.76 | |
|
8526411 | 0.5 mm | 4 mm | 30° | 45 mm | General Purpose | 0.1 mm | 9182 | 2 | €712.76 | |
|
8526222 | 1 mm | 4 mm | 30° | 45 mm | General Purpose | 0.2 mm | 9181 | 2 | €644.86 | |
|
8526220 | 1 mm | 4 mm | 30° | 45 mm | General Purpose | 0.05 mm | 9181 | 2 | €644.86 |
