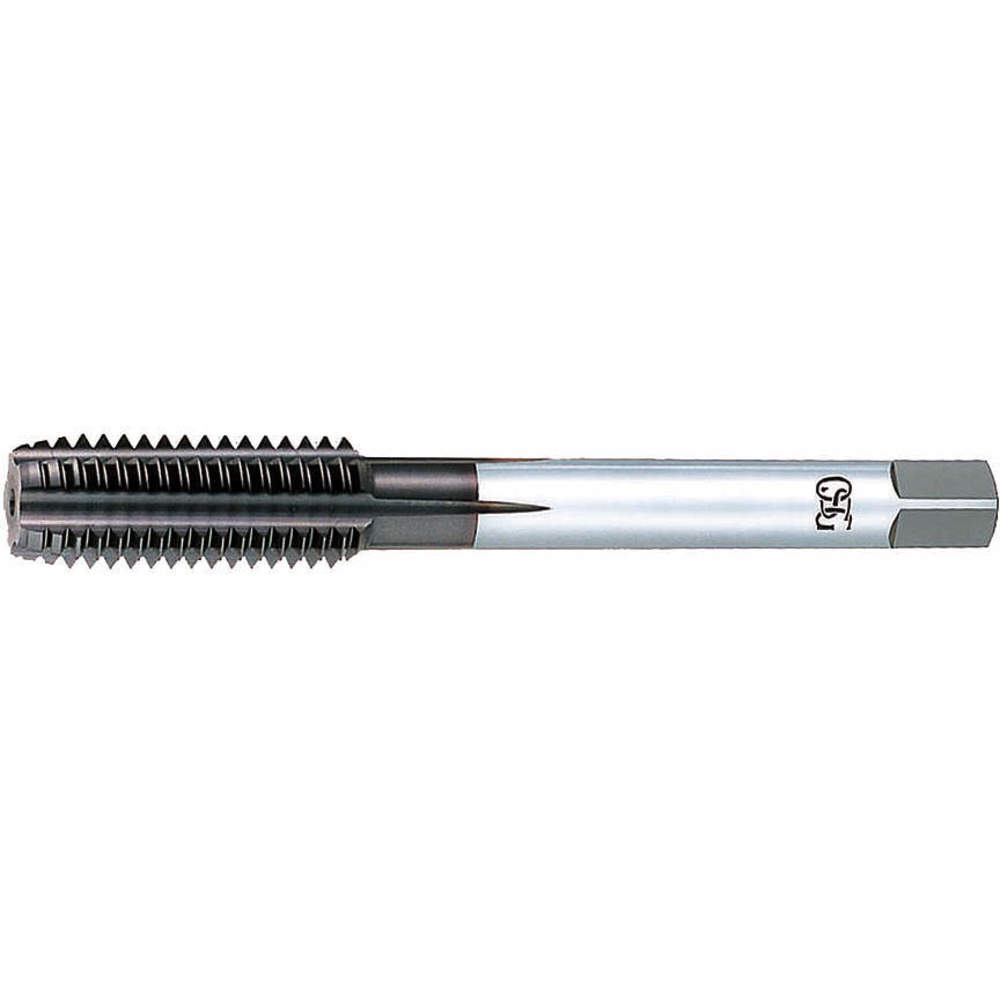

OSG 8330149 Straight Flute Tap Modified Bottoming 20x1.50mm Ticn
Item: AG4GGPModel: 8330149Cross Ref: 33YY04
7 In Stock
Ships within 2 days via
10.00% off
€1,922.70 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Straight Flute Tap |
| 55% Thread Drill Size | 18.9 mm |
| 65% Thread Drill Size | 18.75 mm |
| 75% Thread Drill Size | 18.5 mm |
| Coolant Fed | Non-Coolant Through |
| Cutting Direction - Machining | Right Hand |
| Extended Neck | Yes |
| Finish | TiCN Coated |
| List Number | 341 |
| Material | Carbide |
| No. Of Pieces | 1 |
| Number Of Flutes | 6 |
| Overall Length | 105 mm |
| Pitch Diameter Limit | Not Rated |
| Pitch Diameter Limits | OH4 |
| Pitch Type | 1.5 mm |
| Primary Material Application | Hardened Steel |
| Primary Material Application Iso Code | H |
| Shank Dia. | 15 mm |
| Shank Length | 68 mm |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Size | M20 |
| Spiral Direction | Neutral |
| Square Size | 12 mm |
| System Of Measurement | Metric |
| Tap Chamfer | Modified Bottoming |
| Tap Finish | TiCN |
| Tap Grouping | Tap |
| Tap Length Standard | Jis |
| Tap Material | High Speed Steel |
| Tap Shank Standard | JIS |
| Tap Style | Straight Flute (Hand) |
| Tap Thread Type | Metric Fine |
| Tap Type | Modified Bottom |
| Thread Direction | Right Hand |
| Thread Length | 37 mm |
| Thread Limit | OH4 |
| Thread Limit/class Of Fit | OH4 |
| Thread Pitch | 1.5 mm |
| Thread Size | M20 x 1.5 |
| Thread Standard | Metric Fine |
| Thread Type | Metric Fine |
Shipping Info:
| Ship weight (kg) | 0.28 |
| Ship height (cm) | 3.18 |
| Ship length (cm) | 13.34 |
| Ship width (cm) | 3.18 |
| HS code | 8207400000 |
Product Variants
| Model | Overall Length | Number Of Flutes | Thread Length | Thread Size | 75% Thread Drill Size | Thread Limit | Thread Type | Pitch Diameter Limits | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 3110108 | 2 3/16" | 4 | 1/4" | #4-40 | 2.2 mm | 2B | Coarse | 2B | €292.32 | |
| 3110208 | 2 3/16" | 4 | 5/16" | #6-32 | #36 | 2B | Coarse | 2B | €302.67 | |
| 3110308 | 2 15/32" | 4 | 5/16" | #8-32 | 3.4 mm | 2B | Coarse | 2B | €325.78 | |
| 3110408 | 2 3/4" | 4 | 7/8" | - | - | - | Coarse | 2B | €341.09 | |
| 3110708 | 3 1/8" | 5 | 9/16" | 1/4"-28 | 5.45 mm | 2B | Fine | 2B | €372.38 | |
| 3110808 | 3 17/32" | 5 | 5/8" | 5/16"-18 | F | 2B | Coarse | 2B | €477.04 | |
| 3110908 | 3 17/32" | 5 | 5/8" | 5/16"-24 | I | 2B | Fine | 2B | €426.04 |
