OSG 8330119 Straight Flute Tap Mod Bottom M12 x 1.25 TiCN
Item: AH3ZFAModel: 8330119Cross Ref: 33YX94
7 In Stock
Ships within 2 days via
10.00% off
€566.08 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Tap |
| 65% Thread Drill Size | 10.94 mm |
| 75% Thread Drill Size | 10.78 mm |
| Coolant Fed | Non-Coolant Through |
| Cutting Direction - Machining | Right Hand |
| Dimension Type | Metric |
| Extended Neck | Yes |
| Finish | TiCN Coated |
| List Number | 341 |
| Material | Solid Carbide |
| No. Of Pieces | 1 |
| Number Of Flutes | 5 |
| Number Of Pieces | 1 |
| Overall Length | 82 mm |
| Pitch Diameter Limit | Not Rated |
| Primary Material Application | Hardened Steel |
| Primary Material Application Iso Code | H |
| Shank Dia. | 8.5 mm |
| Shank Length | 53 mm |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Size | M12 |
| Spiral Direction | Neutral |
| Square Size | 6.5 mm |
| System Of Measurement | Metric |
| Tap Chamfer | Modified Bottoming |
| Tap Finish | TiCN |
| Tap Grouping | Tap |
| Tap Length Standard | Jis |
| Tap Material | High Speed Steel |
| Tap Shank Standard | JIS |
| Tap Style | Straight Flute (Hand) |
| Tap Thread Type | Metric |
| Tap Type | Straight Flute |
| Thread Direction | Right Hand |
| Thread Length | 29 mm |
| Thread Limit | OH4 |
| Thread Limit/class Of Fit | OH4 |
| Thread Pitch | 1.25 mm |
| Thread Size | M12 x 1.25 |
| Thread Standard | Metric Fine |
| Thread Type | Metric Fine |
Shipping Info:
| Ship weight (kg) | 0.08 |
| Ship height (cm) | 1.91 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 1.91 |
| Country of Origin | JP |
Product Details:
- Tap Grouping : Tap
- Pitch Diameter Limit : Not Rated
Product Variants
| Model | Thread Size | Thread Length | Overall Length | 75% Thread Drill Size | Thread Limit | Number Of Flutes | Shank Dia. | Thread Standard | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

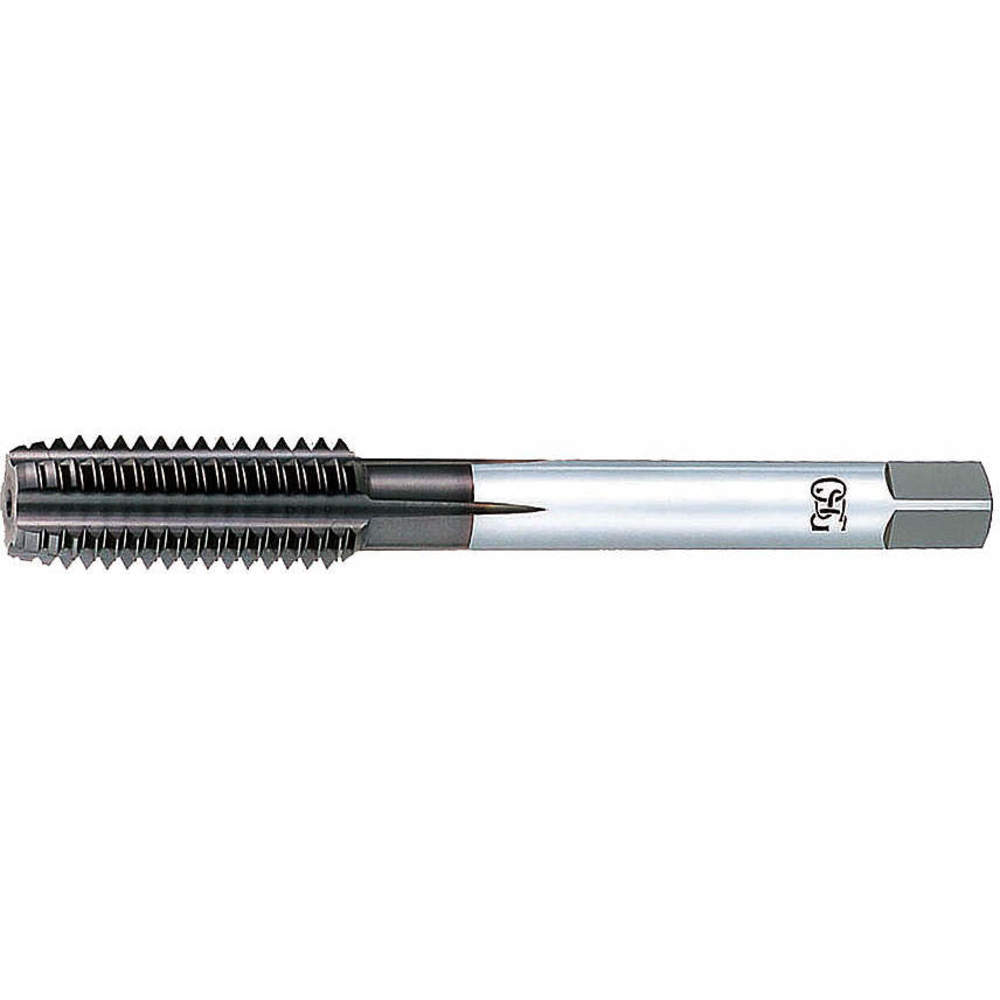

| 3110508 | #10-32 | 1/2" | 2 3/4" | #21 | 2B | 4 | 3/16" | Unf | €333.74 | |
| 3110608 | 1/4"-20 | 9/16" | 3 1/8" | #7 | 2B | 5 | 1/4" | UNC | €386.36 | |
| 3111008 | 3/8"-16 | 3/4" | 3 29/32" | 5/16" | 2B | 5 | 3/8" | UNC | €629.91 | |
| 8330067 | M5 X 0.8 | 18 mm | 60 mm | 4.2 mm | OH3 | 4 | 5.5 mm | Metric Coarse | €286.00 |
