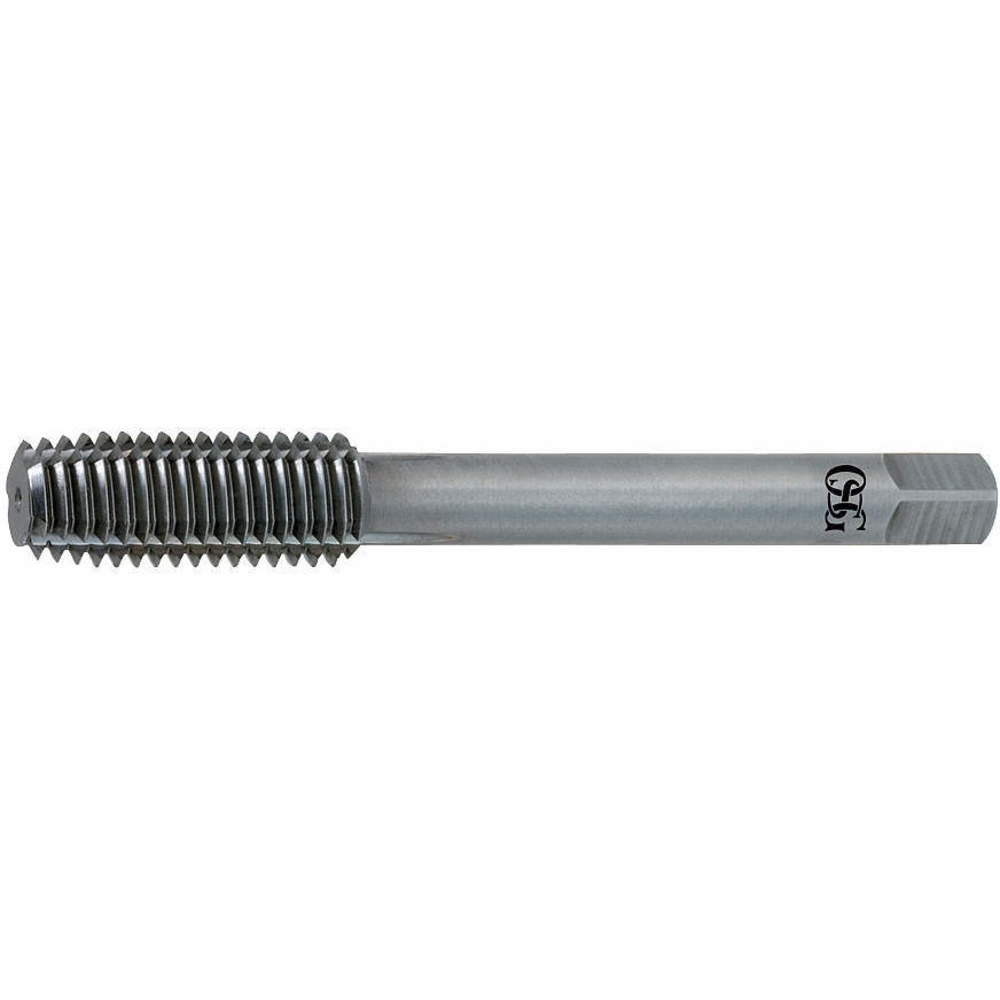

OSG 8315115 Thread Forming Tap, M12x1.75 Thread Size, 29 mm Thread Lg, 82 mm Overall Lg, Bottom
Item: AG3ZMGModel: 8315115Cross Ref: 33XC38
7 In Stock
Ships within 2 days via
€674.62 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Thread Forming Tap |
| 55% Thread Drill Size | 11.3 mm |
| 65% Thread Drill Size | 11.2 mm |
| 75% Thread Drill Size | 7/16" |
| Coolant Fed | Non Coolant Through |
| Cutting Direction-machining | Right Hand |
| Extended Neck | No |
| Features | Carbide Taps For Cast Iron And Aluminum |
| Finish | Bright |
| List Number | 369 |
| Material | Carbide |
| Material Grade-machining | Grade 369 |
| No. Of Flutes | 3 |
| No. Of Pieces | 1 |
| Overall Length | 82 mm |
| Pitch Dia. Limit | Not Rated |
| Pitch Dia. Limits | RH8 |
| Pitch Type | 1.75 mm |
| Primary Material Application | Aluminum |
| Primary Material Application Iso Code | N |
| Shank Dia. | 8.5 mm |
| Shank Length | 53 mm |
| Size | M12 |
| Spiral Direction | Neutral |
| Square Size | 6.5 mm |
| Standards | Jis |
| Tap Chamfer | Bottoming |
| Tap Finish | Bright |
| Tap Grouping | Tap |
| Tap Length Standard | Jis |
| Tap Material | Carbide |
| Tap Shank Standard | JIS |
| Tap Style | Thread Forming |
| Tap Thread Type | Metric Coarse |
| Tap Type | Thread Forming |
| Thread Direction | Right Hand |
| Thread Length | 29 mm |
| Thread Limit | RH8 |
| Thread Limit/class Of Fit | RH8 |
| Thread Pitch | 1.75 mm |
| Thread Size | M12 x 1.75 |
| Thread Type | Metric Coarse |
Shipping Info:
| Ship weight (kg) | 0.08 |
| Ship height (cm) | 1.91 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 1.91 |
| HS code | 8207400000 |
| Country of Origin | JP |
Product Variants
| Model | Thread Size | Overall Length | 75% Thread Drill Size | Thread Limit | Tap Chamfer | Shank Dia. | Thread Type | Shank Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 8315055 | M3 x 0.5 | 46 mm | 2.75 mm | RH5 | Bottoming | 4 mm | Metric Coarse | 27.2 mm | €238.26 | |
| 8315061 | M4 x 0.7 | 52 mm | 3.65 mm | RH6 | Bottoming | 5 mm | Metric Coarse | 31 mm | €251.43 | |
| 8315067 | M5 X 0.8 | 60 mm | 4.6 mm | RH6 | Bottoming | 5.5 mm | Metric Coarse | 36.1 mm | €265.14 | |
| 8315073 | M6 x 1 | 62 mm | 5.5 mm | RH7 | Bottoming | 6 mm | Metric Coarse | 33 mm | €286.90 | |
| 8315085 | M8 x 1.25 | 70 mm | L | RH7 | Bottoming | 6.2 mm | Metric Coarse | 48 mm | €373.18 | |
| 8315097 | M10 x 1.5 | 75 mm | 9.2 mm | RH7 | Bottoming | 7 mm | Metric Coarse | 51 mm | €512.38 | |
| 8315103 | M10 x 1.25 | 75 mm | U | RH7 | Bottoming | 7 mm | Metric Fine | 51 mm | €492.61 |
