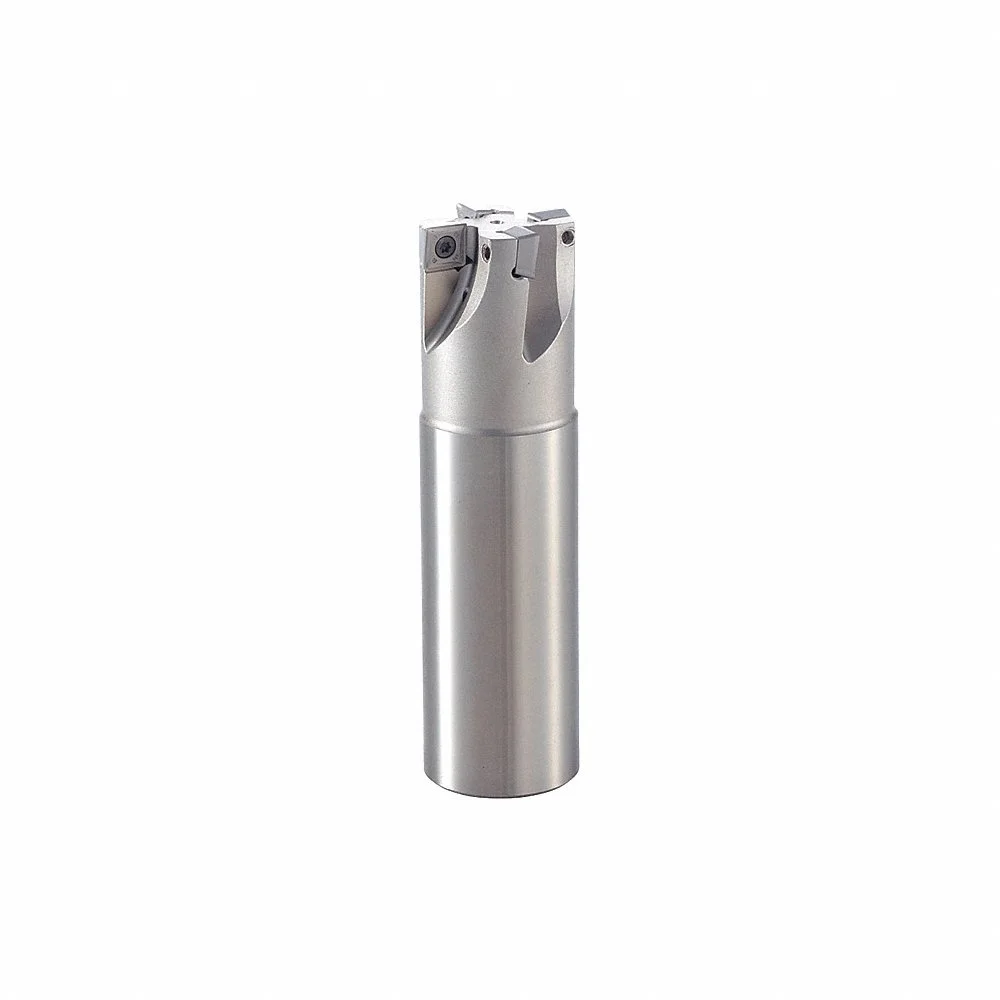

OSG 7803003 Indexable Square Shoulder End Mill, 40 mm Max. Cutting Dia, Cylindrical
Item: CT4ZQWModel: 7803003Cross Ref: 60ER38
7 In Stock
Ships within 2 days via
10.00% off
€614.40 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | End Mill |
| Ansi Code | PSF09R040SS32-5S |
| Compatible Hardware | Clamping Screw, Wrench |
| Coolant Fed | Coolant Through |
| Cutting Application | Facing, Pocketing, Side Milling, Slotting |
| Cutting Direction | Right Hand |
| Features | 3-Dimensional Chip Breaker, Long Insert Life, Superior Performance |
| Insert Holding Type | Clamping Screw |
| Insert Shape | Square |
| Insert Size | 9.07 mm x 9.07 mm |
| Insert Style | RP_SD_T09 |
| Max. Cutting Dia. | 40 mm |
| Mfr. Series | HSK40 |
| Number Of Inserts | 5 |
| Overall Length | 140 mm |
| Shank Dia. | 32 mm |
| Shank Length | 90 mm |
| Shank Type | Cylindrical |
| Shank Type - Machining | Cylindrical |
| Side Cutting Edge Angle | 90° |
| Taper Shank Size | Not Applicable |
| Toolholder Style | PSF |
Shipping Info:
| Ship weight (kg) | 0.7 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Max. Cutting Dia. | Insert Size | Overall Length | Insert Shape | Compatible Hardware | Number Of Inserts | Insert Style | Toolholder Style | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 53000004 | 1 1/2" | 11 mm x 6.8 mm | 5.512" | Diamond | Clamping Screw, Wrench | 20 | RP_ZD_T11 | PSEL | €2,359.71 | |
| 53000003 | 1 1/2" | 6 4/5 mm x 11 mm | 5.512" | Diamond | Clamping Screw, Wrench | 12 | - | PSEL | €1,946.74 | |
| 53000009 | 1 1/2" | 11 mm x 6.8 mm | 4.642" | Diamond | Clamping Screw, Wrench | 12 | RP_ZD_T11 | PSEL | €1,946.74 | |
| 53000011 | 1 1/2" | 9.3 mm x 15 mm | 4.642" | Diamond | Clamping Screw, Wrench | 6 | - | PSEL | €1,566.88 | |
| 53000010 | 1 1/2" | 11 mm x 6.8 mm | 4.642" | Diamond | Clamping Screw, Wrench | 20 | RP_ZD_T11 | PSEL | €2,359.71 | |
| 53000001 | 1 1/4" | 11 mm x 6.8 mm | 5.512" | Diamond | Clamping Screw, Wrench | 8 | RP_ZD_T11 | PSEL | €1,704.91 | |
| 53000002 | 1 1/4" | 11 mm x 6.8 mm | 5.512" | Diamond | Clamping Screw, Wrench | 15 | RP_ZD_T11 | PSEL | €2,085.86 |
