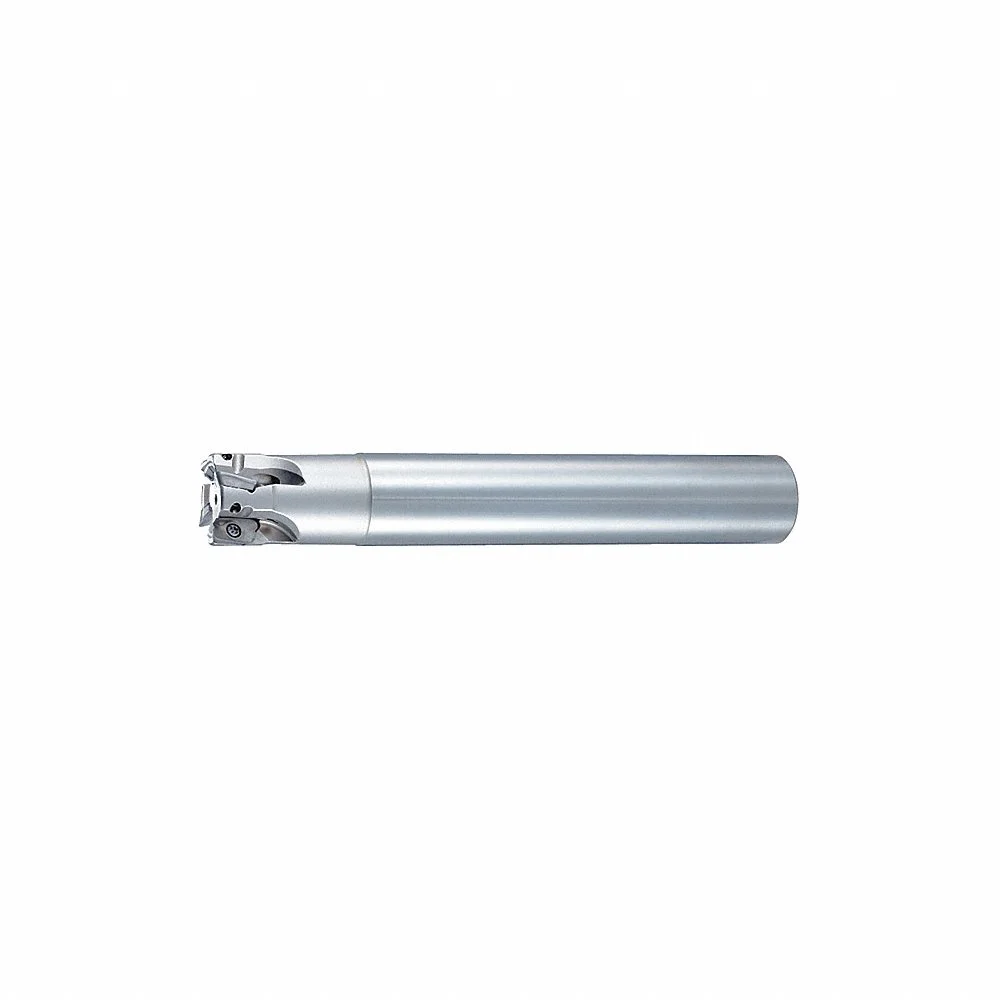

OSG 7801112 Indexable Face Mill, 40 Max. Cutting Dia, 90 Deg. Side Cutting Edge Angle
Item: CT6BHPModel: 7801112Cross Ref: 60EP27
7 In Stock
Ships within 2 days via
10.00% off
€712.03 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Indexable Face Mill |
| Ansi Code | PSE15R040SS32-4S |
| Compatible Hardware | Clamping Screw, Wrench |
| Coolant Fed | Coolant Through |
| Cutting Application | Facing, Pocketing, Side Milling, Slotting |
| Cutting Direction | Right Hand |
| Features | Efficient Ramping And Helical Milling, Insert Variety, Superior Surface Finish |
| Hub Outside Dia. | 32 mm |
| Insert Cutting Edge Length | 15 mm |
| Insert Holding Type | Screw |
| Insert Shape | Diamond |
| Insert Size | 15 mm x 9.3 mm |
| Insert Style | ZDKT |
| Max. Cutting Dia. | 40 mm |
| Mfr. Series | HSK63A/F |
| Min. Cutting Dia. | 40 mm |
| Number Of Coolant Holes | 4 |
| Number Of Inserts | 4 |
| Overall Length | 140 mm |
| Shank Dia. | 3/4" |
| Side Cutting Edge Angle | 90° |
Shipping Info:
| Ship weight (kg) | 0.41 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Overall Length | Insert Size | Insert Shape | Coolant Fed | Max. Cutting Dia. | Side Cutting Edge Angle | Insert Holding Type | Arbor Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 7801349 | 5.035" | 11 mm x 6.8 mm | Diamond | Coolant Through | 1" | 90° | - | - | €648.26 | |
| 7801350 | 5.035" | 11 mm x 6.8 mm | Diamond | Coolant Through | 1" | 90° | - | - | €671.11 | |

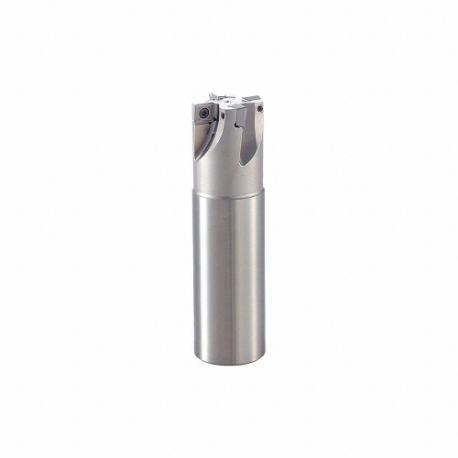

| 52900004 | 3.831" | 9.07 mm x 9.07 mm | Square | Coolant Through | 1" | 90° | Screw | - | €493.33 | |
| 7801352 | 5.035" | 15 mm x 9.3 mm | Diamond | Coolant Through | 1" | 90° | - | - | €632.06 | |
| 7801340 | 6.693" | 11 mm x 6.8 mm | Diamond | Coolant Through | 1" | 90° | - | - | €671.11 | |
| 7801342 | 6.693" | 15 mm x 9.3 mm | Diamond | Coolant Through | 1" | 90° | - | - | €632.06 | |
| 7801306 | 4.724" | 15 mm x 9.3 mm | Diamond | Coolant Through | 1" | 90° | Clamping Screw | - | €549.62 |
