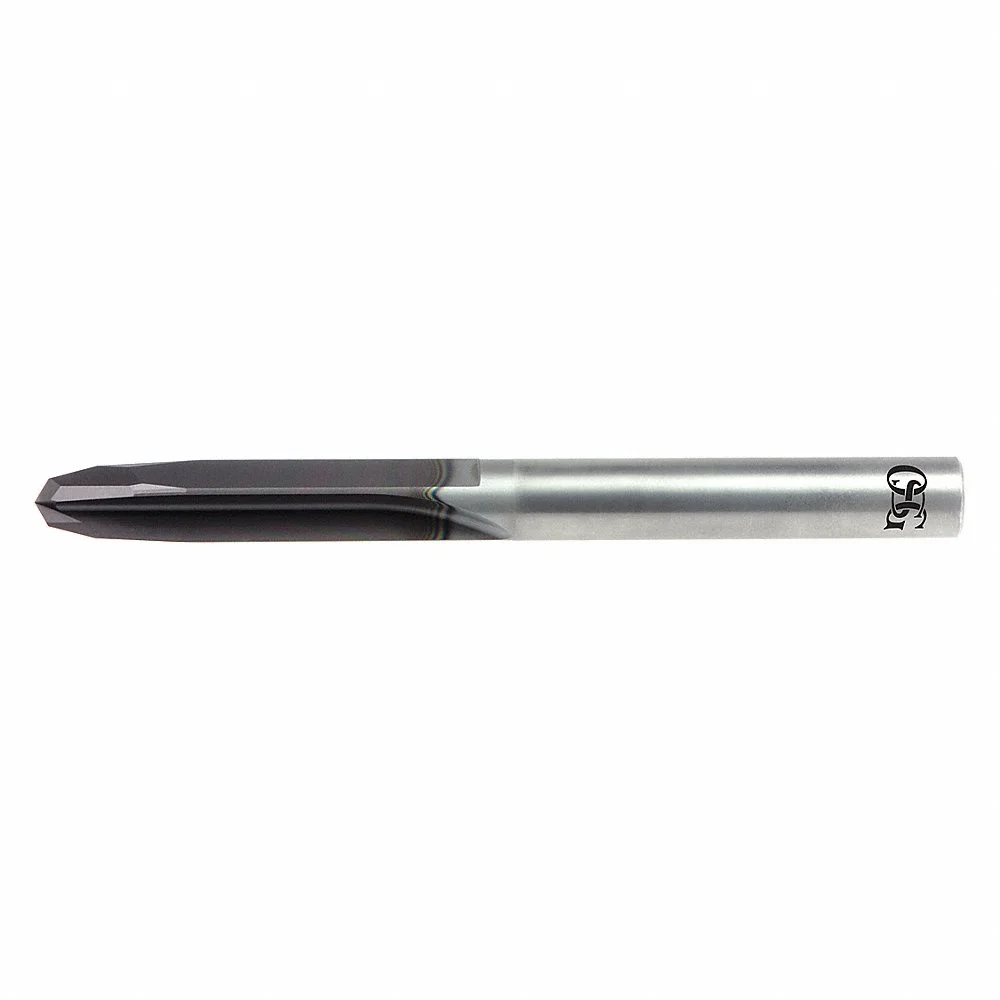

OSG 750131316 Flute Drill Bit, 5/16 Inch Drill Bit Size, 5/16 Inch Flute Length, 7.96 mm Shank Dia.
Item: CT6XRPModel: 750131316Cross Ref: 35DN81
7 In Stock
Ships within 2 days via
5.00% off
€550.60 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Drill Bit |
| Aircraft Drill | No |
| Coolant Fed | Non-Coolant Through |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.3125 |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | Solid Carbide |
| Drill Bit Point Angle | 120° |
| Drill Length Class | Jobber Length |
| Finish | Diamond |
| Flute Length | 0.312" |
| Flute Type | Straight |
| Grade | General Purpose |
| Helix Angle | 0° |
| List Number | 7501 |
| Material | Carbide |
| Number Of Flutes | 2 |
| Overall Length | 4" |
| Point Type | Triple Angle Point |
| Primary Material Application | Carbon Fiber, Composite |
| Primary Material Application Iso Code | O |
| Secondary Material Application | Aluminum, Carbon Fiber, Glass Fiber |
| Secondary Material Application Iso Code | N, O |
| Shank Dia. | 7.96 mm |
| Shank Type | Straight |
| Sheeter Drill | No |
| System Of Measurement | Fractional Inch |
Shipping Info:
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Model | Decimal Equivalent | Drill Bit Point Angle | Shank Dia. | Primary Material Application | Flute Length | Overall Length | Drill Bit Point Type | Finish | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 200-2280 | 0.228 | 140° | #1 | Cast Iron, Steel | 1 5/16" | 2 7/16" | 4 Facet Point | Bright, Uncoated | €42.17 | |
| 200-1890 | 0.189 | 140° | #12 | Cast Iron, Steel | 1 3/16" | 2 1/4" | 4 Facet Point | Bright, Uncoated | €33.10 | |
| 200-1800 | 0.18 | 140° | #15 | Cast Iron, Steel | 1 1/8" | 2 3/16" | 4 Facet Point | Bright, Uncoated | €31.94 | |
| 200-1770 | 0.177 | 140° | #16 | Cast Iron, Steel | 1 1/8" | 2 3/16" | 4 Facet Point | Bright, Uncoated | €31.77 | |
| 200-1772 | 0.177 | 140° | #16 | Cast Iron, Steel | 29 mm | 56 mm | 4 Facet Point | Bright, Uncoated | €31.54 | |
| 200-1695 | 0.1695 | 140° | #18 | Cast Iron, Steel | 1 1/16" | 2 1/8" | 4 Facet Point | Bright, Uncoated | €30.83 | |
| 200-1660 | 0.166 | 140° | #19 | Cast Iron, Steel | 1 1/16" | 2 1/8" | 4 Facet Point | Bright, Uncoated | €30.83 |
