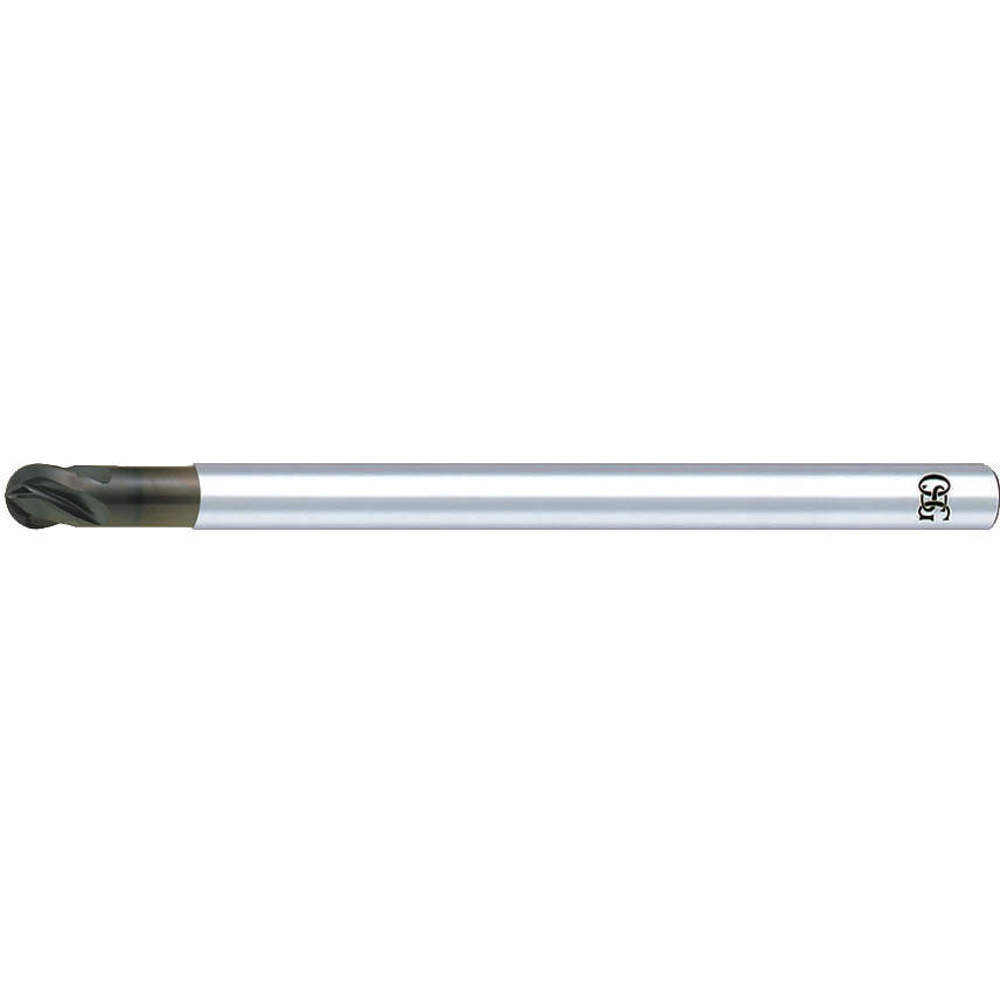

OSG 70320716 Ball End Mill, 4 Flutes, 3/8 Inch Milling Dia., 3/8 Inch Lg of Cut, 4 Inch Overall Lg
Item: AG3NMBModel: 70320716Cross Ref: 33PC06
7 In Stock
Ships within 2 days via
€297.44 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ball End Mill |
| Cast Iron (k) Compatibility | No |
| Chip Breaker | No |
| Coolant Fed | Non Coolant Through |
| Cutting Direction | Right Hand |
| Cutting Length | 3/8" |
| Cutting Type | Center |
| Dimensions Type | Fractional Inch |
| Drilling Tool Configuration | Individual |
| End Mill Application | Finishing |
| End Mill Cutting Type | Center Cutting |
| End Mill Style | Ball Nose |
| End Type | Single End |
| Finish | Diamond Coating |
| Finish-machining | Diamond |
| Grade | Micrograin Carbide |
| Hardened Compatibility | No |
| Helix Angle | 30° |
| List Number | 7032 |
| Material | Carbide |
| Material Grade-machining | Micrograin |
| Material-machining | Carbide |
| Milling Dia. | 3/8" |
| Neck Dia. | 23/64" |
| Neck Length | 1 1/8" |
| No. Of Flutes | 4 |
| Non Ferrous (n) Compatibility | Yes |
| Overall Length | 4" |
| Primary Material Application | Cast Iron, Hardened Steel, Steel, Tool And Die Steel |
| Primary Material Application Iso Code | H, K, P |
| Shank Dia. | 3/8" |
| Shank Type | Straight |
| Shank Type-machining | Straight |
| Single End/double End | Single End |
| Stainless Compatibility | No |
| Steel (p) Compatibility | No |
| Super Alloy (s) Compatibility | No |
| System Of Measurement | Imperial |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 1.52 |
| Ship length (cm) | 11.43 |
| Ship width (cm) | 1.52 |
| HS code | 8207706030 |
| Country of Origin | US |
Product Details:
- Cast Iron (K) Compatibility (Yes)
Product Variants
| Model | Milling Dia. | Cutting Length | Shank Dia. | Primary Material Application Iso Code | Finish | Material Grade-machining | Grade | Neck Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

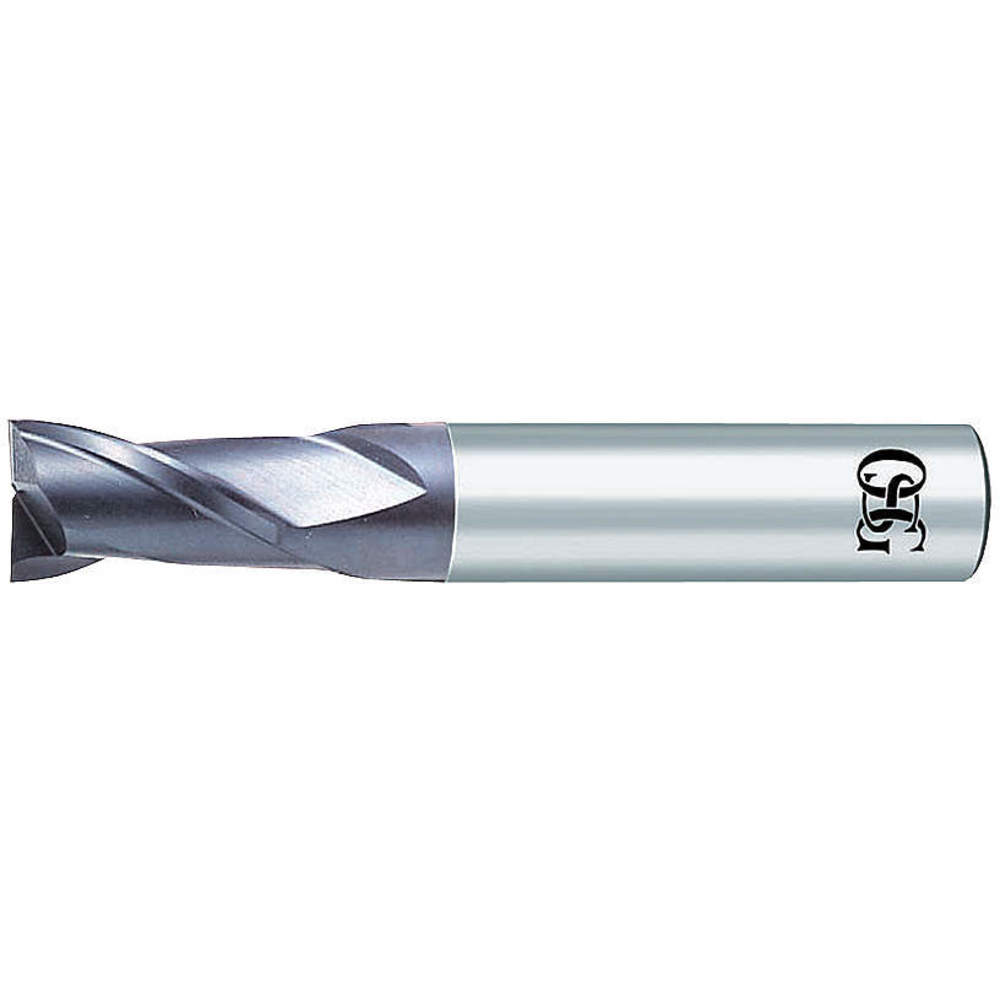

| 70200016 | 1/64" | 0.047" | 1/8" | N, O | Diamond | High Performance | High Performance | 3/32" | €170.66 | |
| 70200116 | 1/32" | 0.094" | 1/8" | N, O | Diamond | High Performance | High Performance | 1/4" | €176.09 | |
| 70200216 | 3/64" | 0.188" | 1/8" | N, O | Diamond | High Performance | High Performance | 1/2" | €165.99 | |
| 70200316 | 1/16" | 0.188" | 1/8" | N, O | Diamond | High Performance | High Performance | 1/2" | €157.96 | |
| 70200416 | 5/64" | 1/4" | 1/8" | N, O | Diamond | High Performance | High Performance | 1/2" | €157.50 | |
| 70200516 | 3/32" | 3/8" | 1/8" | N, O | Diamond | High Performance | High Performance | 1/2" | €169.68 | |
| 70200716 | 1/8" | 1/2" | 1/8" | N, O | Diamond | High Performance | High Performance | - | €157.96 |
