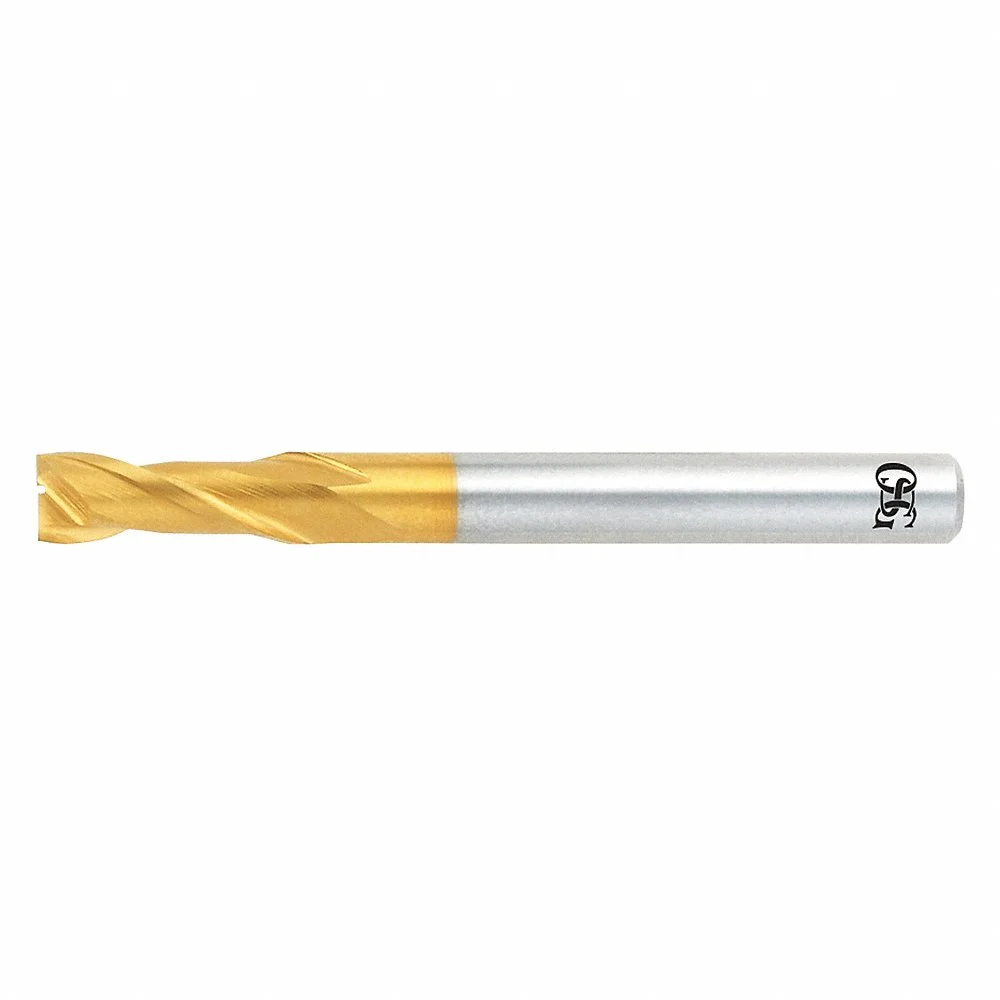

OSG 6737005 Square End Powdered Metal, Tin Finish, Single End, 1/32 Inch Milling Dia
Item: CT6VPQModel: 6737005Cross Ref: 35DA60
7 In Stock
Ships within 2 days via
10.00% off
€34.36 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Square End Mill |
| Cast Iron (k) Compatibility | Yes |
| Compatibility | Yes |
| Cutting Direction | Right Hand |
| Cutting Direction - Machining | Right Hand |
| Cutting Length | 3/32" |
| Dimension Type | Fractional Inch |
| Drilling Tool Configuration | Individual |
| End Mill Application | Finishing |
| End Mill Cutting Type | Center Cutting |
| End Mill Material | Powdered Metal |
| End Mill Style | Square |
| End Type | Single End |
| Finish | Tin |
| Finish - Machining | Tin |
| Grade | General Purpose |
| Hardened Compatibility | Yes |
| Helix Angle | 30° |
| List Number | 673 |
| Material | Powdered Metal |
| Material - Machining | Powdered Metal |
| Material Grade | General Purpose |
| Material Grade - Machining | General Purpose |
| Milling Dia. | 1/32" |
| Non Ferrous (n) Compatibility | No |
| Number Of Flutes | 2 |
| Overall Length | 1 7/8" |
| Primary Material Application | Hardened Steel, Stainless Steel, Steel, Tool And Die Steel |
| Primary Material Application Iso Code | H, M, P |
| Secondary Material Application | Aluminum, Carbon Steel, Cast Iron, Titanium |
| Secondary Material Application Iso Code | K, N, S |
| Shank Dia. | 3/16" |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Single End/double End | Single End |
| Stainless (m) Compatibility | Yes |
| Super Alloy Compatibility | Yes |
| System Of Measurement | Fractional Inch |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Overall Length | End Mill Cutting Type | Number Of Flutes | Cutting Length | Milling Dia. | Cutting Direction | Grade | Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
6777205 | 1 7/8" | Non Center Cutting | 4 | 3/16" | 1/16" | Right Hand | General Purpose | Powdered Metal | €37.12 | |
|
6737205 | 1 7/8" | Center Cutting | 2 | 3/16" | 1/16" | Right Hand | General Purpose | Powdered Metal | €35.84 | |
 |
6767205 | 1 3/4" | Non Center Cutting | 4 | 3/32" | 1/16" | Right Hand | General Purpose | Powdered Metal | €25.41 | |
|
6777405 | 1 7/8" | Non Center Cutting | 4 | 9/32" | 3/32" | Right Hand | General Purpose | Powdered Metal | €38.42 | |
|
6737405 | 1 7/8" | Center Cutting | 2 | 9/32" | 3/32" | Right Hand | General Purpose | Powdered Metal | €35.84 | |
|
6767405 | 1 3/4" | Non Center Cutting | 4 | 9/64" | 3/32" | Right Hand | General Purpose | Powdered Metal | €22.96 | |
|
6737105 | 1 7/8" | Center Cutting | 2 | 9/64" | 3/64" | Right Hand | General Purpose | Powdered Metal | €41.39 |
