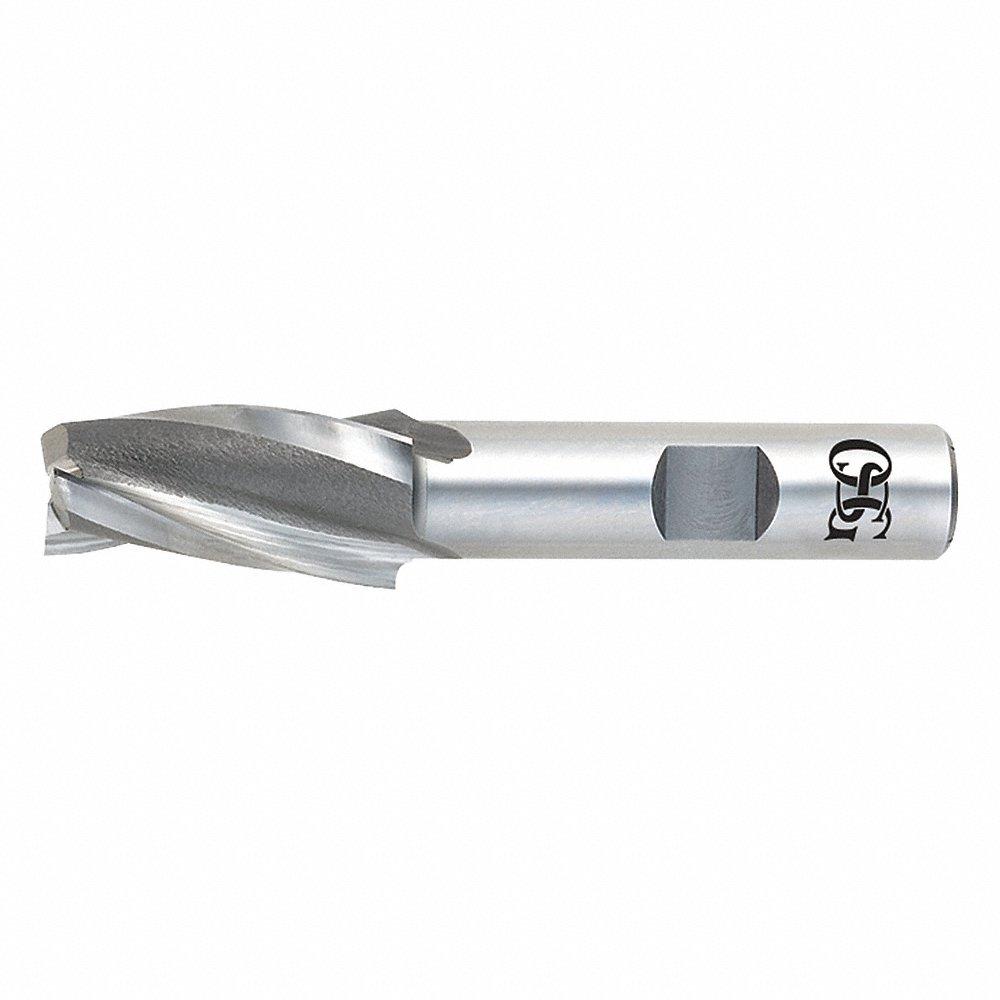

OSG 5952500 Tapered End Mill, Cobalt, Bright Uncoated, 5 Deg Taper Angle per Side
Item: CT6YJWModel: 5952500Cross Ref: 35DL53
7 In Stock
Ships within 2 days via
10.00% off
€134.93 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Tapered End Mill |
| Cutting Direction | Right Hand |
| Cutting Length | 2" |
| Dimension Type | Fractional Inch |
| End Mill Cutting Type | Center Cutting |
| End Mill Material | High Speed Steel |
| End Mill Style | Tapered |
| Grade | General Purpose |
| Helix Angle | 25° |
| Included Angle | 10° |
| Large End Dia. | 1/2" |
| List Number | 595 |
| Material | Cobalt |
| Material Grade | General Purpose |
| Number Of Flutes | 3 |
| Overall Length | 4" |
| Primary Material Application | Steel |
| Primary Material Application Iso Code | P |
| Secondary Material Application | General Purpose |
| Secondary Material Application Iso Code | H, K, M, N, S |
| Shank Dia. | 1/2" |
| Shank Type | Weldon Flat |
| System Of Measurement | Fractional Inch |
| Taper Angle Per Side | 5° |
| Tip Dia. | 3/32" |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Overall Length | Tip Dia. | Grade | Material | Cutting Length | Primary Material Application | Taper Angle Per Side | Number Of Flutes | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 45810026 | 55 mm | 1/32" | Micro Grain | Carbide | 8 mm | All Materials | 0.5° | 4 | €278.02 | |
| 45810144 | 55 mm | 5/64" | Micro Grain | Carbide | 25 mm | All Materials | - | 4 | €277.30 | |
| 45810152 | - | 5/64" | Micro Grain | Carbide | - | All Materials | 0.7° | - | €288.84 | |
| 45810154 | - | 5/64" | Micro Grain | Carbide | - | - | - | - | €288.84 | |
| 45810035 | - | 1/32" | Micro Grain | Carbide | 8 mm | All Materials | - | - | €278.02 | |
| 45810175 | 50 mm | 3/32" | Micro Grain | - | 16 mm | - | - | - | €330.00 | |
| 45810180 | - | 3/32" | Micro Grain | - | 25 mm | - | 1.5° | 4 | €330.00 |
