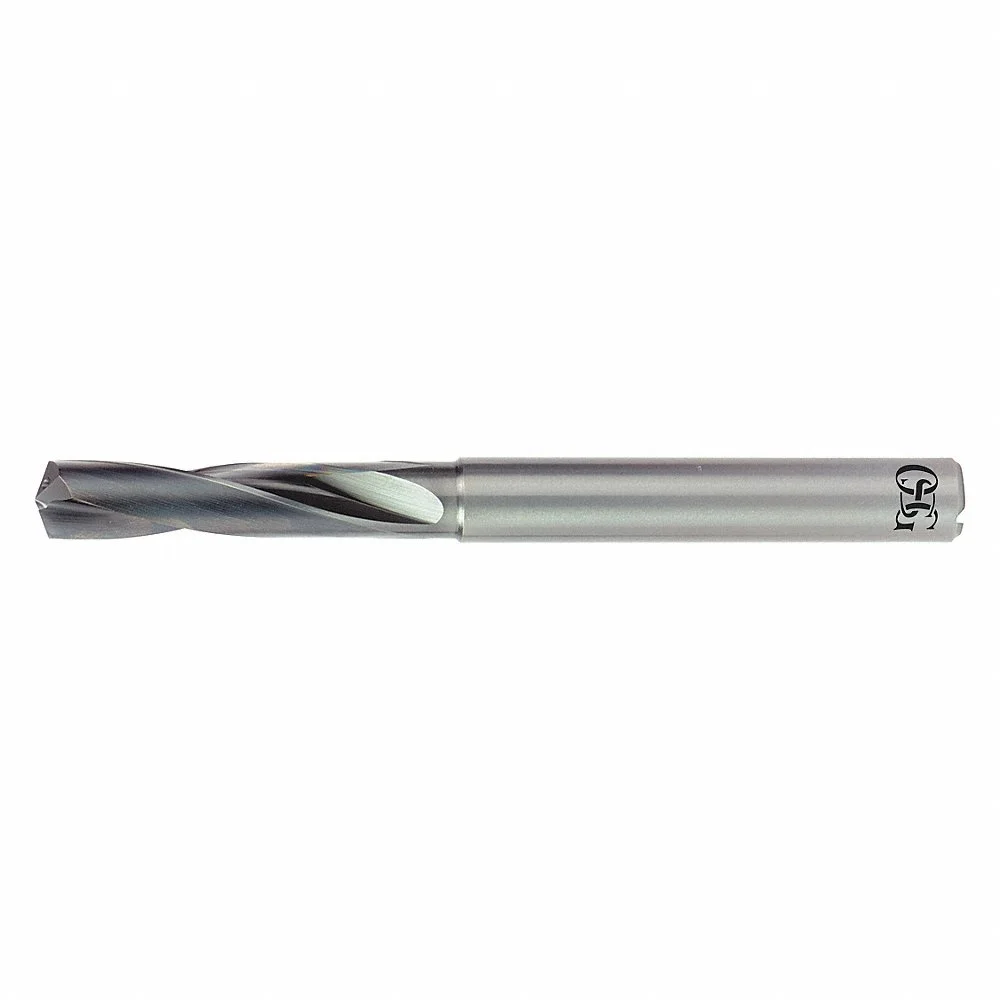

OSG 595039411 Screw Machine Drill Bit, 10 mm Size, 106 mm Overall Length
Item: CT6HPZModel: 595039411Cross Ref: 34XF39
7 In Stock
0.393"
+0 To -0.0009"
Ships within 2 days via
5.00% off
€303.91 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Screw Machine Drill Bit |
| Coolant Fed | Coolant Through |
| Coolant Through | No |
| Coolant Thru | Yes |
| Cutting Dia. Tolerance | -0.0009" to 0" , H8 |
| Cutting Direction | Right |
| Decimal Equivalent | 0.3937 |
| Depth X Dia. Ratio | 3xd |
| Diameter | 0.3937" |
| Drill Bit Dimension Type | Metric |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Point Angle | 140° |
| Drill Bit Point Type | R Thinning Point |
| Drill Bit Size | 10 mm |
| Drill Diameter Tolerance | -0.022 mm to 0 mm |
| Drill Length Class | Screw Machine Length |
| Drilling L/d Ratio | 3 |
| Finish | WXS |
| Finish - Machining | WXS |
| Flute Length | 50 mm |
| Flute Type | Slow Spiral |
| Grade | General Purpose |
| Helix Angle | 12° to 20° |
| Helix Direction | Right Hand |
| Length Of Cut Specification | Stub |
| Material | Solid Carbide |
| Material - Machining | Carbide |
| Material Grade - Machining | General Purpose |
| Number Of Coolant Holes | 2 |
| Number Of Flutes | 2 |
| Overall Length | 106 mm |
| Point Angle | 140° |
| Point Thinning | R Thinning |
| Primary Material Application | Hardened Steel, Nickel, Steel |
| Primary Material Application Iso Code | H, P, S |
| Secondary Material Application | Cast Iron, Die Steel, Hardened Steel, High Carbon Steel, Low Carbon Steel, Medium Carbon Steel |
| Secondary Material Application Iso Code | H, K, P |
| Shank Dia. | 10 mm |
| Shank Tolerance | H6 |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Sheeter Drill | No |
| Standards | Not Rated |
| Substrate | Carbide |
| Surface Treatment | Durorey |
| System Of Measurement | Metric |
| Web Thinning | R Thinned |
Shipping Info:
| Ship weight (kg) | 0.32 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 10.6 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Overall Length | Decimal Equivalent | Flute Length | Drill Bit Size | Flute Type | Shank Dia. | Drill Bit Point Type | Coolant Fed | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
220-2280 | 2 3/4" | 0.228 | 1 3/4" | #1 | Spiral | 0.219" | 4 Facet Point | Non Coolant Through | €48.65 | |
 |
215-2280 | 2 7/16" | 0.228 | 1 5/16" | #1 | - | 0.219" | 4 Facet Point | Non Coolant Through | €54.59 | |
 |
215-1935 | 2 1/4" | 0.1935 | 1 3/16" | #10 | - | 0.188" | 4 Facet Point | Non Coolant Through | €45.23 | |
|
220-1935 | 2 1/4" | 0.1935 | 1 3/16" | #10 | Spiral | 0.188" | 4 Facet Point | Non Coolant Through | €43.87 | |
|
215-1910 | 2 1/4" | 0.191 | 1 3/16" | #11 | - | 0.188" | 4 Facet Point | - | €42.86 | |
|
220-1890 | 2 3/4" | 0.189 | 1 5/8" | #12 | Spiral | 0.188" | 4 Facet Point | Non Coolant Through | €43.32 | |
|
215-1890 | 57 mm | 0.189 | - | #12 | Spiral | 4.8 mm | 4 Facet Point | Non Coolant Through | €43.70 |
