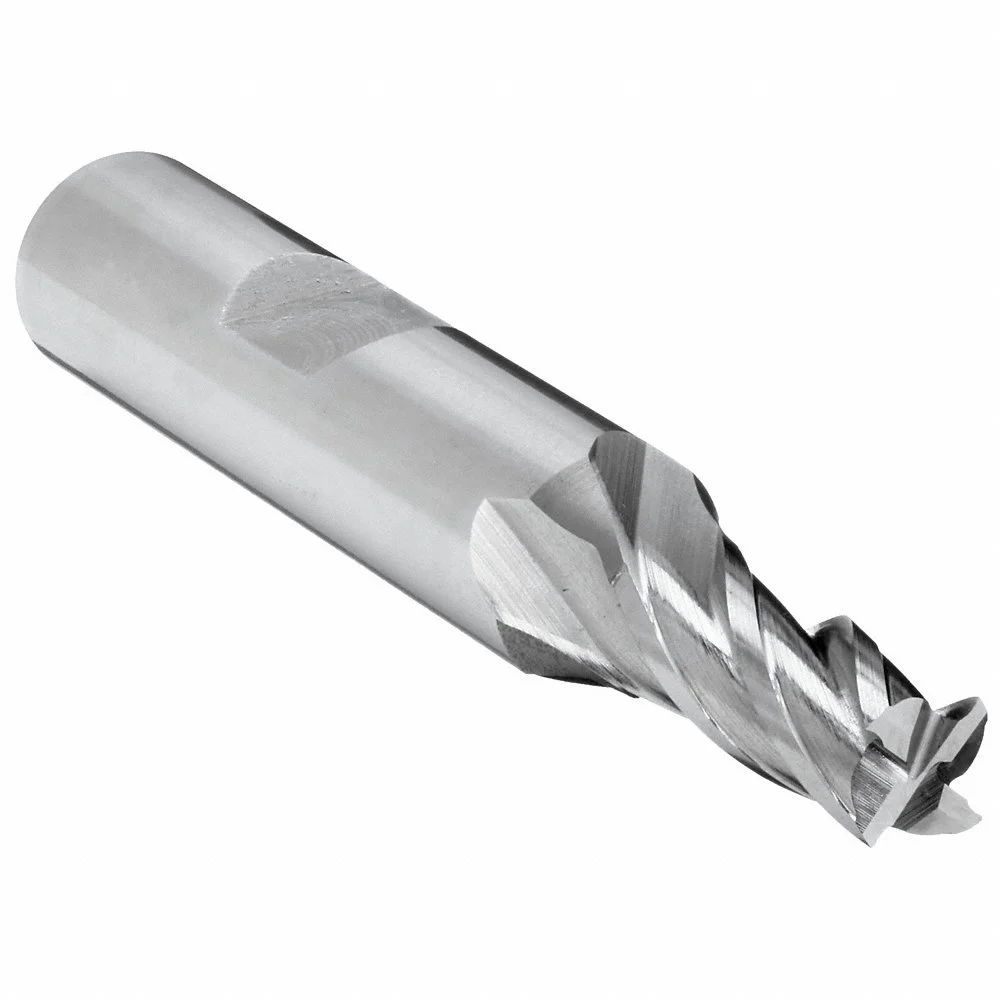

OSG 5740700 Square End Mill, Center Cutting, 4 Flutes, 5/16 Inch Milling Dia, 3/4 Inch Cut
Item: CT6UQJModel: 5740700Cross Ref: 35DD34
7 In Stock
0.3125"
0.375"
Ships within 2 days via
10.00% off
€30.02 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Square End Mill |
| Cast Iron (k) Compatibility | Yes |
| Compatibility | Yes |
| Cutting Direction | Right Hand |
| Cutting Direction - Machining | Right Hand |
| Cutting Length | 3/4" |
| Cutting Type | Center Cutting |
| Dimension Type | Fractional Inch |
| Drilling Tool Configuration | Individual |
| End Mill Application | Finishing |
| End Mill Cutting Type | Center Cutting |
| End Mill Material | High Speed Steel |
| End Mill Style | Square |
| End Type | Single End |
| Finish | Bright, Uncoated |
| Finish - Machining | Bright (Uncoated) |
| Grade | General Purpose |
| Hardened Compatibility | Yes |
| Helix Angle | 30° |
| List Number | 574 |
| Material | High Speed Steel |
| Material - Machining | High Speed Steel |
| Material Grade | General Purpose |
| Material Grade - Machining | General Purpose |
| Milling Dia. | 5/16" |
| Non Ferrous (n) Compatibility | No |
| Number Of Flutes | 4 |
| Overall Length | 2 1/2" |
| Primary Material Application | Aluminum, Cast Iron, Steel, Tool And Die Steel |
| Primary Material Application Iso Code | K, N, P |
| Secondary Material Application | Aluminum, Carbon Steel, Cast Iron, Titanium |
| Secondary Material Application Iso Code | N, P, S |
| Shank Dia. | 3/8" |
| Shank Type | Weldon Flat |
| Shank Type - Machining | Weldon Flat |
| Single End/double End | Single End |
| Stainless (m) Compatibility | Yes |
| Super Alloy Compatibility | Yes |
| System Of Measurement | Fractional Inch |
Shipping Info:
| Ship weight (kg) | 0.03 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Milling Dia. | List Number | Number Of Flutes | Shank Dia. | Overall Length | End Mill Cutting Type | Finish | Length Of Cut | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5733900 | 1" | 573 | - | 1" | 4 1/8" | Center Cutting | Bright, Uncoated | - | €114.24 | |
 |
5733908 | 1" | 573 | 2 | 1" | 4 1/8" | Center Cutting | - | - | €149.03 | |
|
5731408 | 1/2" | 573 | 2 | 1/2" | 3" | Center Cutting | TiCN | - | €64.51 | |
|
5731400 | 1/2" | 573 | 2 | 1/2" | 3" | Center Cutting | Bright, Uncoated | - | €50.76 | |
|
5730508 | 1/4" | 573 | 2 | 3/8" | 2.312" | - | TiCN | - | €43.66 | |
 |
5730500 | 1/4" | 573 | 2 | 3/8" | 2 5/16" | Center Cutting | Bright, Uncoated | - | €32.56 | |
|
5730108 | 1/8" | 573 | 2 | 3/8" | 2 5/16" | Center Cutting | - | - | €43.66 |
