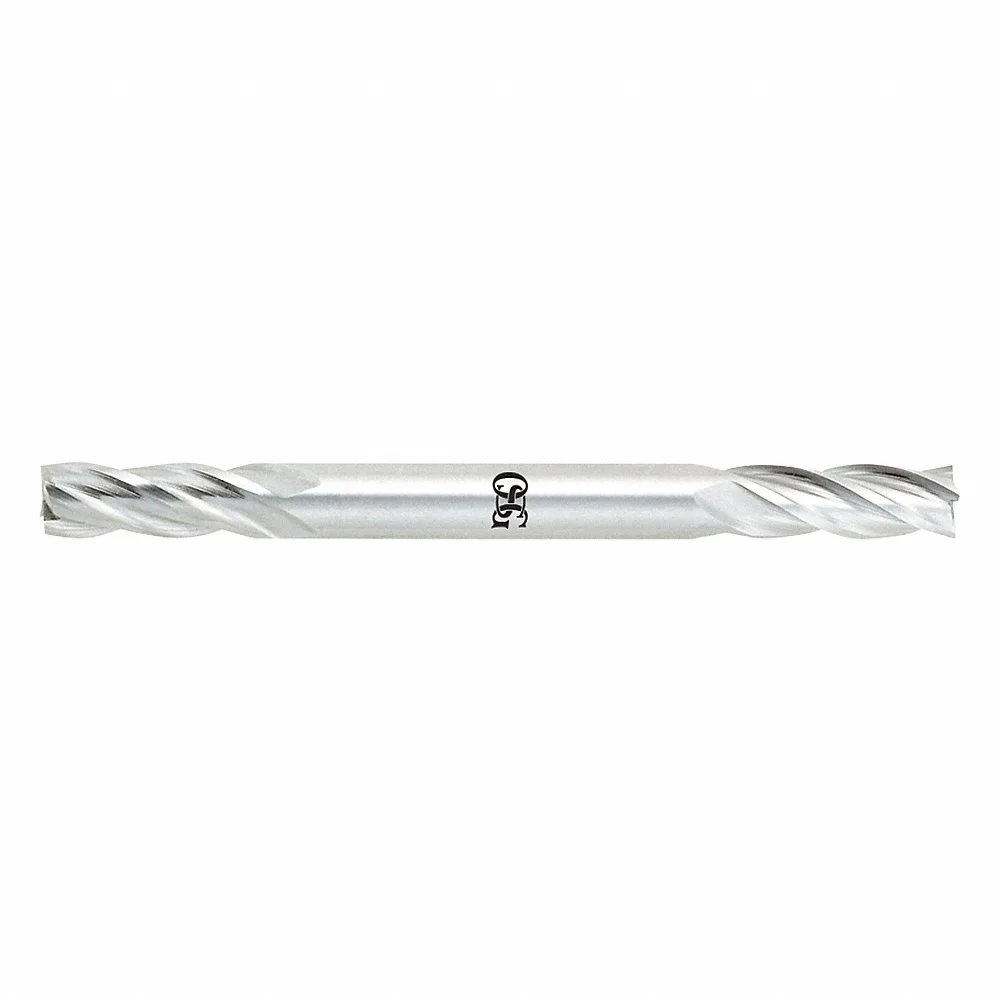

OSG 5677200 Square End Mill, Cobalt, Bright Finish, Double End, 1/16 Inch Milling Dia, 4 Flutes
Item: CT6VJEModel: 5677200Cross Ref: 35DN53
7 In Stock
Ships within 2 days via
10.00% off
€54.26 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Square End Mill |
| Cast Iron (k) Compatibility | Yes |
| Compatibility | Yes |
| Cutting Direction | Right Hand |
| Cutting Direction - Machining | Right Hand |
| Cutting Length | 11/64" |
| Dimension Type | Fractional Inch |
| Drilling Tool Configuration | Individual |
| End Mill Application | Finishing |
| End Mill Cutting Type | Non Center Cutting |
| End Mill Material | High Speed Steel |
| End Mill Style | Square |
| End Style | Square |
| End Type | Double End |
| Finish | Bright, Uncoated |
| Finish - Machining | Bright (Uncoated) |
| Hardened Compatibility | Yes |
| Helix Angle | 30° |
| List Number | 567 |
| Material | Cobalt |
| Material - Machining | Cobalt |
| Material Grade | General Purpose |
| Material Grade - Machining | General Purpose |
| Milling Dia. | 1/16" |
| Non Ferrous (n) Compatibility | No |
| Number Of Flutes | 4 |
| Overall Length | 2 1/4" |
| Primary Material Application | Steel |
| Primary Material Application Iso Code | P |
| Shank Dia. | 3/16" |
| Shank Type | Weldon Flat |
| Shank Type - Machining | Weldon Flat |
| Single End/double End | Double End |
| Stainless (m) Compatibility | Yes |
| Super Alloy Compatibility | Yes |
| System Of Measurement | Fractional Inch |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Milling Dia. | Number Of Flutes | Shank Dia. | List Number | Overall Length | End Mill Cutting Type | Length Of Cut | End Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5827100 | 1 mm | 2 | 4.76 mm | 582 | 57.1 mm | Center Cutting | - | Double End | €60.32 | |
|
5827200 | 1.5 mm | 2 | 4.76 mm | 582 | 57.1 mm | Center Cutting | - | Double End | €64.25 | |
 |
5627200 | 1/16" | 2 | 3/16" | 562 | 2" | Center Cutting | 3/32" | Double End | €52.37 | |
 |
5667200 | 1/16" | 4 | 3/16" | 566 | 2" | Non Center Cutting | - | Double End | €57.79 | |
|
5627000 | 1/32" | 2 | 3/16" | 562 | 2" | Center Cutting | - | Double End | €59.41 | |
|
5827400 | 2 mm | 2 | 4.76 mm | 582 | 57.1 mm | Center Cutting | - | Double End | €54.15 | |
|
5827500 | 2.5 mm | 2 | 4.76 mm | 582 | 57.1 mm | Center Cutting | - | Double End | €54.15 |
