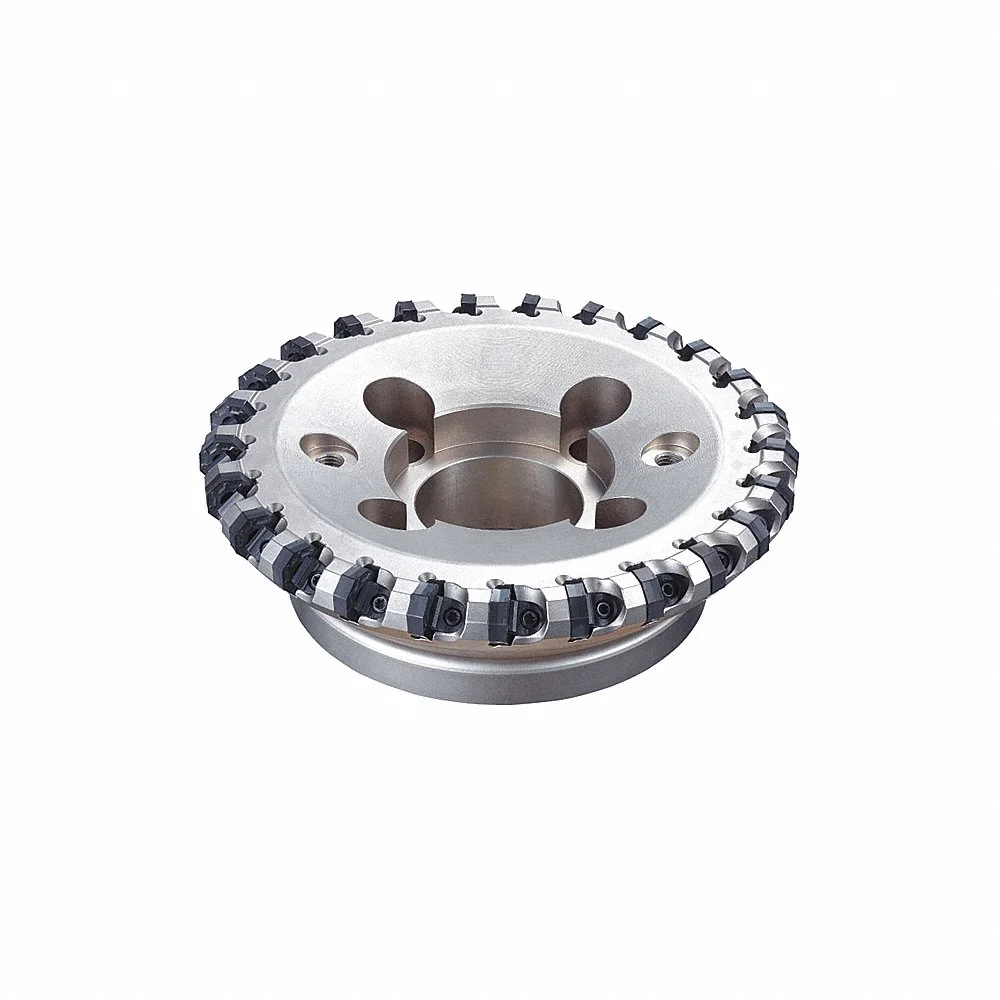

OSG 52800007 Indexable Face Mill, 5.4010 Inch Max. Cutting Dia, 1.5000 Inch Arbor Dia
Item: CT6BHVModel: 52800007Cross Ref: 60EN60
7 In Stock
Ships within 2 days via
10.00% off
€2,726.94 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Indexable Face Mill |
| Ansi Code | PAO06R500A150W-17 |
| Arbor Dia. | 1.5" |
| Compatible Hardware | 7808130, 7808140, 7808141, 7808151, 7808208, 7808209 |
| Coolant Fed | Non Coolant Through |
| Cutting Application | Face Milling |
| Cutting Depth | 2/25" |
| Cutting Direction | Right Hand |
| Features | 2-Sided Octagon Insert With 16 Cutting Edges, Positive Chip Breaker And The Negative Rake Angle, Wiper Edge Geometry |
| Hub Outside Dia. | 5.401" |
| Insert Cutting Edge Length | 6 mm |
| Insert Holding Type | Screw |
| Insert Shape | Octagon |
| Insert Size | 6 mm |
| Max. Cutting Dia. | 5.401" |
| Max. Speed | 590 RPM |
| Min. Cutting Dia. | 5" |
| Number Of Coolant Holes | 0 |
| Number Of Inserts | 8 |
| Overall Length | 2 12/25" |
| Rake | Negative |
| Side Cutting Edge Angle | 45° |
Shipping Info:
| Ship weight (kg) | 1.63 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Overall Length | Insert Size | Insert Shape | Coolant Fed | Max. Cutting Dia. | Side Cutting Edge Angle | Insert Holding Type | Arbor Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 7801349 | 5.035" | 11 mm x 6.8 mm | Diamond | Coolant Through | 1" | 90° | - | - | €648.26 | |
| 7801350 | 5.035" | 11 mm x 6.8 mm | Diamond | Coolant Through | 1" | 90° | - | - | €671.11 | |
| 52900004 | 3.831" | 9.07 mm x 9.07 mm | Square | Coolant Through | 1" | 90° | Screw | - | €493.33 | |
| 7801352 | 5.035" | 15 mm x 9.3 mm | Diamond | Coolant Through | 1" | 90° | - | - | €632.06 | |
| 7801340 | 6.693" | 11 mm x 6.8 mm | Diamond | Coolant Through | 1" | 90° | - | - | €671.11 | |
| 7801342 | 6.693" | 15 mm x 9.3 mm | Diamond | Coolant Through | 1" | 90° | - | - | €632.06 | |
| 7801306 | 4.724" | 15 mm x 9.3 mm | Diamond | Coolant Through | 1" | 90° | Clamping Screw | - | €549.62 |
