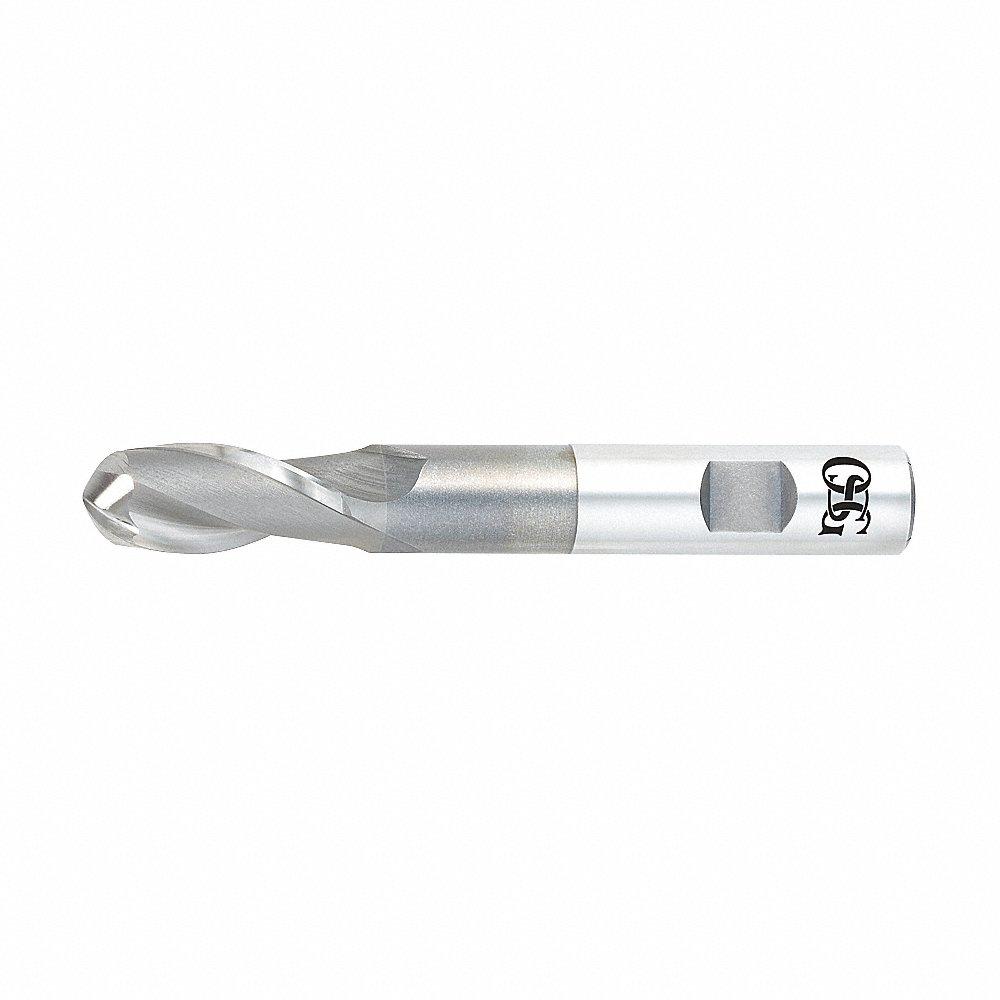

OSG 5260200 Ball End Mill, 2 Flutes, 3/16 Inch Milling Dia, 1/2 Inch Length Of Cut
Item: CT4RMJModel: 5260200Cross Ref: 35DH01
7 In Stock
Ships within 2 days via
10.00% off
€87.05 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ball End Mill |
| Cast Iron (k) Compatibility | Yes |
| Chip-breaker | No |
| Coolant Fed | Non-Coolant Through |
| Cutting Direction | Right Hand |
| Cutting Length | 1/2" |
| Dimension Type | Fractional Inch |
| Drilling Tool Configuration | Individual |
| End Mill Application | Finishing |
| End Mill Cutting Type | Center Cutting |
| End Mill Style | Ball Nose |
| End Style | Ball Nose |
| End Type | Single End |
| Finish | Bright, Uncoated |
| Finish - Machining | Bright (Uncoated) |
| Grade | General Purpose |
| Hardened Compatibility | Yes |
| Helix Angle | 30° |
| List Number | 526 |
| Material | Cobalt |
| Material - Machining | Cobalt |
| Material Grade - Machining | General Purpose |
| Milling Dia. | 3/16" |
| Neck Length | 1 1/8" |
| Non Ferrous (n) Compatibility | No |
| Number Of Flutes | 2 |
| Overall Length | 2 3/5" |
| Primary Material Application | Steel |
| Primary Material Application Iso Code | P |
| Shank Dia. | 3/8" |
| Shank Type | Straight |
| Shank Type - Machining | Weldon Flat |
| Single End/double End | Single End |
| Stainless (m) Compatibility | Yes |
| Steel (p) Compatibility | Yes |
| Super Alloy (s) Compatibility | Yes |
| System Of Measurement | Fractional Inch |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Number Of Flutes | Shank Dia. | List Number | Overall Length | Milling Dia. | Length Of Cut | Coolant Fed | Neck Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 5216100 | 2 | 1 1/4" | 521 | 5" | 1 1/4" | - | Non-Coolant Through | Not Applicable | €383.43 | |
| 5215200 | 2 | 1" | 521 | 4.7" | 1 1/8" | - | Non-Coolant Through | Not Applicable | €332.68 | |
| 5265100 | 2 | 1" | 526 | 7 1/5" | 1" | - | Non-Coolant Through | 5" | €352.75 | |
| 5215100 | 2 | 1" | 521 | 4.7" | 1" | - | Non-Coolant Through | Not Applicable | €295.33 | |
| 5211100 | 2 | 1/2" | 521 | 3" | 1/2" | - | Non Coolant Through | - | €102.41 | |
| 5261100 | 2 | 1/2" | 526 | 4" | 1/2" | - | Non-Coolant Through | 2 1/4" | €148.57 | |
| 5217100 | 2 | 1/2" | 521 | 4" | 1/2" | - | Non-Coolant Through | Not Applicable | €178.53 |
