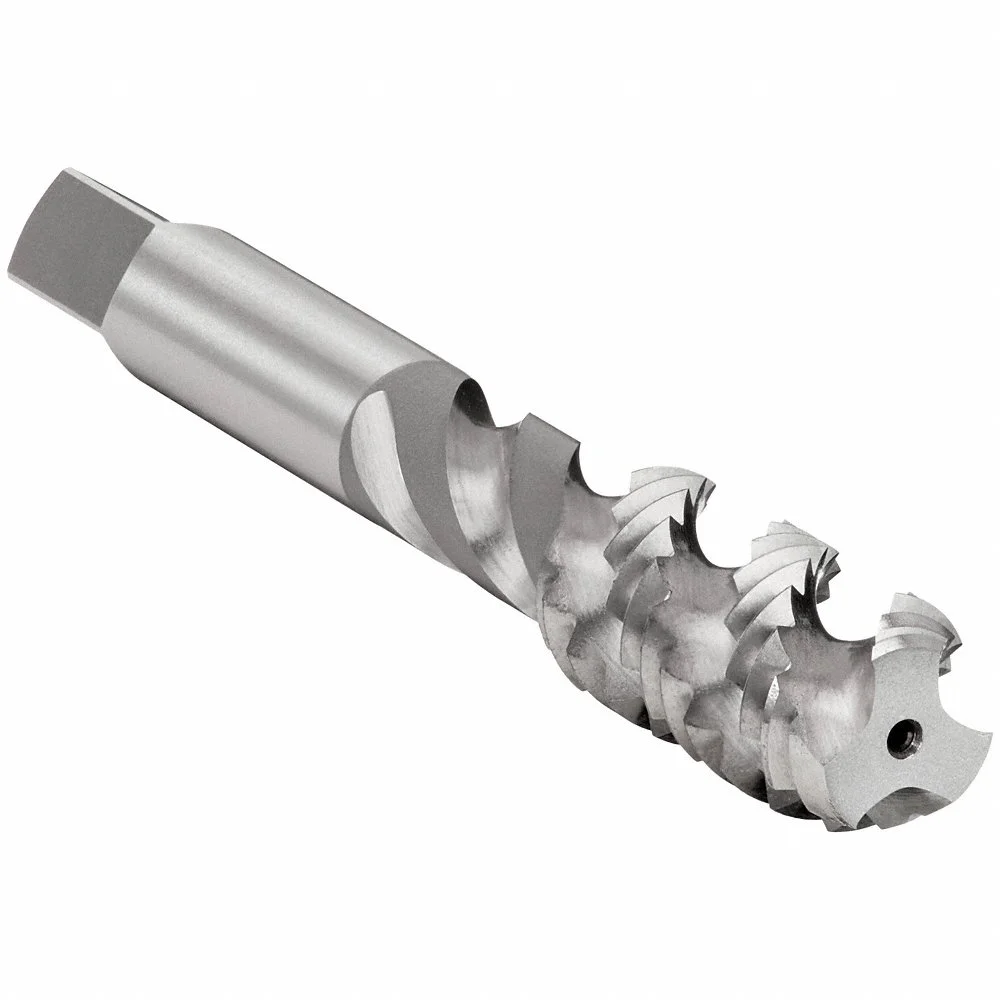

OSG 5007100 Spiral Flute Tap, 1/2-13 Thread Size, 15/16 Inch Thread Lg, Bright, H5, Bottoming
Item: CT6LPZModel: 5007100Cross Ref: 2WAE4
7 In Stock
Ships within 2 days via
€81.26 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spiral Flute Tap |
| 55% Thread Drill Size | 11.3 mm |
| 65% Thread Drill Size | 11 mm |
| 75% Thread Drill Size | 0.422" |
| Coolant Fed | Non Coolant Through |
| Drill Bit Size | 0.4201", 0.4251", 0.4301", 0.4351", 0.440" |
| Extended Neck | Yes |
| Finish | Bright |
| Grade | Grade 107 |
| Helix Angle | 50° |
| Material Grade-machining | Grade 107 |
| Measurement System | Fractional Inch |
| No. Of Flutes | 3 |
| Overall Length | 3 11/32" |
| Primary Material Application | All Materials |
| Primary Material Application Iso Code | H, K, M, N, O, P, S |
| Secondary Material Application | Aluminum, Cast Iron, Steel |
| Secondary Material Application Iso Code | K, N, P |
| Shank Dia. | 23/64" |
| Shank Length | 1 7/16" |
| Shank Type | Straight |
| Shank Type-machining | Straight |
| Square Size | 0.274" |
| System Of Measurement | Imperial |
| Tap Chamfer | Bottoming |
| Tap Finish | Bright |
| Tap Material | High Speed Steel |
| Tap Shank Standard | ANSI |
| Tap Style | Spiral Flute |
| Tap Thread Size | 1/2"-13 |
| Tap Type | Spiral Flute |
| Thread Direction | Right Hand |
| Thread Length | 15/16" |
| Thread Limit | H5 |
| Thread Limit/class Of Fit | H5 |
| Thread Size | 1/2"-13 |
| Thread Standard | Coarse |
| Threads Per Inch | 13 |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 6.75 |
| Ship width (cm) | 2.54 |
| Country of Origin | MX |
Product Variants
| Product | Model | Thread Size | Thread Length | Overall Length | 75% Thread Drill Size | Thread Limit | Tap Finish | Thread Standard | Tap Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1413301 | #10-24 | 1/2" | 2 11/32" | #25 | H3 | Black Oxide | Coarse | Spiral Flute | €29.76 | |
 |
1413300 | #10-24 | 1/2" | 2 11/32" | #25 | H3 | Bright | Coarse | Spiral Flute | €29.76 | |
 |
1413200 | #10-24 | 1/2" | 2 11/32" | #25 | H3 | Bright | Coarse | Spiral Flute | €29.76 | |
 |
1413305 | #10-24 | 1/2" | 2 11/32" | #25 | H3 | TiN | Coarse | Spiral Flute | €31.07 | |
 |
2985400 | #10-24 | 7/8" | 2 3/8" | #25 | 2B | Bright | Coarse | Spiral Flute | €20.79 | |
 |
2985405 | #10-24 | 7/8" | 2 3/8" | #25 | 2B | - | Coarse | Spiral Flute | €28.12 | |
 |
1413501 | #10-32 | 1/2" | 2 11/32" | #21 | H3 | Black Oxide | Fine | Spiral Flute | €29.46 |
