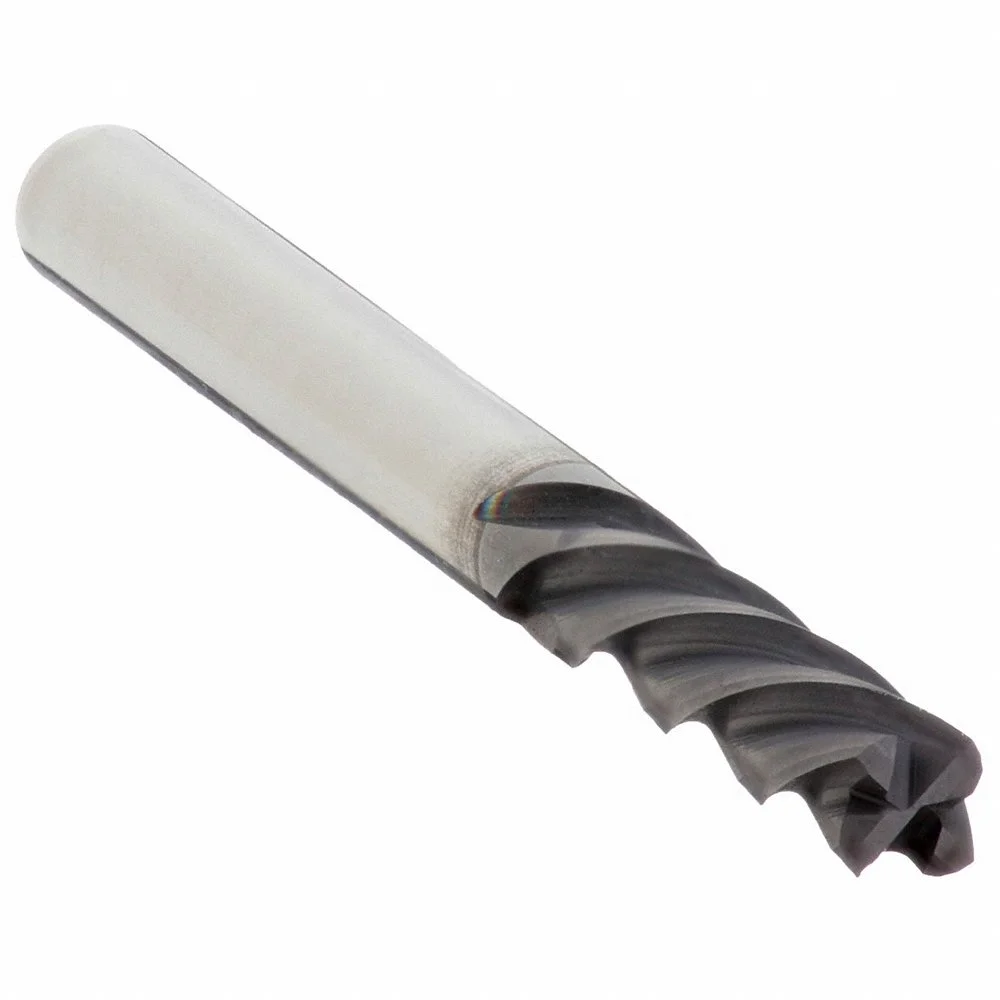

OSG 447-187511 Square End Mill, Center Cutting, 4 Flutes, 3/16 Inch Milling Dia., 5/8 Inch Length Of Cut
Item: CT6UKWModel: 447-187511Cross Ref: 54LE55
7 In Stock
Ships within 2 days via
13.00% off
€32.46 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Square End Mill |
| Cutting Direction | Right Hand |
| Cutting Length | 5/8" |
| Drilling Tool Configuration | Individual |
| End Mill Application | Finishing |
| End Mill Cutting Type | Center Cutting |
| End Mill Style | Square |
| End Style | Square |
| End Type | Single End |
| Finish | TiAlN |
| Grade | Grade C2 Micro Grain |
| Helix Angle | 30° |
| List Number | 447 |
| Material | Carbide |
| Material Grade | Grade C2 Micrograin |
| Measurement System | Fractional Inch |
| Milling Dia. | 0.188" , 3/16" |
| No. Of Flutes | 4 |
| Overall Length | 2" |
| Primary Material Application | Aluminum, Cast Iron, Hardened Steel, Steel |
| Primary Material Application Iso Code | H, K, N, P |
| Shank Dia. | 0.188" , 3/16" |
| Shank Type | Straight |
| Single End/double End | Single End |
| System Of Measurement | Imperial |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 5.08 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Shank Dia. | Milling Dia. | Cutting Length | Primary Material Application Iso Code | End Mill Cutting Type | No. Of Flutes | List Number | Finish | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
21001711 | 1 1/4" | 1 1/4" | 1 1/2" | S | Center Cutting | 5 | 2100 | Exo | €928.56 | |
 |
21020411 | 1 1/4" | 1 1/4" | 2 1/2" | S | Center Cutting | 5 | 2102 | Exo | €1,214.71 | |
 |
402-100011 | 1" | 1" | 1 1/2" | H, K, N, P | Center Cutting | 2 | 402 | TiAlN | €453.38 | |
|
402-500011 | 1/2" | 1/2" | 1" | H, K, N, P | Center Cutting | 2 | 402 | TiAlN | €116.76 | |
 |
462-500108 | 1/2" | 1/2" | 1" | H, K, N, P | Center Cutting | 2 | 462 | - | €145.19 | |
 |
412-500008 | 1/2" | 1/2" | 5/8" | H, K, N, P | Center Cutting | 2 | 412 | - | €103.62 | |
|
412-500011 | 1/2" | 1/2" | 5/8" | H, K, N, P | Center Cutting | 2 | 412 | TiAlN | €109.11 |
