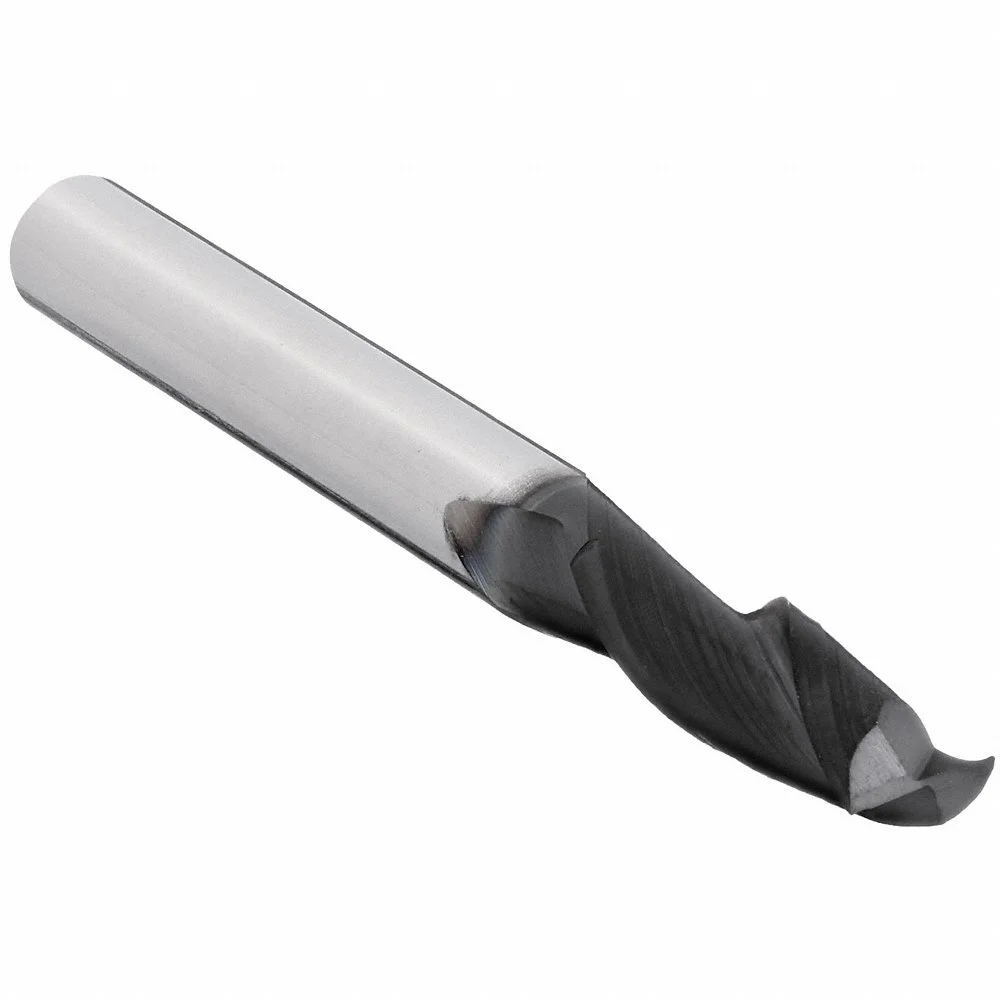

OSG 402-140611 Square End Mill, Center Cutting, 2 Flutes, 9/64 Inch Milling Dia, 1/2 Inch Length Of Cut
Item: CT6WQMModel: 402-140611Cross Ref: 2MYF3
7 In Stock
0.140625"
0.1875"
Ships within 2 days via
10.00% off
€34.51 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Square End Mill |
| Cast Iron (k) Compatibility | Yes |
| Cutting Direction | Right Hand |
| Cutting Direction - Machining | Right Hand |
| Cutting Length | 1/2" |
| Dimension Type | Fractional Inch |
| Drilling Tool Configuration | Individual |
| End Mill Application | Finishing |
| End Mill Cutting Type | Center Cutting |
| End Mill Style | Square |
| End Style | Square |
| End Type | Single End |
| Finish | TiAlN |
| Grade | General Purpose |
| Hardened Compatibility | Yes |
| Helix Angle | 30° |
| List Number | 402 |
| Material | Carbide |
| Material Grade - Machining | General Purpose |
| Milling Dia. | 0.141" |
| Milling Diameter | 9/64" |
| Non Ferrous (n) Compatibility | Yes |
| Number Of Flutes | 2 |
| Overall Length | 2" |
| Primary Material Application | Aluminum, Cast Iron, Hardened Steel, Steel, Tool And Die Steel |
| Primary Material Application Iso Code | H, K, N, P |
| Shank Dia. | 0.188" |
| Shank Diameter | 3/16" |
| Shank Type | Straight |
| Single End/double End | Single End |
| Stainless (m) Compatibility | Yes |
| Steel (p) Compatibility | Yes |
| Super Alloy (s) Compatibility | No |
| System Of Measurement | Fractional Inch |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Milling Dia. | End Mill Cutting Type | Overall Length | Number Of Flutes | Shank Dia. | List Number | Finish | Length Of Cut | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
21001711 | 1 1/4" | Center Cutting | 4" | 5 | 1 1/4" | 2100 | Exo | - | €963.31 | |
 |
21020411 | 1 1/4" | Center Cutting | 6" | 5 | 1 1/4" | 2102 | Exo | - | €1,260.19 | |
 |
402-100011 | 1" | Center Cutting | 4" | 2 | 1" | 402 | TiAlN | - | €513.77 | |
|
402-500011 | 1/2" | Center Cutting | 3" | 2 | 1/2" | 402 | TiAlN | - | €131.84 | |
 |
462-500108 | 1/2" | Center Cutting | 4" | 2 | 1/2" | 462 | - | - | €162.95 | |
 |
412-500008 | 1/2" | Center Cutting | 2 1/2" | 2 | 1/2" | 412 | - | - | €116.04 | |
|
412-500011 | 1/2" | Center Cutting | 2 1/2" | 2 | 1/2" | 412 | TiAlN | - | €122.36 |
