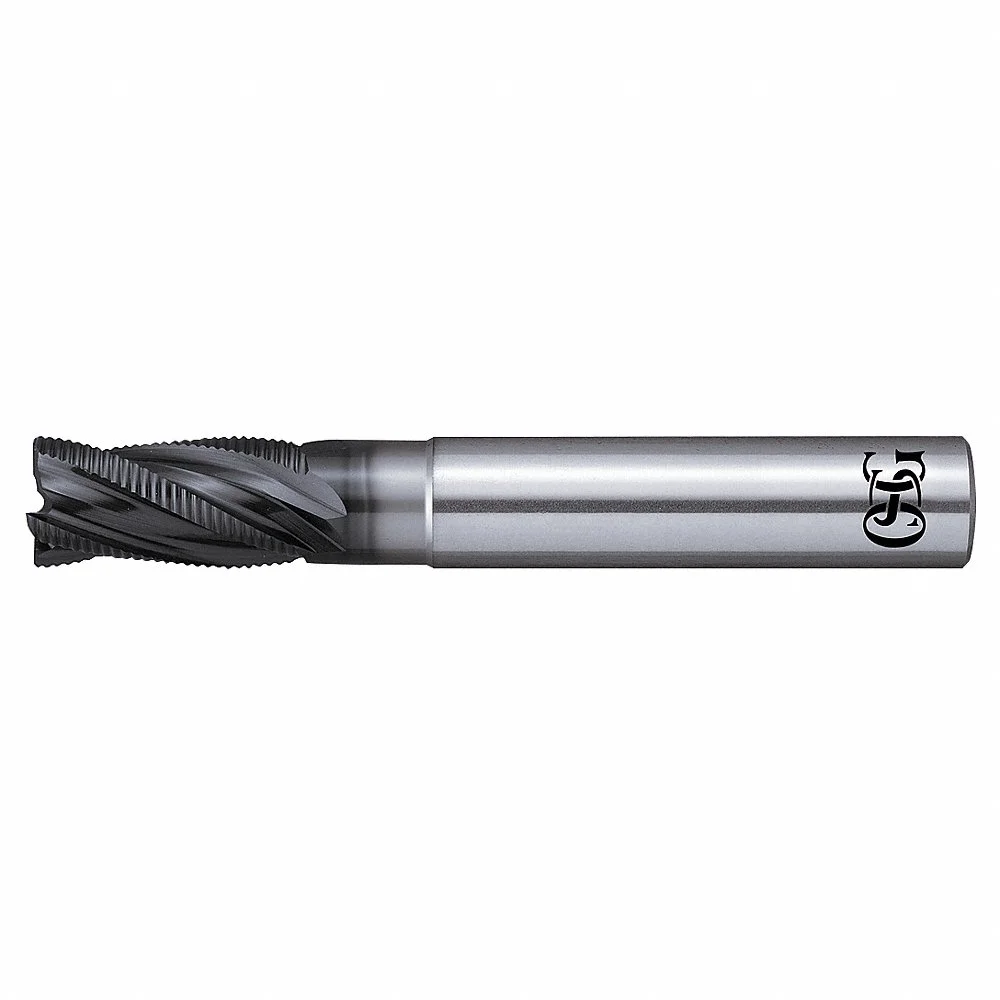

OSG 38205011 Corner Radius End Mill, Wxl Finish, 4 Flutes, 1 Inch Milling Dia, 1 Inch Shank Dia
Item: CT4YAWModel: 38205011Cross Ref: 55FF81
7 In Stock
Ships within 2 days via
10.00% off
€833.77 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Corner Radius End Mill |
| Corner Radius | 3/32" |
| Cutting Direction | Right Hand |
| Cutting Direction - Machining | Right Hand |
| Cutting Length | 2" |
| Cutting Type | Center Cutting |
| Dimension Type | Fractional Inch |
| Drilling Tool Configuration | Individual |
| End Mill Application | Roughing |
| End Mill Cutting Type | Center Cutting |
| End Mill Style | Corner Radius |
| End Type | Single End |
| Finish | WXL |
| Finish - Machining | WXL |
| Grade | Micro Grain |
| Helix Angle | Variable |
| List Number | 3820 |
| Material | Carbide |
| Material - Machining | Carbide |
| Material Grade - Machining | Grade C2 Micro Grain |
| Milling Dia. | 1" |
| Number Of Flutes | 4 |
| Overall Length | 5" |
| Primary Material Application | Hardened Steel, Stainless Steel, Titanium, Tool And Die Steel |
| Primary Material Application Iso Code | H, M, S |
| Shank Dia. | 1" |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Single End/double End | Single End |
| Spiral Direction | Right Hand |
| System Of Measurement | Fractional Inch |
| Workpiece Compatibility | Hardened, Nonferrous, Stainless Steel, Steel, Super Alloy |
Shipping Info:
| Ship weight (kg) | 0.81 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Milling Dia. | Shank Dia. | List Number | Overall Length | Corner Radius | Cutting Length | Neck Length | Neck Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
38255311 | 1" | 1" | 3825 | 5" | 3/32" | 2 3/4" | 2 3/4" | 61/64" | €1,119.56 | |
 |
38305411 | 1" | 1" | 3830 | 5" | 3/32" | 2 3/4" | 2 3/4" | 61/64" | €1,056.18 | |
|
38303011 | 1/2" | 1/2" | 3830 | 3 1/2" | 1/64" | 1 3/4" | 1 3/4" | 31/64" | €356.98 | |
|
38252911 | 1/2" | 1/2" | 3825 | 3 1/2" | 1/64" | 1 3/4" | 1 3/4" | 31/64" | €378.41 | |
|
38154911 | 1" | 1" | 3815 | 5" | 3/32" | 2" | - | - | €981.97 | |
|
38152511 | 1/2" | 1/2" | 3815 | 3 1/2" | 1/64" | 1" | - | - | €344.00 | |
|
38202611 | 1/2" | 1/2" | 3820 | 3 1/2" | 1/64" | 1" | - | - | €324.52 |
