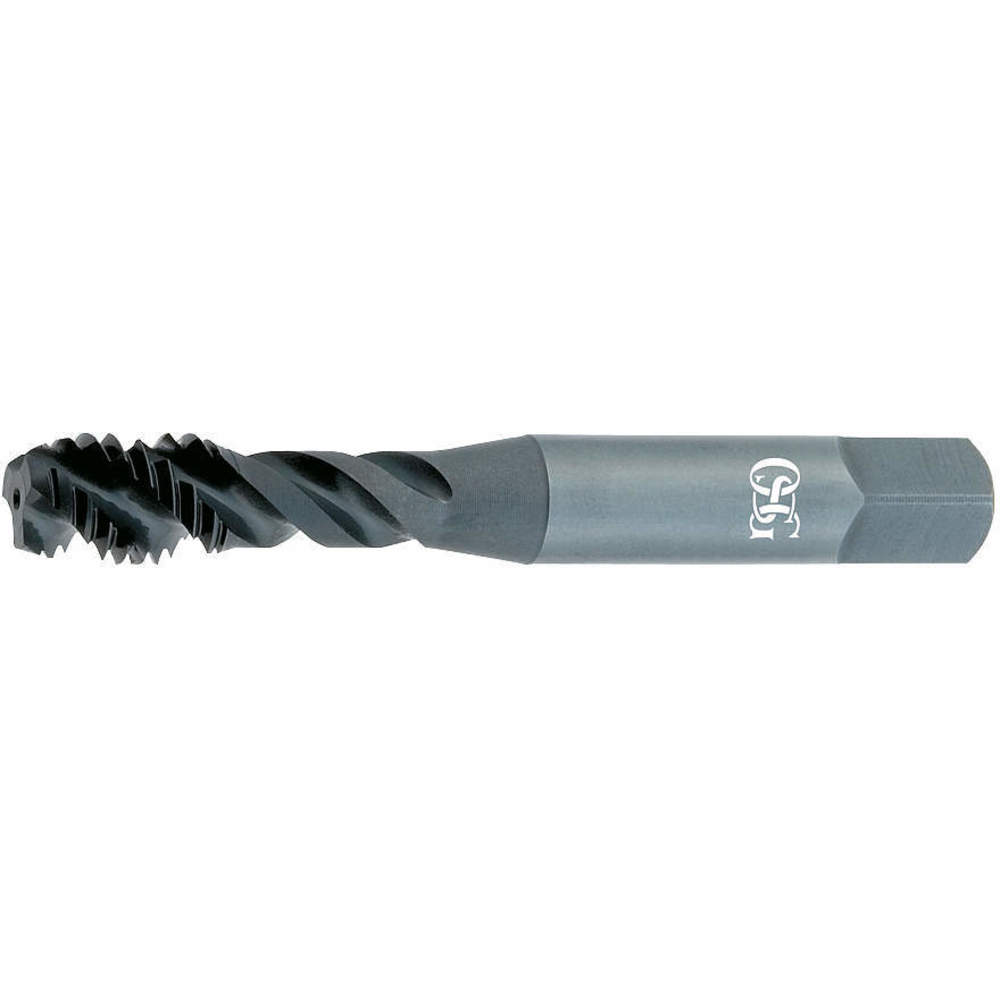

OSG 34301201 Screw Thread Insert STI Tap, M18x2.5 Thread Size, 25 mm Thread Lg, 119 mm Overall Lg
Item: AG4HJTModel: 34301201Cross Ref: 33ZF02
7 In Stock
Ships within 2 days via
€272.32 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spiral Flute Tap |
| 55% Thread Drill Size | 16.2 mm |
| 65% Thread Drill Size | 5/8" |
| 75% Thread Drill Size | 15.5 mm |
| Coolant Fed | Non Coolant Through |
| Extended Neck | Yes |
| Finish | Black Oxide |
| List Number | 343STI |
| Material Grade-machining | Grade 343STI |
| Measurement System | Metric |
| No. Of Flutes | 4 |
| Overall Length | 119 mm |
| Pitch Dia. Limits | D5 |
| Pitch Type | 2.5 mm |
| Primary Material Application | Stainless Steel, Steel |
| Primary Material Application Iso Code | M, P |
| Shank Dia. | 17.7 mm |
| Shank Length | 52 mm |
| Shank Type-machining | Straight |
| Size | M18 |
| Square Size | 13.28 mm |
| Tap Chamfer | Modified Bottoming |
| Tap Finish | Black Oxide |
| Tap Material | High Speed Steel |
| Tap Style | Spiral Flute |
| Tap Thread Size | M18 x 2.5 |
| Tap Type | Modified Bottom |
| Thread Direction | Right Hand |
| Thread Length | 25 mm |
| Thread Limit | D5 |
| Thread Pitch | 2.5 mm |
| Thread Size | M18 x 2.5 |
| Thread Standard | Metric Coarse |
| Thread Type | STI |
Shipping Info:
| Ship weight (kg) | 0.19 |
| Ship height (cm) | 2.29 |
| Ship length (cm) | 12.7 |
| Ship width (cm) | 2.29 |
| HS code | 8207400000 |
| Country of Origin | BR |
Product Variants
| Model | Thread Size | Overall Length | 75% Thread Drill Size | Thread Limit | Shank Dia. | Thread Standard | Shank Length | Square Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 34300101 | M2 x 0.4 | 46 mm | 1.6 mm | D2 | 3.58 mm | Metric Coarse | 32 mm | 2.79 mm | €85.51 | |
| 34300201 | M2.5 x 0.45 | 49 mm | #46 | D2 | 3.58 mm | Metric Coarse | 33 mm | 2.79 mm | €75.57 | |
| 34300301 | M3 x 0.5 | 50 mm | 2.5 mm | D2 | 3.58 mm | Metric | 32 mm | 2.79 mm | €52.46 | |
| 34300401 | M4 x 0.7 | 60 mm | 3.3 mm | D3 | 4.92 mm | Metric Coarse | 38 mm | 3.86 mm | €52.46 | |
| 34300501 | M5 X 0.8 | 63 mm | 4.2 mm | D3 | 6.47 mm | Metric | 37 mm | 4.85 mm | €51.70 | |
| 34300601 | M6 x 1 | 69 mm | 5 mm | D3 | 8.07 mm | Metric Coarse | 40 mm | 6.05 mm | €57.09 | |
| 34300701 | M8 x 1.25 | 74 mm | H | D3 | 9.67 mm | Metric Coarse | 42 mm | 7.26 mm | €63.41 |
