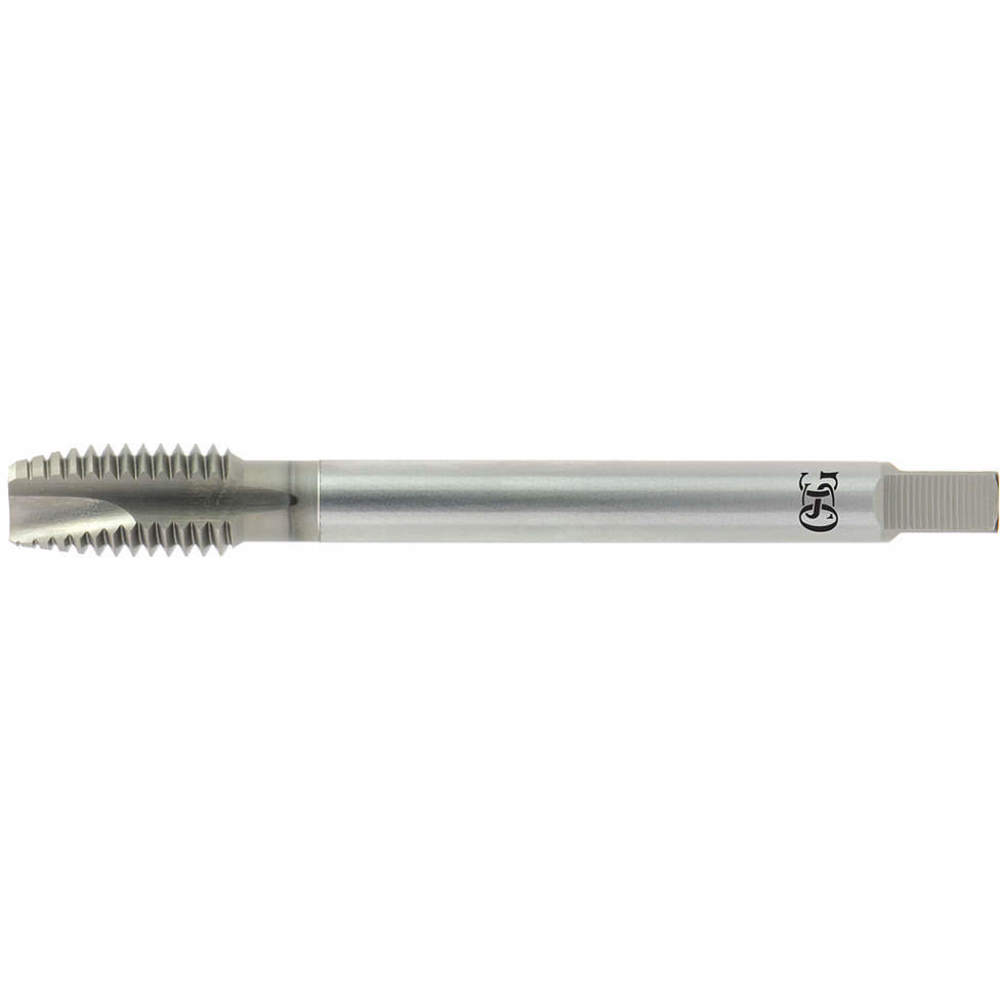

OSG 3380022258 Spiral Point Tap Plug 22x2.50mm Hr
Item: AG4BTVModel: 3380022258Cross Ref: 33XT56
7 In Stock
Ships within 2 days via
10.00% off
€741.82 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spiral Point Tap |
| 55% Thread Drill Size | 51/64" |
| 65% Thread Drill Size | 25/32" |
| 75% Thread Drill Size | 19.5 mm |
| Coolant Fed | Non Coolant Through |
| Drill Bit Size | 19.40 mm, 19.56 mm, 19.73 mm, 19.89 mm, 20.05 mm |
| Extended Neck | Yes |
| Finish | Hot Rolled |
| List Number | 338NI |
| Measurement System | Metric |
| Number Of Flutes | 3 |
| Overall Length | 140 mm |
| Pitch Diameter Limits | D8 |
| Pitch Type | 2.5 mm |
| Primary Material Application | Nickel, Titanium |
| Primary Material Application Iso Code | S |
| Shank Dia. | 17.7 mm |
| Shank Length | 96 mm |
| Shank Type - Machining | Straight |
| Size | M22 |
| Spiral Direction | Neutral |
| Square Size | 13.28 mm |
| Tap Chamfer | Plug |
| Tap Finish | HR |
| Tap Length Standard | DIN |
| Tap Material | VC 10 |
| Tap Shank Standard | ANSI |
| Tap Thread Size | M22 x 2.5 |
| Tap Type | Plug |
| Thread Direction | Right Hand |
| Thread Length | 30 mm |
| Thread Limit | D8 |
| Thread Limit/class Of Fit | D8 |
| Thread Pitch | 2.5 mm |
| Thread Size | M22 x 2.5 |
| Thread Standard | Metric Coarse |
| Thread Type | Metric Coarse |
Shipping Info:
| Ship weight (kg) | 0.27 |
| Ship height (cm) | 3.18 |
| Ship length (cm) | 13.34 |
| Ship width (cm) | 3.18 |
| HS code | 8207400000 |
Product Variants
| Model | Thread Length | Overall Length | Number Of Flutes | Thread Size | 75% Thread Drill Size | Thread Limit | Size | Pitch Diameter Limits | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 3380003053 | 16 mm | 56 mm | 3 | M3 x 0.5 | 2.5 mm | D3 | M3 | D3 | €126.55 | |
| 3380004074 | 19 mm | 63 mm | 3 | M4 x 0.7 | 3.3 mm | D4 | M4 | D4 | €102.86 | |
| 3380005084 | 22 mm | 70 mm | 3 | M5 X 0.8 | 4.2 mm | D4 | M5 | D4 | €108.47 | |
| 3380006105 | 25 mm | 80 mm | 3 | M6 x 1 | 5 mm | D5 | M6 | D5 | €134.97 | |
| 3380006755 | 20 mm | 62 mm | 3 | - | - | - | M6 | D5 | €134.97 | |
| 3380008105 | 15 mm | 90 mm | 3 | M8 x 1 | 7 mm | D5 | M8 | D5 | €149.20 | |
| 3380008255 | 15 mm | 90 mm | 3 | M8 x 1.25 | H | D5 | M8 | D5 | €149.20 |
